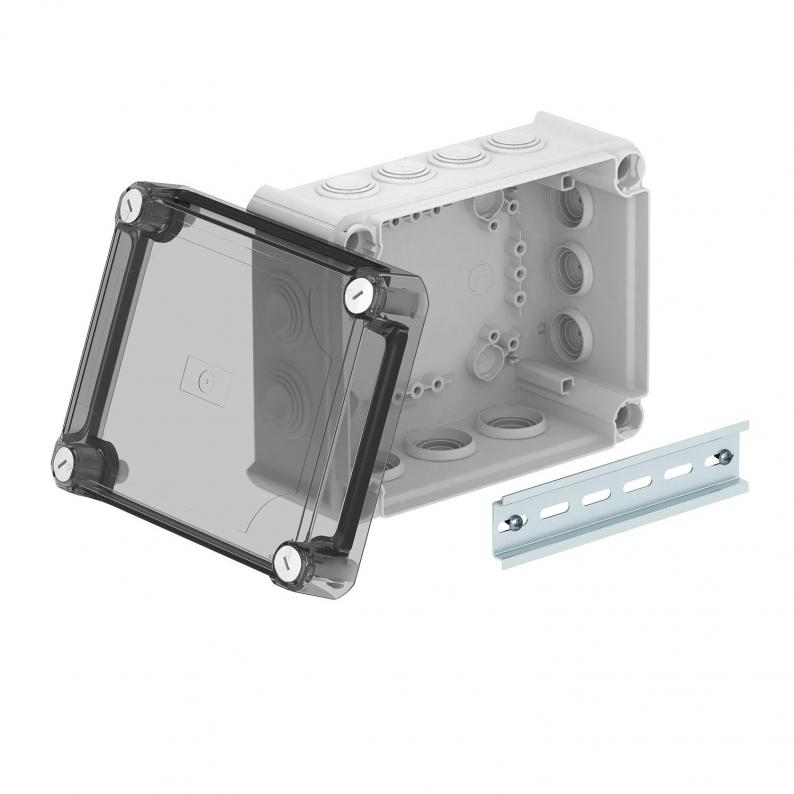

Junction box T160, with plug-in seal, transparent elevated cover

Junction box T160, with plug-in seal, transparent elevated cover

Type T 160 HD TR | Item no. 2007754 | EAN 4012195985952

Show all variants
Item no. / Type
2007754 / T 160 HD TR
No. of entries
12
Protection rating
IP66
Colour
Light grey; RAL 7035

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. High, transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

With hat profile rail.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK05 according to DIN EN 50102.
Clear internal dimensions: 176x135x84 mm
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • M25 entry
  • M32 entry
  • 12 cable entries
  • Nominal voltage 500 V
  • Nominal cross-section 16 mm²
  • gas-/battery-actuated setting tool
  • IK Code 05
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

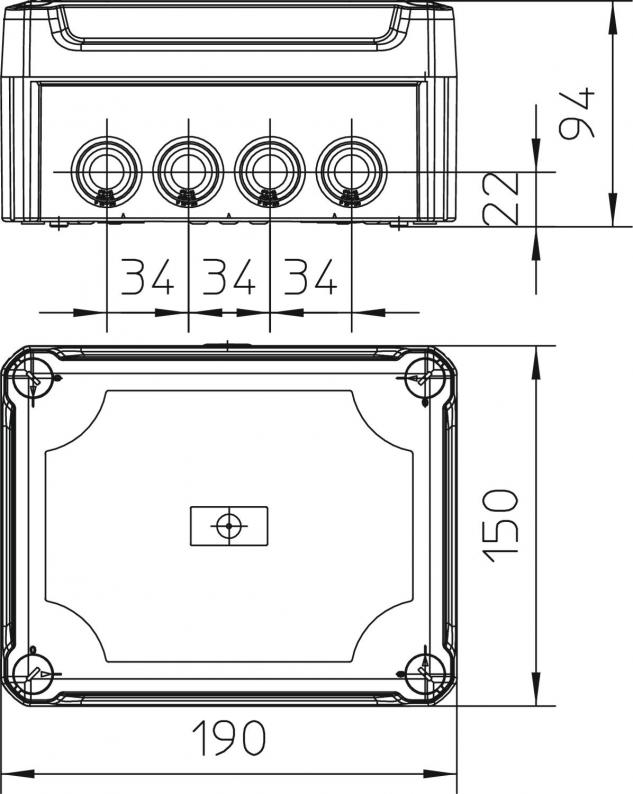

Dimensions

Length190 mm
Width150 mm
Height94 mm
Clear internal dimensions176x135x84 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
Fibre-glass reinforcedyes
No. of entries12
Entry from rearyes
Transparent lidno
Protection ratingIP66
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationMiscellaneous
With screeningno
Weatherproofno
Protection rating IK codeIK05.
For Ex zone gasWithout
For Ex zone dustWithout
ShapeRectangular
EquipmentWithout
CoverTransparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Entries<TEXT><P>7xM25</P><P>5xM32</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension190x150x94
MaterialPolypropylene / polycarbonate
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate1,6554 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Certificates (2)
Product images (2)
Tender specifications (2)

Variants

T 160 HD TR
Item no.
2007754
Clear internal dimensions
176x135x84
No. of entries
12
Protection rating
IP66
Colour
Light grey; RAL 7035
