Junction box T100, with plug-in seal, transparent elevated cover

Junction box T100, with plug-in seal, transparent elevated cover

Type T 100 HD TR | Item no. 2007752 | EAN 4012195985945

Show all variants
Item no. / Type
2007752 / T 100 HD TR
No. of entries
10
Protection rating
IP66
Colour
Light grey; RAL 7035

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

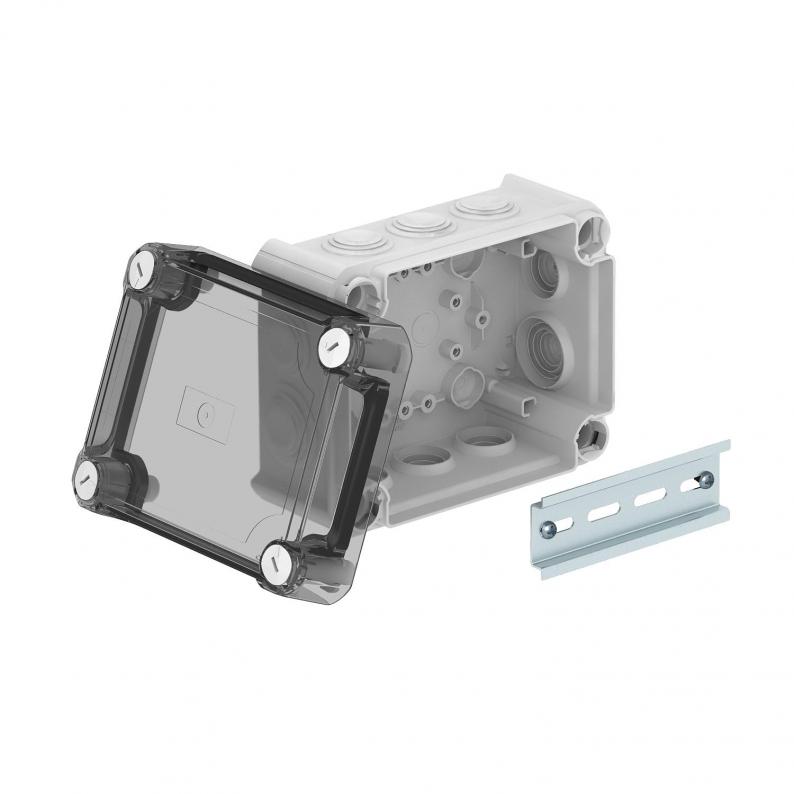

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. High, transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

With hat profile rail.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
Clear internal dimensions: 136x102x74 mm
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • M25 entry
  • 10 cable entries
  • Nominal voltage 500 V
  • Nominal cross-section 10 mm²
  • gas-/battery-actuated setting tool
  • IK Code 07
  • CO₂ footprint (PCF)

Technical data

Dimensions

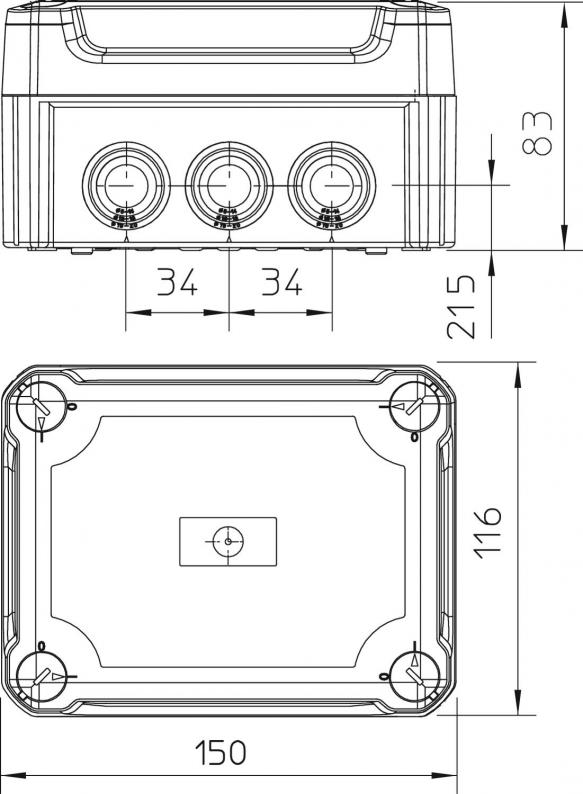

Length150 mm
Width116 mm
Height83 mm
Clear internal dimensions136x102x74 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
No. of entries10
Entry from rearyes
Transparent lidno
Protection ratingIP66
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationMiscellaneous
With screeningno
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
ShapeRectangular
EquipmentWithout
CoverTransparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Entries<TEXT><P>10xM25</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension150x116x83
MaterialPolypropylene / polycarbonate
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate1,2894 kg CO₂e / 1 Piece
