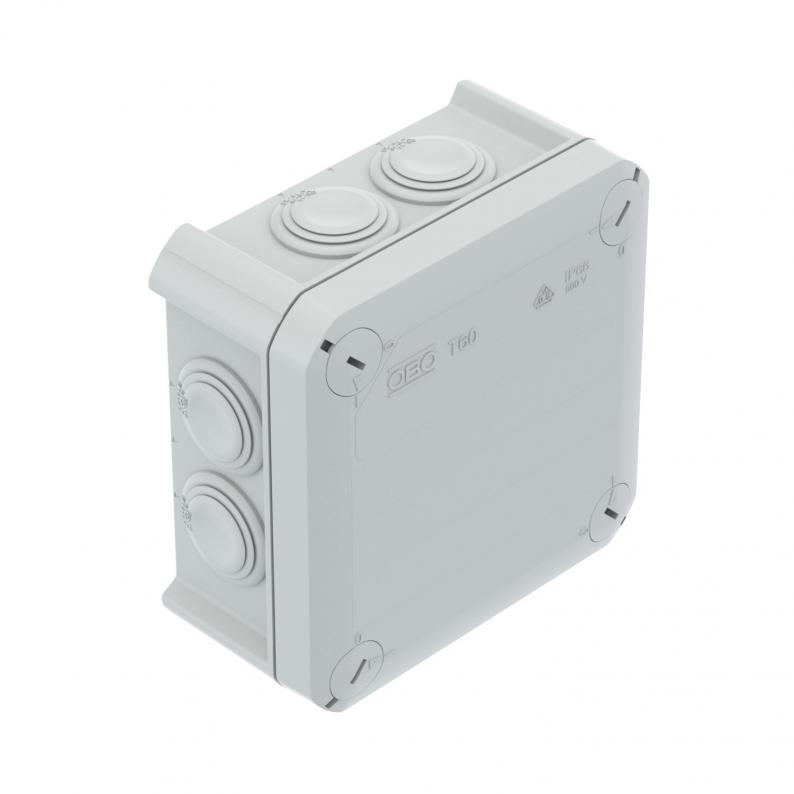

Junction box T 60, plug-in seal

Junction box T 60, plug-in seal

Type T 60 | Item no. 2007061 | EAN 4012195246787

Show all variants
Item no. / Type
Clear internal dimensions
Colour
No. of entries
7
Protection rating
IP66

Smallest selling unit: 5 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Square design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • M25 entry
  • Nominal cross-section 6 mm²
  • 7 cable entries
  • gas-/battery-actuated setting tool
  • Nominal voltage 500 V
  • IK Code 07
  • CO₂ footprint (PCF)

Technical data

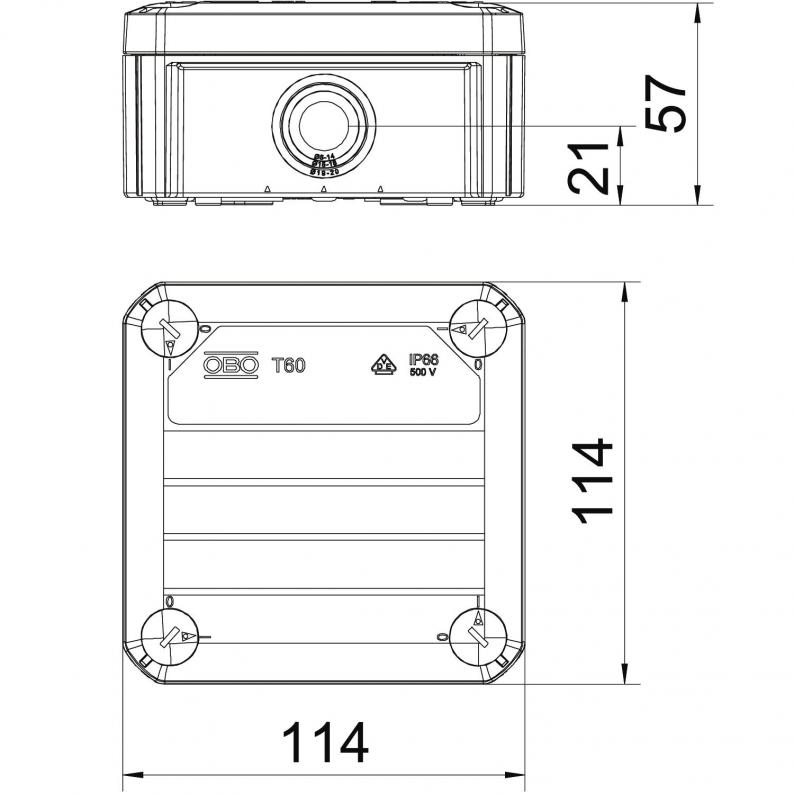

Dimensions

Length114 mm
Width114 mm
Height57 mm
Clear internal dimensions100x100x48 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
Fibre-glass reinforcedno
No. of entries7
Entry from rearyes
Transparent lidno
Protection ratingIP66
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationCuttable stepped membrane
With screeningno
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.6 mm²
ShapeSquare
EquipmentWithout
CoverNot transparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Entries<TEXT><P>7 x M25</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension114x114x57
MaterialPolypropylene
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,5155 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Certificates (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Type
BE TS GR

Smallest selling unit: 10 piece

Type
BE TS KR

Smallest selling unit: 10 piece

Type
BE TS KR

Smallest selling unit: 10 piece

Variants

Colour
T 60 SW
Item no.
2007466
Clear internal dimensions
100x100x48
No. of entries
7
Protection rating
IP66
Colour
Graphite black; RAL 9011
T 60
Item no.
2007061
Clear internal dimensions
100x100x48
No. of entries
7
Protection rating
IP66
Colour
Light grey; RAL 7035
T 60 RW
Item no.
2007525
Clear internal dimensions
100x100x48
No. of entries
7
Protection rating
IP66
Colour
Pure white; RAL 9010
T 60 RO-LGR
Item no.
2007638
Clear internal dimensions
100x100x48
No. of entries
7
Protection rating
IP66
Colour
Grey / red
