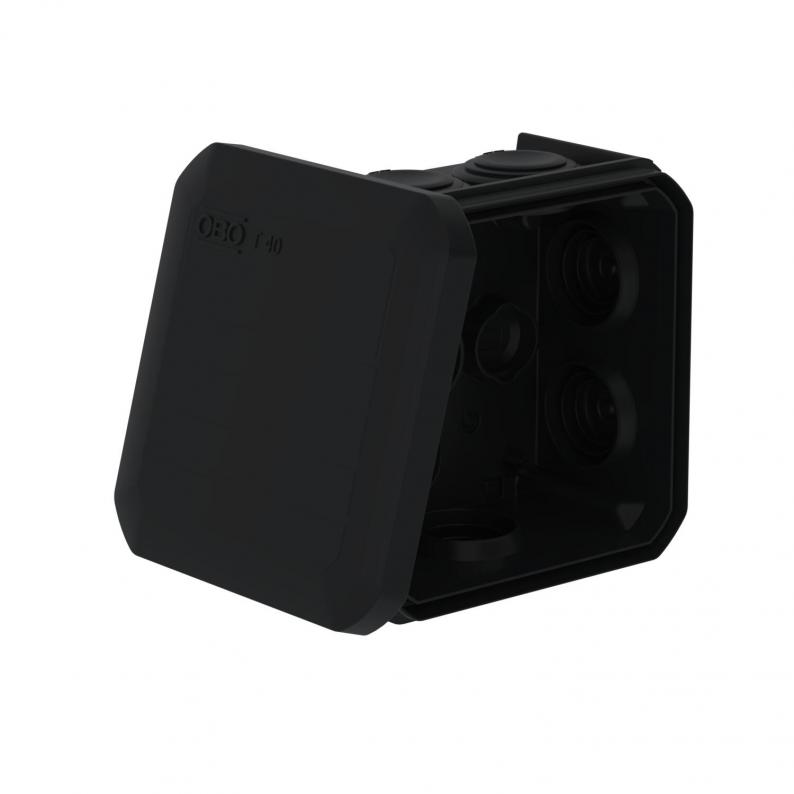

Junction box T 40, plug-in seal

Junction box T 40, plug-in seal

Type T 40 SW | Item no. 2007464 | EAN 4012197354565

Show all variants
Item no. / Type
2007464 / T 40 SW
No. of entries
7
Protection rating
IP56
Colour
Graphite black; RAL 9011

Smallest selling unit: 5 piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box for the connection of cables indoors and in protected outdoor areas. Square design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside. With fixed clamping cover. Made from halogen-free, UV-resistant materials.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • M25 entry
  • Nominal cross-section 4 mm²
  • 7 cable entries
  • gas-/battery-actuated setting tool
  • Nominal voltage 500 V
  • IK Code 07
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

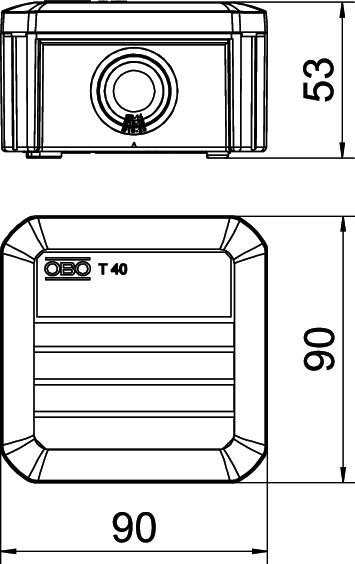

Dimensions

Length90 mm
Width90 mm
Height52 mm
Clear internal dimensions77x77x46 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
Fibre-glass reinforcedno
No. of entries7
Entry from rearyes
Transparent lidno
Protection ratingIP56
Nominal voltage500 V
Expandableyes
with lidyes
Sealableno
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationCuttable stepped membrane
With screeningno
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.4 mm²
ShapeSquare
CoverNot transparent
Cover fasteningLocking
Mounting typeWall/ceiling mounting
Entries<TEXT><P>7 x M25</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension90x90x52
MaterialPolypropylene
ColourGraphite black; RAL 9011
CO2 Footprint (GWP) Cradle-to-Gate0,2733 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (7)
Declarations (4)
Certificates (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

T 40 SW
Item no.
2007464
Clear internal dimensions
77x77x46
No. of entries
7
Protection rating
IP56
Colour
Graphite black; RAL 9011
