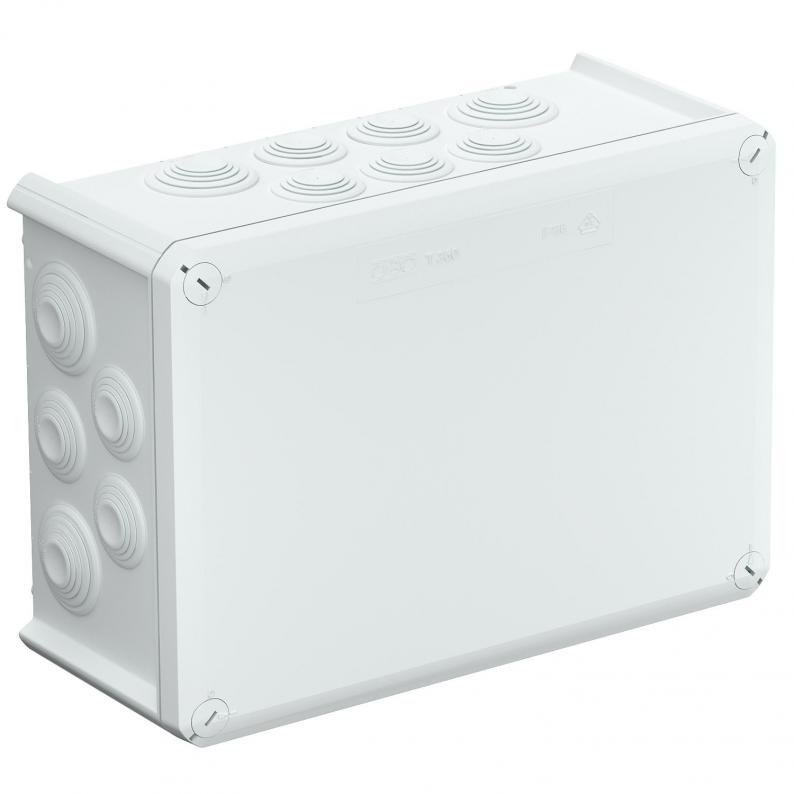

Junction box T 350, plug-in seal

Junction box T 350, plug-in seal

Type T 350 | Item no. 2007125 | EAN 4012195246824

Show all variants
Item no. / Type
Clear internal dimensions
Colour
No. of entries
24
Protection rating
IP66

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK05 according to DIN EN 50102.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • M32 entry
  • M40 entry
  • Nominal cross-section 35 mm²
  • 24 cable entries
  • Nominal voltage 500 V
  • IK Code 05
  • CO₂ footprint (PCF)

Technical data

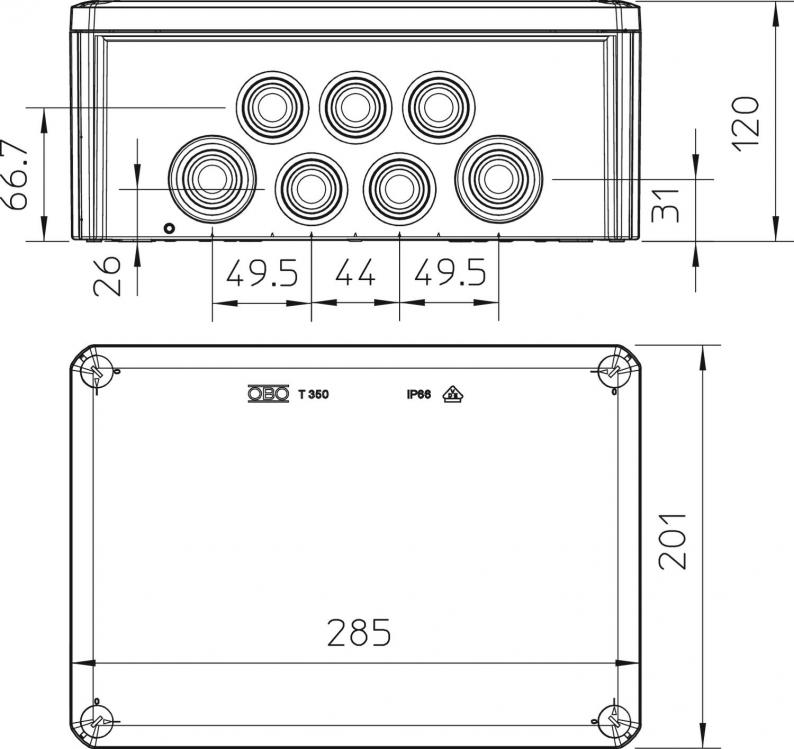

Dimensions

Length285 mm
Width201 mm
Height120 mm
Clear internal dimensions267x182x110 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
Fibre-glass reinforcedyes
No. of entries24
Entry from rearyes
Transparent lidno
Protection ratingIP66
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationCuttable stepped membrane
With screeningno
Weatherproofno
Protection rating IK codeIK05.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.35 mm²
ShapeRectangular
EquipmentWithout
CoverNot transparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Entries<TEXT><P>16 x M32</P><P>8 x M40</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension285x201x120
MaterialPolypropylene, fibreglass reinforced
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate2,7525 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Certificates (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
T 350
Item no.
2007125
Clear internal dimensions
267x182x110
No. of entries
24
Protection rating
IP66
Colour
Light grey; RAL 7035
T 350 RW
Item no.
2007568
Clear internal dimensions
267x182x110
No. of entries
24
Protection rating
IP66
Colour
Pure white; RAL 9010
