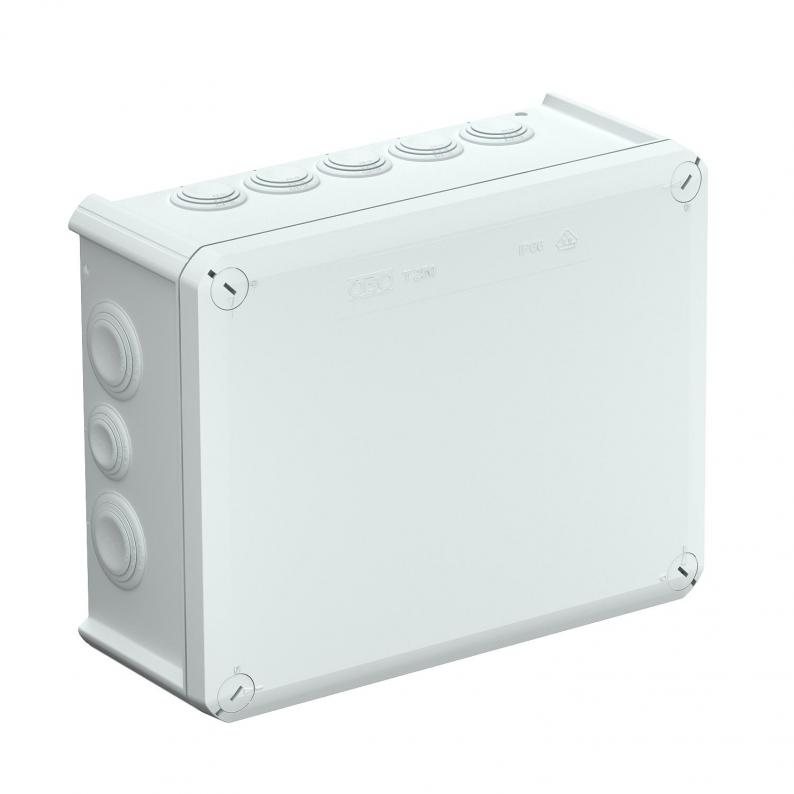

Junction box T 250, plug-in seal

Junction box T 250, plug-in seal

Type T 250 | Item no. 2007109 | EAN 4012195246817

Show all variants
Item no. / Type
Clear internal dimensions
Colour
No. of entries
16
Protection rating
IP66

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting, on mounting panels and threads in the floor. With the option to fasten inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials. Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK05 according to DIN EN 50102.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • M25 entry
  • M32 entry
  • Nominal cross-section 25 mm²
  • 16 cable entries
  • Nominal voltage 500 V
  • IK Code 05
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length240 mm
Width190 mm
Height95 mm
Clear internal dimensions225x173x86 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
Fibre-glass reinforcedyes
No. of entries16
Entry from rearyes
Transparent lidno
Protection ratingIP66
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationCuttable stepped membrane
With screeningno
Weatherproofno
Protection rating IK codeIK05.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.25 mm²
ShapeRectangular
EquipmentWithout
CoverNot transparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Entries<TEXT><P>9 x M25</P><P>7 x M32</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension240x190x95
MaterialPolypropylene, fibreglass reinforced
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate1,8417 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Certificates (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
T 250
Item no.
2007109
Clear internal dimensions
225x173x86
No. of entries
16
Protection rating
IP66
Colour
Light grey; RAL 7035
T 250 RW
Item no.
2007554
Clear internal dimensions
225x173x86
No. of entries
16
Protection rating
IP66
Colour
Pure white; RAL 9010
T 250 RO-LGR
Item no.
2007657
Clear internal dimensions
225x173x86
No. of entries
16
Protection rating
IP66
Colour
Grey / red
