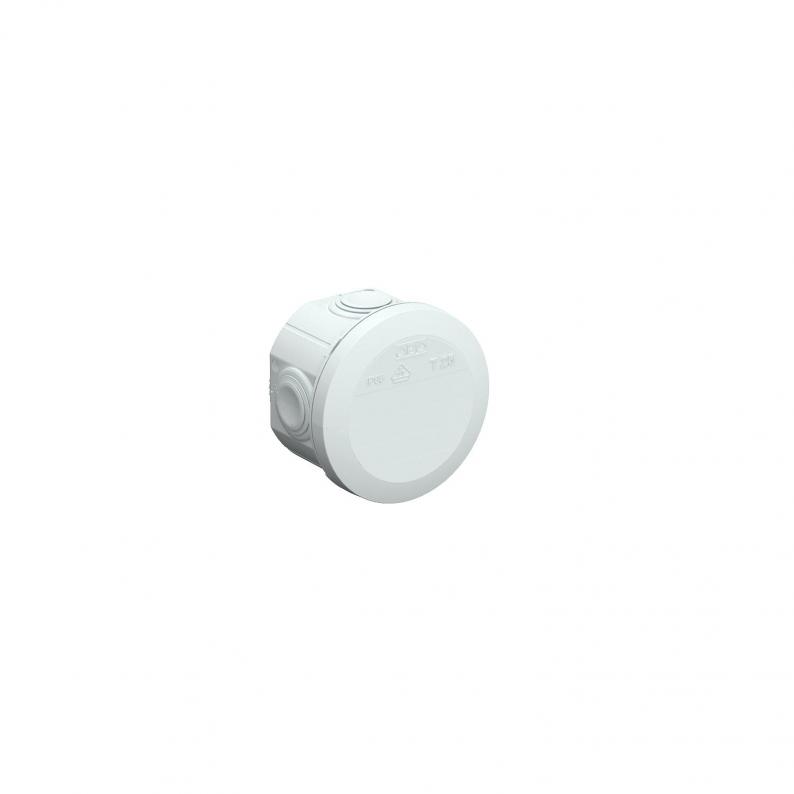

Junction box T 25, plug-in seal

Junction box T 25, plug-in seal

Type T 25 | Item no. 2007029 | EAN 4012195246770

Show all variants
Item no. / Type
Clear internal dimensions
Colour
No. of entries
4
Protection rating
IP65

Smallest selling unit: 5 piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Round design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting, on mounting panels and threads in the floor. With the option to fasten inside. With fixed clamping cover. Made from halogen-free and UV-resistant materials. Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 65
  • M25 entry
  • Nominal cross-section 2.5 mm²
  • 4 cable entries
  • gas-/battery-actuated setting tool
  • Nominal voltage 500 V
  • IK Code 07
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

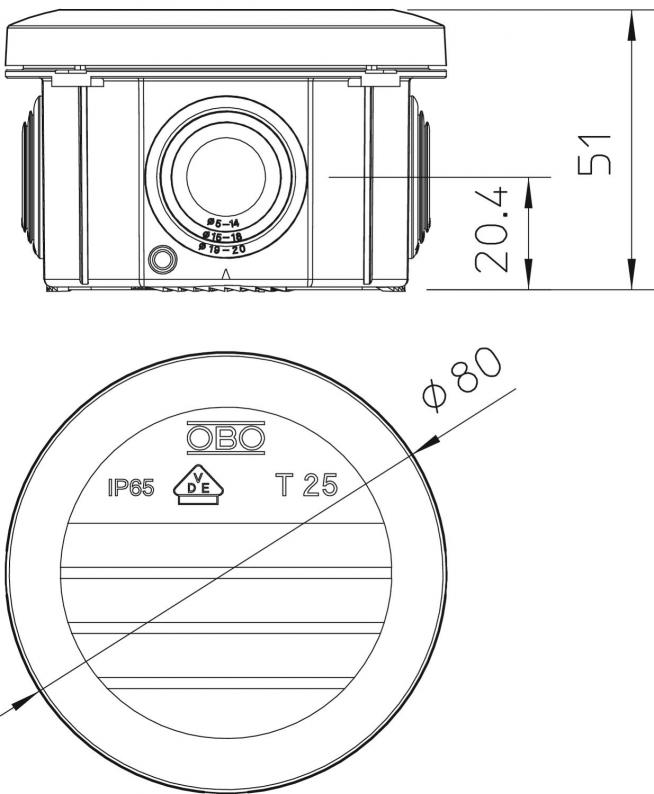

Dimensions

Length80 mm
Width80 mm
Height51 mm
Clear internal dimensionsØ63x45 mm

Technical data

Type of entryPlug-in seal
Diameter80 mm
Halogen-freeyes
Fibre-glass reinforcedno
No. of entries4
Strain relief optionno
Entry from rearyes
Transparent lidno
Protection ratingIP65
Nominal voltage500 V
Expandableyes
with lidyes
Sealableno
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationCuttable stepped membrane
With screeningno
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.2,5 mm²
ShapeRound
EquipmentWithout
CoverNot transparent
Cover fasteningLocking
Mounting typeWall/ceiling mounting
Entries<TEXT><P>4 x M25</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
DimensionØ80x51
MaterialPolypropylene
ColourLight grey; RAL 7035
Junction box cover versionBlanking lid
CO2 Footprint (GWP) Cradle-to-Gate0,1609 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Certificates (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
T 25
Item no.
2007029
Clear internal dimensions
Ø63x45
No. of entries
4
Protection rating
IP65
Colour
Light grey; RAL 7035
T 25 RW
Item no.
2007509
Clear internal dimensions
Ø63x45
No. of entries
4
Protection rating
IP65
Colour
Pure white; RAL 9010
