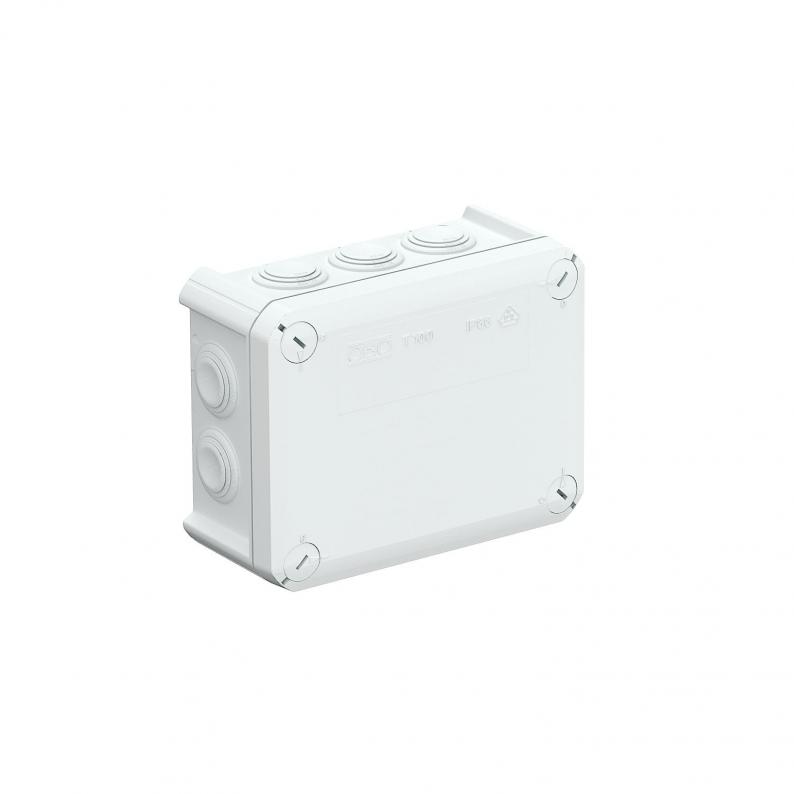

Junction box T 100, plug-in seal, flame-resistant

Junction box T 100, plug-in seal, flame-resistant

Type T 100 F | Item no. 2007347 | EAN 4012195286547

Show all variants
Item no. / Type
2007347 / T 100 F
No. of entries
10
Protection rating
IP66
Colour
Light grey; RAL 7035

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Rectangular design with plug-in seals to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free materials. Flame-resistant type made from special polypropylene.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 960 °C. Impact resistance IK07 according to DIN EN 50102.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • M25 entry
  • Nominal cross-section 10 mm²
  • 10 cable entries
  • Nominal voltage 500 V
  • IK Code 07
  • CO₂ footprint (PCF)

Technical data

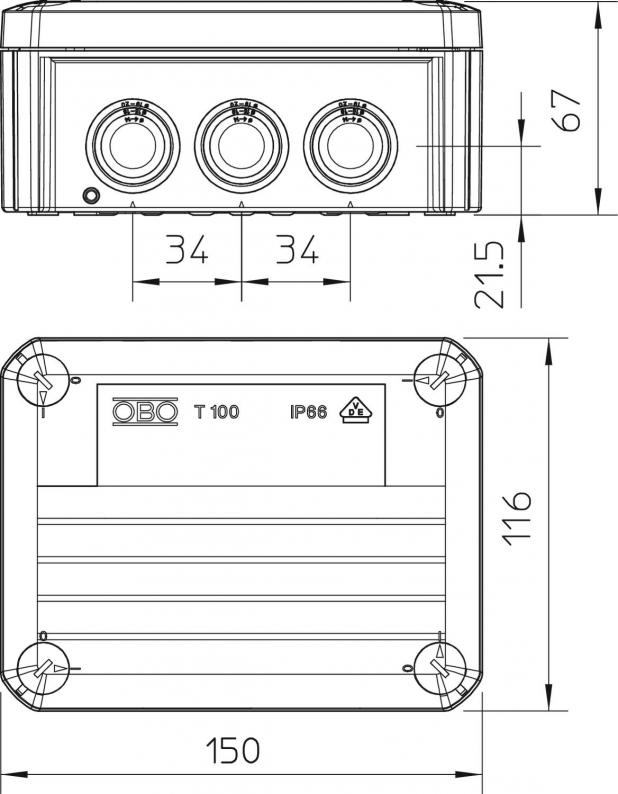

Dimensions

Length150 mm
Width116 mm
Height67 mm
Clear internal dimensions136x102x57 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
No. of entries10
Entry from rearyes
Transparent lidno
Protection ratingIP66
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationCuttable stepped membrane
With screeningno
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.10 mm²
ShapeRectangular
EquipmentWithout
CoverNot transparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Entries<TEXT><P>10 x M25</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantAcc. to VDE 0471/DIN 695 Part 2-1, test temperature 960 °C
Dimension150x116x67
MaterialPolypropylene
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,7695 kg CO₂e / 1 Piece
