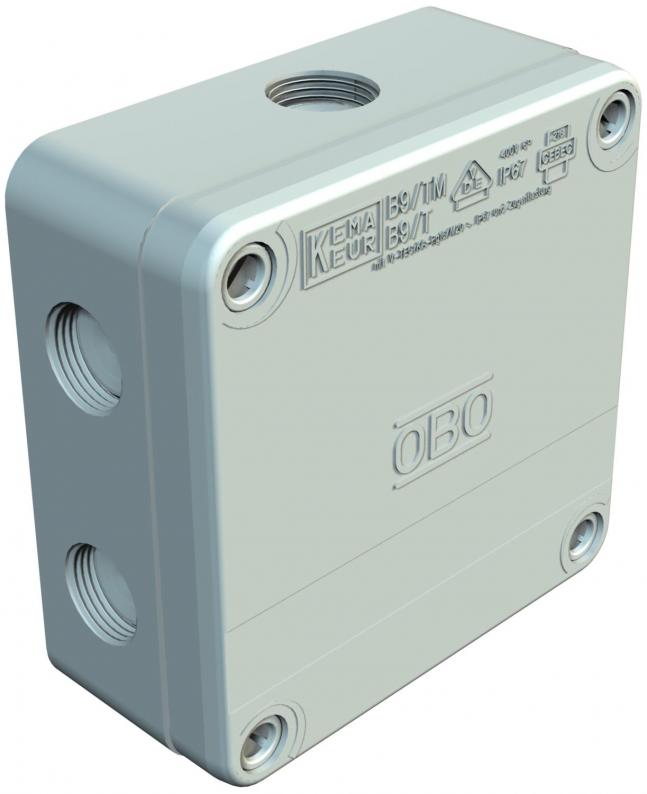

Junction box B 9 T, perforation membrane, with cable gland, metric
Type B 9 T M NL | Item no. 2001861 | EAN 4012195539896
Item no. / Type
2001861 / B 9 T M NL
No. of entries
9
Protection rating
IP67
Colour
Light grey; RAL 7035
Smallest selling unit: 5 piece
5piece
Description
The B9/T... wet-room junction box comprises two different halogen-free plastic components, 2 additional entries in base with push-through membrane
(for cable diameter up to 15 mm)
with perforation membrane (for cable diameters up to 15 mm) in the floor area.
Where cable glands are used (giving additional strain relief) there is no need to remove the membrane (this saves time). Protection rating IP67 with perforation membrane and with cable gland without the removal of the perforation membrane.
Nominal voltage 400 V; nominal cross-section 4 ÷ 6 mm²
The cover is secured with 4 pre-fitted, captured quick cover fastenings (180°) and can be sealed.
The fastening holes are additionally moulded with a soft plastic component, for a 5 mm bolt diameter (75 mm spacing). Clear internal dimensions 98x98x40
(for cable diameter up to 15 mm)
with perforation membrane (for cable diameters up to 15 mm) in the floor area.
Where cable glands are used (giving additional strain relief) there is no need to remove the membrane (this saves time). Protection rating IP67 with perforation membrane and with cable gland without the removal of the perforation membrane.
Nominal voltage 400 V; nominal cross-section 4 ÷ 6 mm²
The cover is secured with 4 pre-fitted, captured quick cover fastenings (180°) and can be sealed.
The fastening holes are additionally moulded with a soft plastic component, for a 5 mm bolt diameter (75 mm spacing). Clear internal dimensions 98x98x40
Technical data
Dimensions
| Length | 110 mm |
|---|---|
| Width | 110 mm |
| Height | 51 mm |
| Clear internal dimensions | 98x98x40 mm |
Technical data
| Type of entry | Cable/gland |
|---|---|
| Halogen-free | yes |
| No. of entries | 9 |
| Entry from rear | yes |
| Protection rating | IP67 |
| Nominal voltage | 400 V |
| Expandable | yes |
| with lid | yes |
| Sealable | yes |
| For Ex zone | Without |
| Measured insulation voltage Vi | 400 V |
| Maintain electrical functions | Without |
| Explosion-tested version | no |
| Type of housing penetration | Thread and sealing membrane |
| Weatherproof | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Max. Conductor cross-section | 6 mm² |
| Nominal cross-section, max. | 6 mm² |
| Nominal cross-section, min. | 4 mm² |
| Shape | Square |
| Cover | Not transparent |
| Cover fastening | Screwed |
| Mounting type | Wall/ceiling mounting |
| Entries | <TEXT><P>2 additional entries in base with push-through membrane</P><P>(for cable diameter up to 15 mm)</P><P/></TEXT> |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C |
| Dimension | 110x110x50 |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7455 kg CO₂e / 1 Piece |
