Junction box A 18

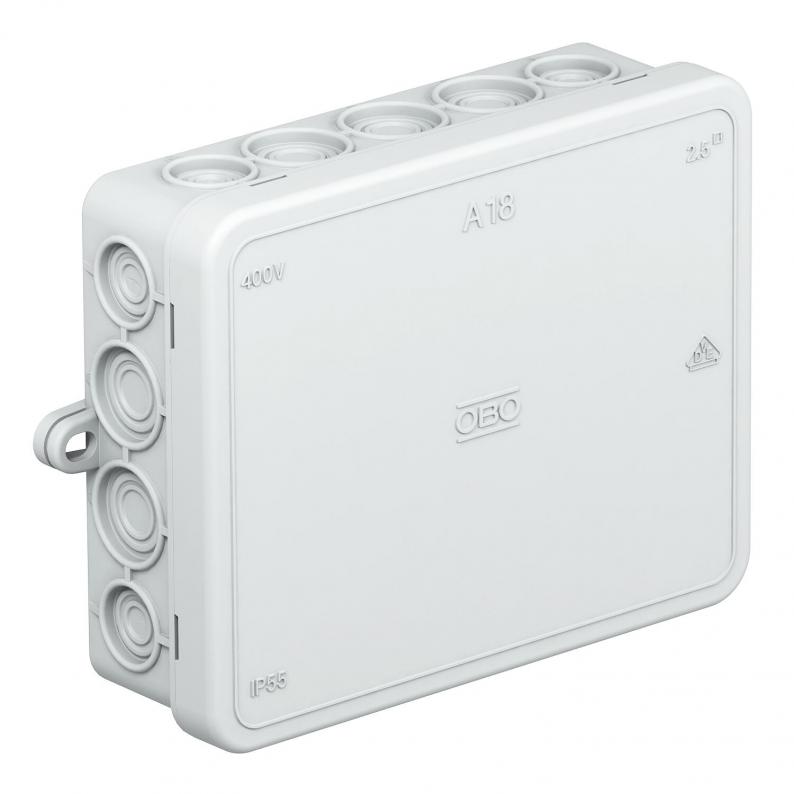

Junction box A 18

Type A 18 | Item no. 2000410 | EAN 4012195917137

Show all variants
Item no. / Type
Clear internal dimensions
Colour
No. of entries
18
Protection rating
IP55

Smallest selling unit: 10 piece

DescriptionTechnical dataDownloadsVariants

Description

Protection rating IP55, rated voltage 690 V, nominal cross-section 2.5 mm², 10 entries for cable diameter 5‒14 mm

8 entries for cable diameter 5‒11 mm.

Clamshell.

Dimensions: 125 x 100 x 40 mm

Clear internal dimensions: 115 x 90 x 35 mm

1 cut-out tool for every 10 boxes
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • IK Code 07
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 55
  • Nominal cross-section 2.5 mm²
  • 18 cable entries ECO
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length125 mm
Width100 mm
Height40 mm
Clear internal dimensions115x90x35 mm

Technical data

Type of entryCable
Halogen-freeyes
No. of entries18
Entry from rearno
Transparent lidno
Protection ratingIP55
Nominal voltage690 V
Expandableyes
with lidyes
Sealableno
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi690 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationPre-marking
With screeningno
Weatherproofno
For Ex zone gasWithout
For Ex zone dustWithout
Max. Conductor cross-section2,5 mm²
Nominal cross-section, min.2,5 mm²
ShapeSquare
EquipmentWithout
CoverNot transparent
Cover fasteningLocking
Mounting typeWall/ceiling mounting
Permitted temperature range, min.-5 °C
Permitted temperature range, max.45 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension125x100x38
MaterialPolyethylene
ColourLight grey; RAL 7035
Junction box cover versionBlanking lid
CO2 Footprint (GWP) Cradle-to-Gate0,2099 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
A 18
Item no.
2000410
Clear internal dimensions
115x90x35
No. of entries
18
Protection rating
IP55
Colour
Light grey; RAL 7035
A 18 HF RW
Item no.
2000422
Clear internal dimensions
115x90x35
No. of entries
18
Protection rating
IP55
Colour
Pure white; RAL 9010
