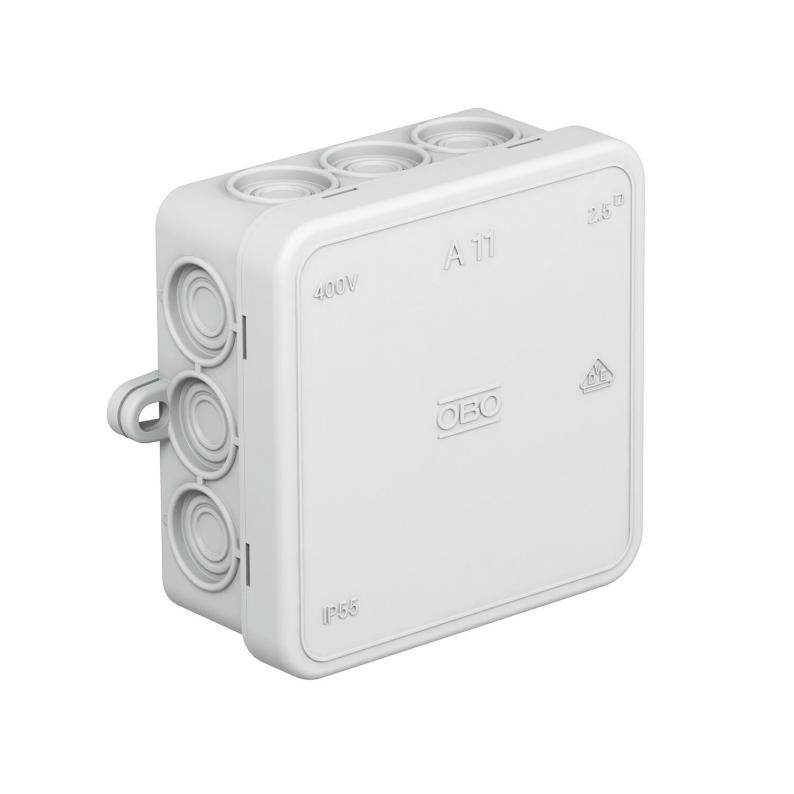

Junction box A 11

Junction box A 11

Type A 11 | Item no. 2000342 | EAN 4012195152170

Show all variants
Item no. / Type
Clear internal dimensions
Colour
No. of entries
12
Protection rating
IP55

Smallest selling unit: 10 piece

DescriptionTechnical dataDownloadsVariants

Description

Protection rating IP55, rated voltage 690 V, nominal cross-section 2.5 mm², 12 entries for cable diameters of 5‒14 mm.

Clamshell.

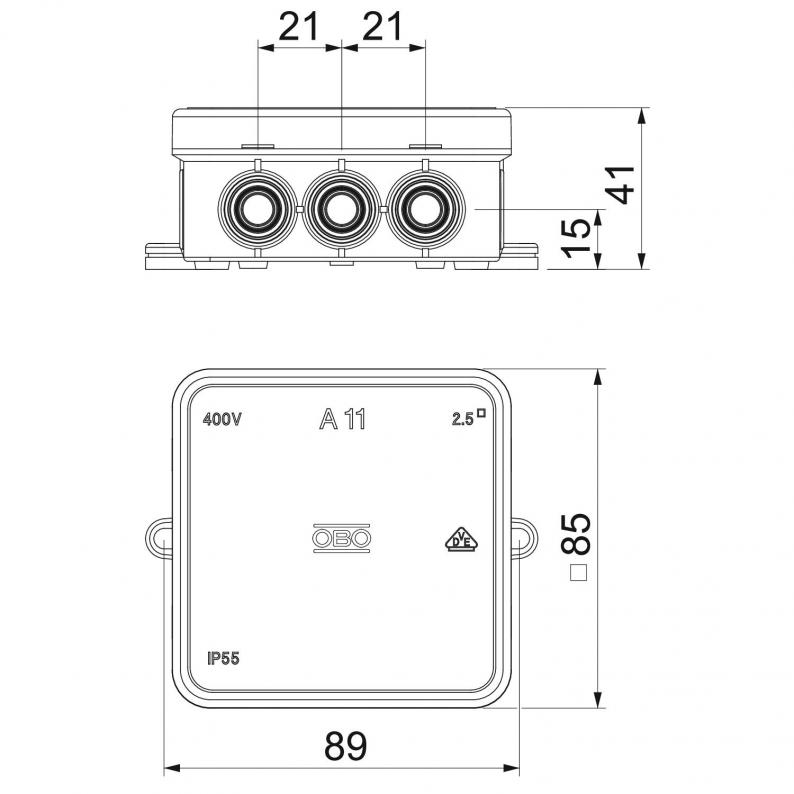

Dimensions: 85 x 85 x 40 mm

Clear internal dimensions: 75 x 75 x 35 mm

1 cut-out tool for every 10 boxes
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Flame resistant 650 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • IK Code 07
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 55
  • Nominal cross-section 2.5 mm²
  • 12 cable entries
  • gas-/battery-actuated setting tool
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length85 mm
Width85 mm
Height40 mm
Clear internal dimensions75x75x35 mm

Technical data

Type of entryCable
Halogen-freeyes
No. of entries12
Entry from rearno
Transparent lidno
Protection ratingIP55
Nominal voltage690 V
Expandableyes
with lidyes
Sealableno
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi690 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationPre-marking
With screeningno
Weatherproofno
for pipe diameter14 mm
For Ex zone gasWithout
For Ex zone dustWithout
Max. Conductor cross-section2,5 mm²
Nominal cross-section, min.2,5 mm²
ShapeSquare
EquipmentWithout
CoverNot transparent
Cover fasteningLocking
Mounting typeWall/ceiling mounting
Entries<TEXT><P>12 entries for cable diameter 5–14 mm</P></TEXT>
Permitted temperature range, max.45 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension85x85x40
MaterialPolyethylene
ColourLight grey; RAL 7035
Junction box cover versionBlanking lid
CO2 Footprint (GWP) Cradle-to-Gate0,1196 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
A11 HF SW
Item no.
2000182
Clear internal dimensions
75x75x35
No. of entries
12
Protection rating
IP55
Colour
Graphite black; RAL 9011
A 11 HF RO
Item no.
2000164
Clear internal dimensions
75x75x35
No. of entries
12
Protection rating
IP55
Colour
Red
A 11 HF RW
Item no.
2000180
Clear internal dimensions
75x75x35
No. of entries
12
Protection rating
IP55
Colour
Pure white; RAL 9010
A 11
Item no.
2000342
Clear internal dimensions
75x75x35
No. of entries
12
Protection rating
IP55
Colour
Light grey; RAL 7035
