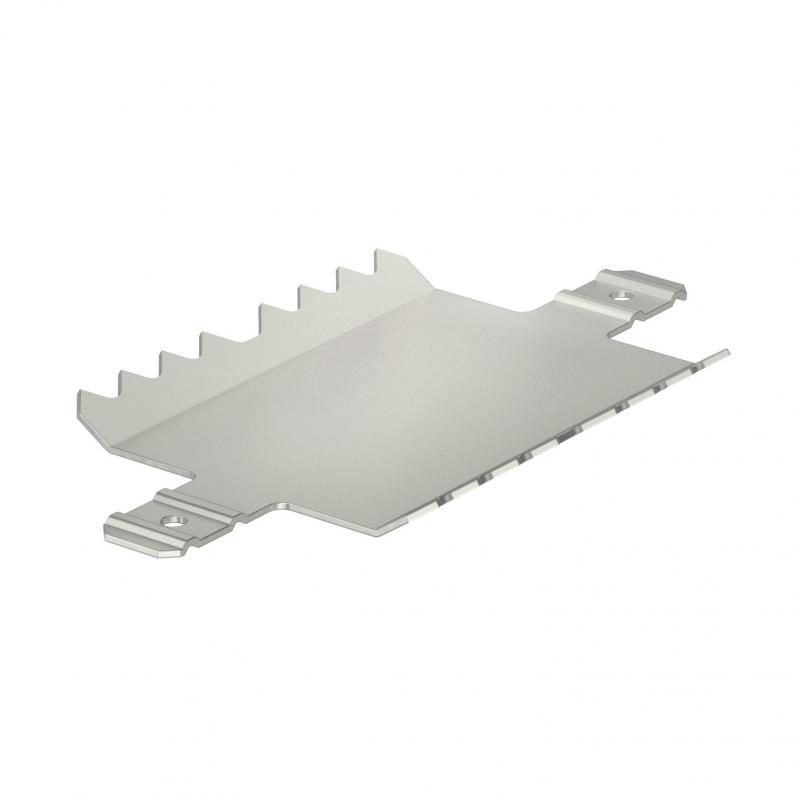

Joint connector LKM SV30

Type LKM SV30 | Item no. 6247434 | EAN 4012196118991

Item no. / Type

6247434 / LKM SV30

Surface

Bright, treated

Material

Stainless steel 1.4310

Colour

stainless steel

Smallest selling unit: 10 piece

Description

Joint connector to connect the bases. This creates the equipotential bonding between the duct bases.

Maintain electrical functions	yes
for duct dimension	20 x 30
Halogen-free	yes
Protection rating	IP30
With equipotential bonding	yes
Protection rating IK code	IK10
Version for	Inside
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C

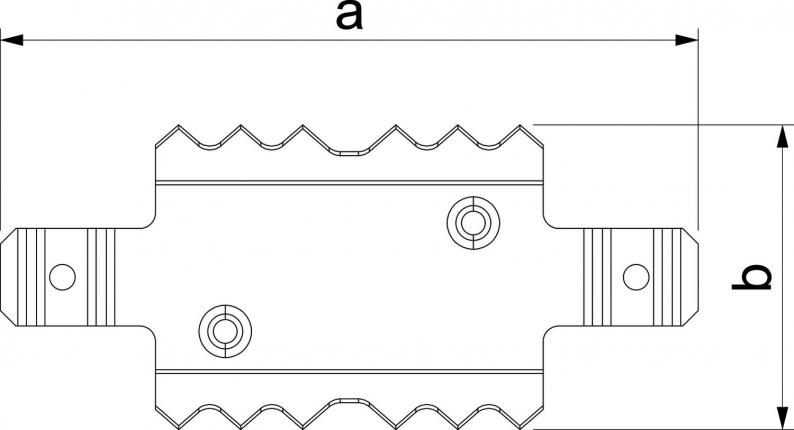

Dimension	30mm
Surface	Bright, treated
Material	Stainless steel 1.4310
Colour	stainless steel
CO2 Footprint (GWP) Cradle-to-Gate	0,0542 kg CO2e / 1 Piece
