Joint connector FT
Type GUV 6 FT | Item no. 6016573 | EAN 4012196593873
Item no. / Type
6016573 / GUV 6 FT
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 20 piece
20piece
Description
Joint connector for mesh cable tray, type SGR.
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
200–300 mm = 3 units
400–450 mm = 4 units
500–600 mm = 5 units
Figure: Positioning and quantity of mesh cable tray connectors.
50–150 mm = 2 units
200–300 mm = 3 units
400–450 mm = 4 units
500–600 mm = 5 units

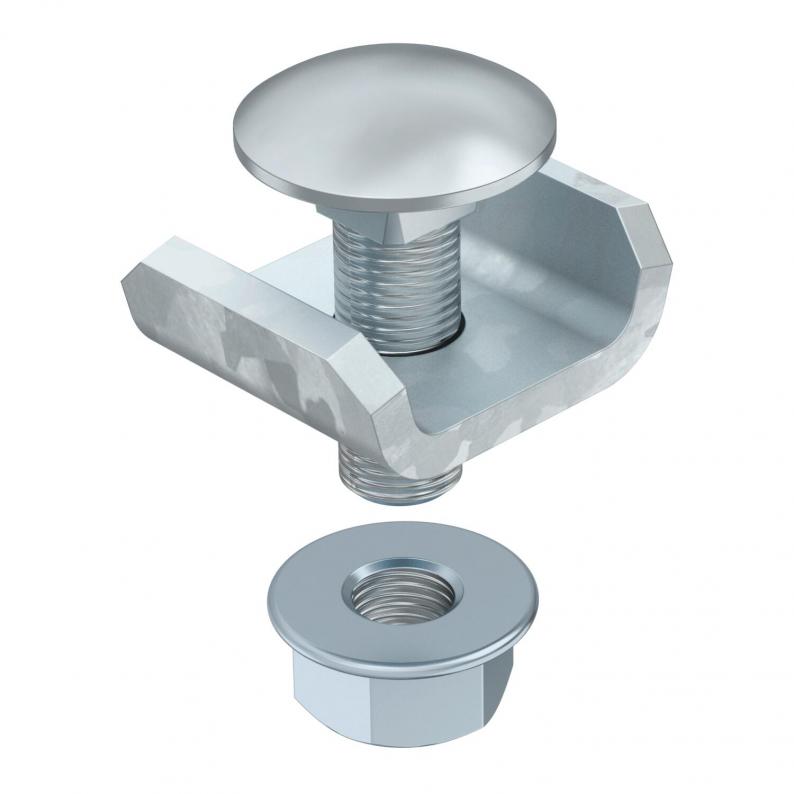

Including FRS M8 x 25 bolt with flange nut.
Technical data

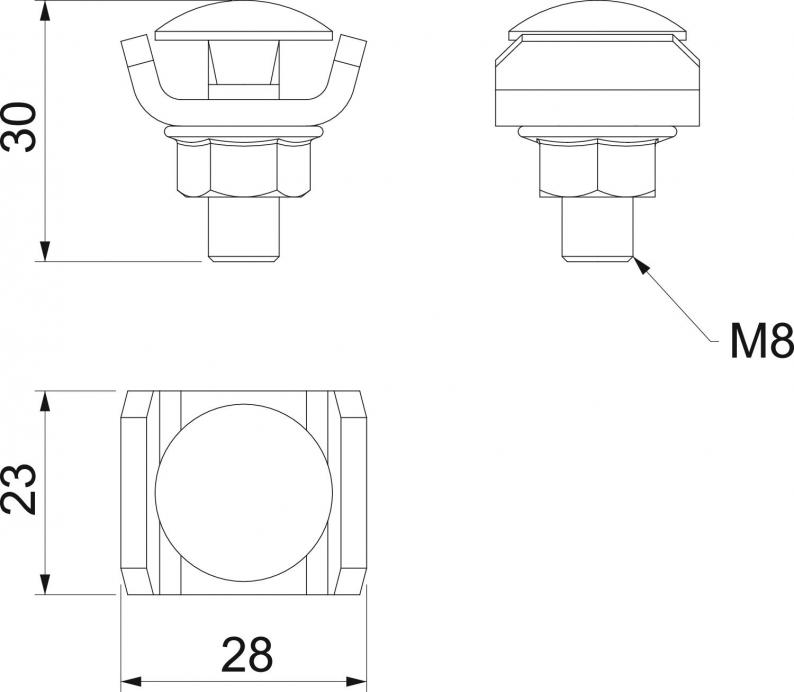

Dimensions
| Length | 24 mm |
|---|---|
| Width | 28 mm |
| Height | 30 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | yes |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 24 x 28 |
| Suitable for mesh cable tray wire, min. | 6 mm |
| Connection type | Screw connector |
| Dimension | 24x28x30 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1111 kg CO2e / 1 Piece |
