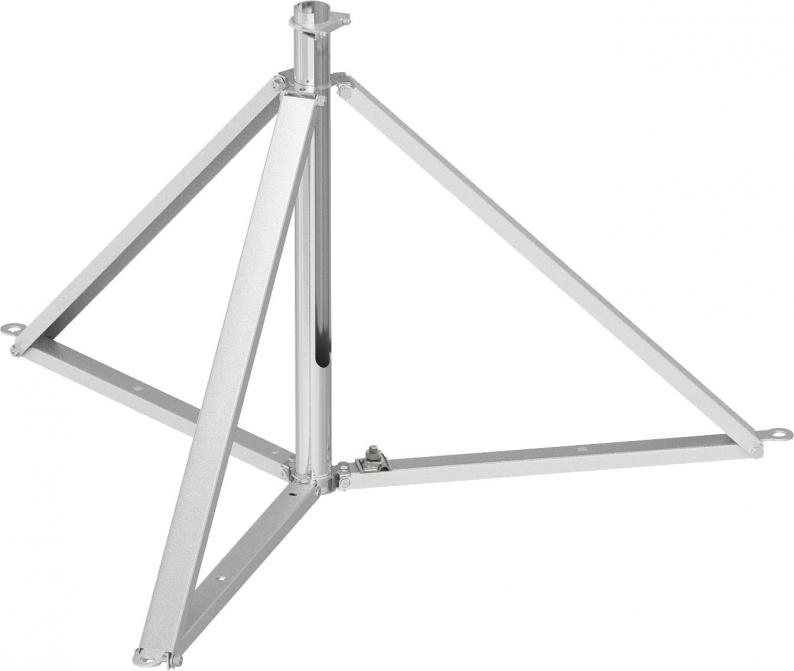

isFang tripod with side outlet

isFang tripod with side outlet

Type isFang 3B-250-A | Item no. 5408902 | EAN 4012196219452

Show all variants
Item no. / Type
Dimension L
Dimension B
Dimension H
Dimension d min.
Material
Stainless steel 1.4301

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

• Screwless installation of freestanding air-termination rods as well as insulated air-termination rods with 50 mm diameter

• E.g. for internal OBO isCon® conductor

• Roof slope to max. 5 degrees

• Incl. Rd 8–10 crossbar for quick round conductor fastening

• Concrete plinths as well as threaded rods should be ordered separately
  • Lightning current-tested
  • CO₂ footprint (PCF)

Technical data

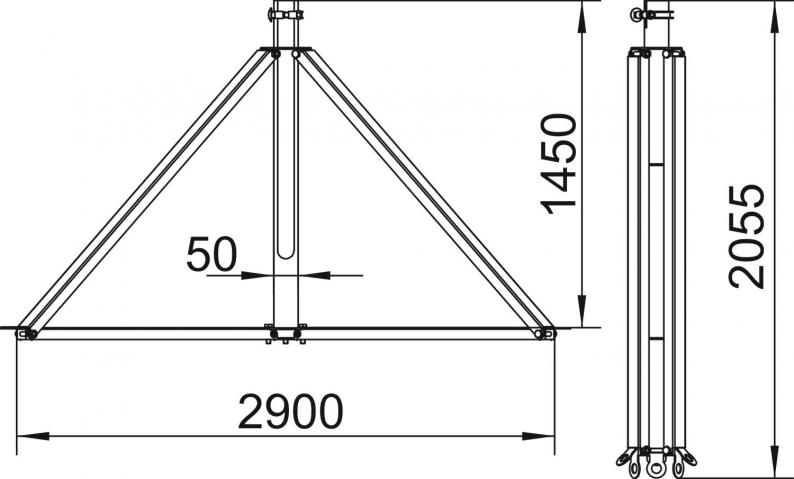

Dimensions

Length1450 mm
Width2900 mm
Height2055 mm
Dimension L1450 mm
Dimension B2900 mm
Dimension H2055 mm
Dimension d min.50 mm

Technical data

Diameter2900 mm
Air-termination rod holderScrewless
Version forStand
Dimension2,9x2,5m
MaterialStainless steel 1.4301
CO2 Footprint (GWP) Cradle-to-Gate119,4071 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Dimension L
Dimension B
Dimension H
isFang 3B-250-A
Item no.
5408902
Dimension L
1450
Dimension B
2900
Dimension H
2055
Dimension d min.
50
Material
Stainless steel 1.4301
isFang 3B-100-A
Item no.
5408930
Dimension L
600
Dimension B
1026
Dimension H
885
Dimension d min.
50
Material
Stainless steel 1.4301
isFang 3B-150-A
Item no.
5408932
Dimension L
900
Dimension B
1500
Dimension H
1275
Dimension d min.
50
Material
Stainless steel 1.4301
