isFang, insulated air-termination rod for inner-routed isCon® conductor Professional Plus
Type isFang IN 4000 | Item no. 5408934 | EAN 4012195871613
Item no. / Type
5408934 / isFang IN 4000
Smallest selling unit: 1 piece
1piece
Description
• For installation of the OBO isCon® Pro+ conductor in the pipe
• For mounting on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Inclusive connection element (type isCon IN connect)
• Inclusive potential connection (type isCon In PAE)

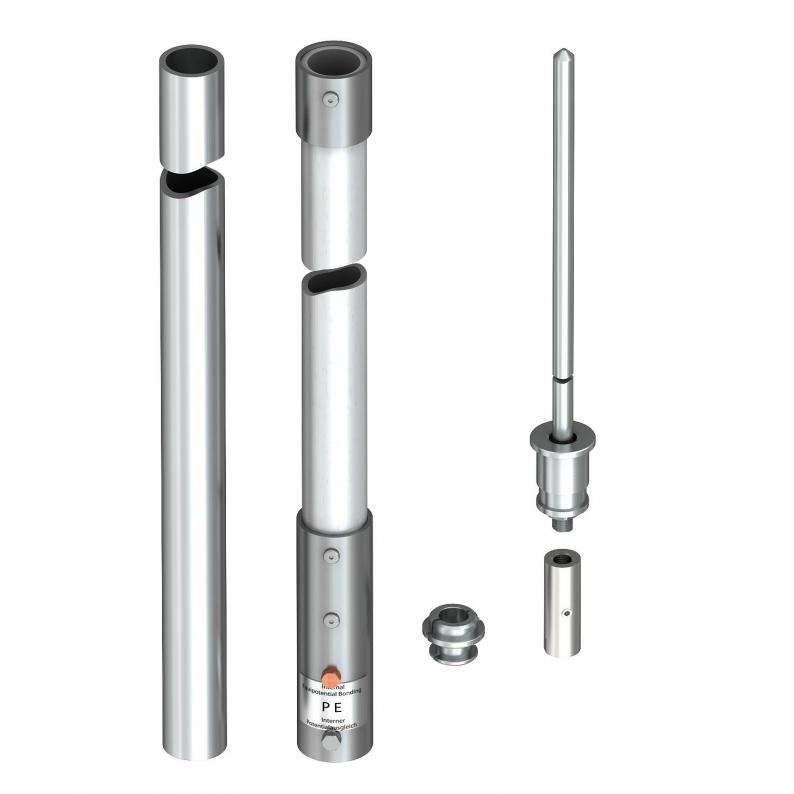

• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)
• For mounting on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Inclusive connection element (type isCon IN connect)
• Inclusive potential connection (type isCon In PAE)
• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)
Technical data

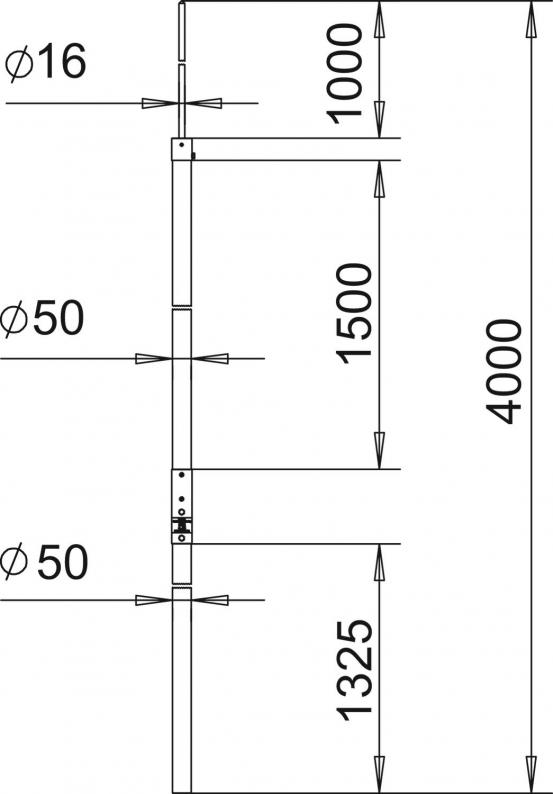

Dimensions
| Length | 4000 mm |
|---|---|
| Dimension L | 4000 mm |
| Dimension A | 1325 mm |
| Dimension B | 1000 mm |
| Dimension H | 1500 mm |
| Dimension d min. | 50 mm |
Technical data
| Diameter | 50 mm |
|---|---|
| High voltage-resistant, insulated version | yes |
| Connection | Round conductor |
| Version for | Air-termination rod |
| Dimension | 4000mm |
| Material | Fibre-glass-reinforced plastic |
| CO2 Footprint (GWP) Cradle-to-Gate | 52,3752 kg CO2e / 1 Piece |
