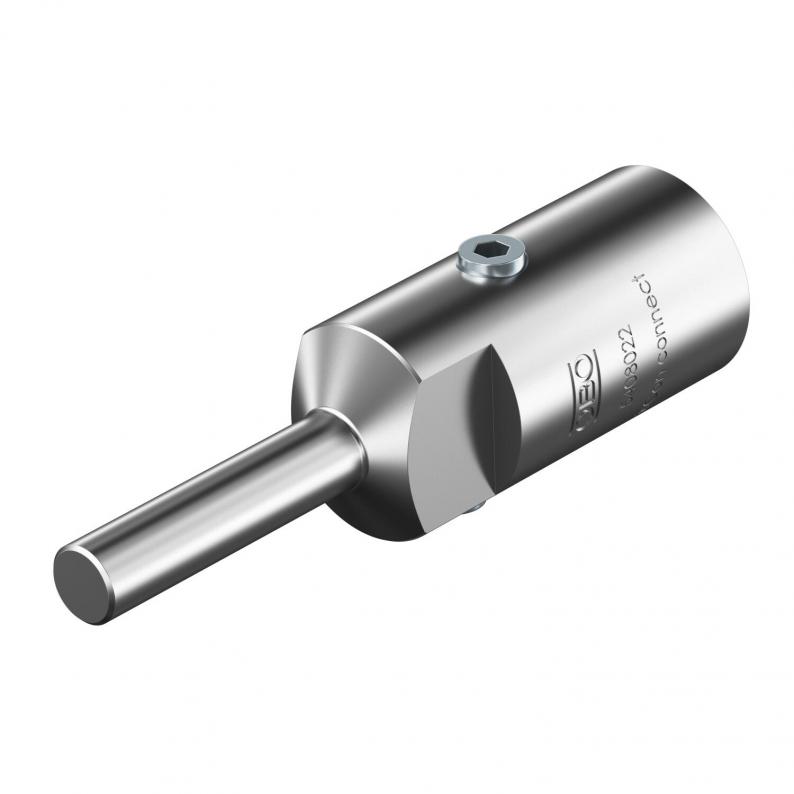

isCon® connection element
Type isCon connect | Item no. 5408022 | EAN 4012195674689
Item no. / Type
Lightning current carrying capacity
Dimension d min.
Fit
Smallest selling unit: 2 piece
2piece
Description
• Screw-on termination of the connection for the isCon® conductor
• Incl. heat-shrinkable sleeve, hexagonal and screw lock
• Tested up to 150 kA (lightning protection class II)
• Incl. heat-shrinkable sleeve, hexagonal and screw lock
• Tested up to 150 kA (lightning protection class II)
Technical data

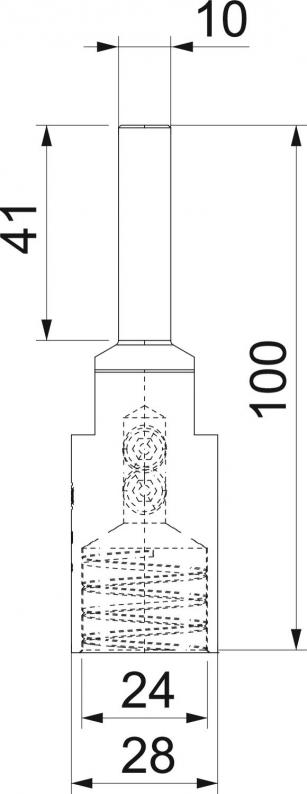

Dimensions
| Length | 28 mm |
|---|---|
| Dimension B | 28 mm |
| Dimension H | 101 mm |
| Dimension d min. | 28 mm |
Technical data
| Diameter | 28 mm |
|---|---|
| Lightning current carrying capacity | H1/150 kA |
| Fit | 23 mm |
| Dimension | Ø23mm |
| Material | Stainless steel 1.4301 |
| Clamping range, max. | 23 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0668 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 5408013
Stripping tool for isCon® conductorType
isCon stripper 2
Smallest selling unit: 1 piece
1piece
Variants
Type
Lightning current carrying capacity
Dimension d min.
Fit
Item no.
isCon con 2
H1/150
28
20
5408021
isCon connect
H1/150
28
23
5408022
isCon con PRE
H2/200
28
23
5408023
Lightning current carrying capacity
Fit
isCon con 2
Item no.
5408021
Lightning current carrying capacity
H1/150
Dimension d min.
28
Fit
20
isCon connect
Item no.
5408022
Lightning current carrying capacity
H1/150
Dimension d min.
28
Fit
23
isCon con PRE
Item no.
5408023
Lightning current carrying capacity
H2/200
Dimension d min.
28
Fit
23
