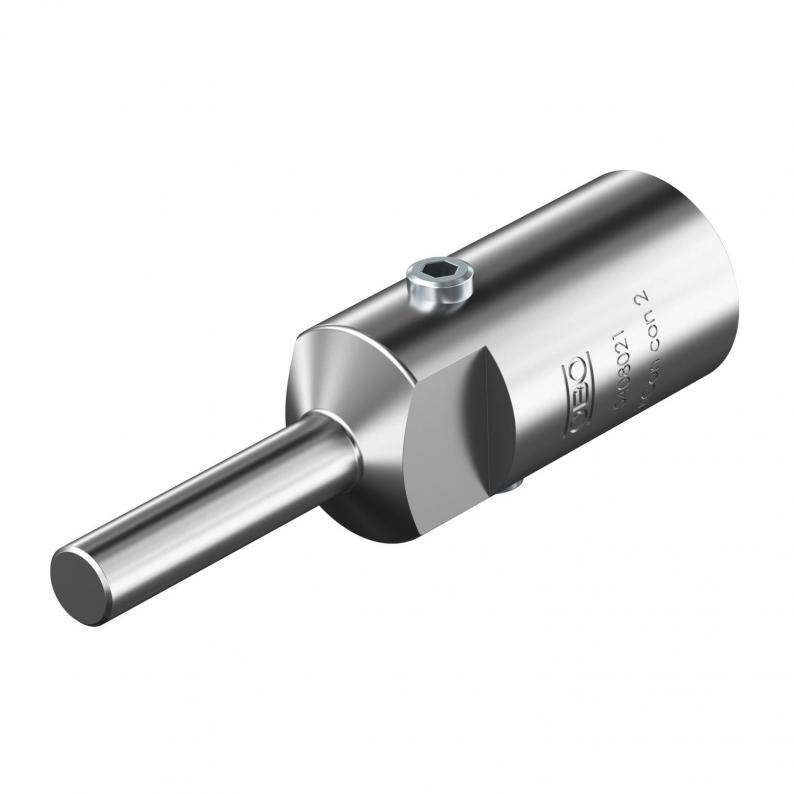

isCon® connection element
Type isCon con 2 | Item no. 5408021 | EAN 4012196591671
Item no. / Type
Lightning current carrying capacity
Dimension d min.
Fit
Smallest selling unit: 2 piece
2piece
Description
• For the isCon® Basic and Professional cable
• Screw-on termination
• Including heat-shrinkable sleeve and hexagonal wrench
• Tested to up to 150 kA (lightning protection class II)
• Screw-on termination
• Including heat-shrinkable sleeve and hexagonal wrench
• Tested to up to 150 kA (lightning protection class II)
Technical data
Technical data
| Lightning current carrying capacity | H1/150 kA |
|---|---|
| Fit | 20 mm |
| Dimension | Ø20mm |
| Material | Stainless steel 1.4301 |
| Clamping range, max. | 20 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0668 kg CO2e / 1 Piece |

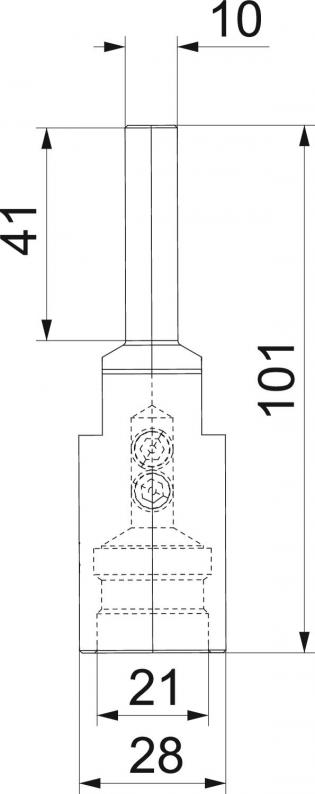

Dimensions
| Dimension d min. | 28 mm |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (3)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 5408013
Stripping tool for isCon® conductorType
isCon stripper 2
Smallest selling unit: 1 piece
1piece
Variants
Type
Lightning current carrying capacity
Dimension d min.
Fit
Item no.
isCon con 2
H1/150
28
20
5408021
isCon connect
H1/150
28
23
5408022
isCon con PRE
H2/200
28
23
5408023
Lightning current carrying capacity
Fit
isCon con 2
Item no.
5408021
Lightning current carrying capacity
H1/150
Dimension d min.
28
Fit
20
isCon connect
Item no.
5408022
Lightning current carrying capacity
H1/150
Dimension d min.
28
Fit
23
isCon con PRE
Item no.
5408023
Lightning current carrying capacity
H2/200
Dimension d min.
28
Fit
23
