isCon® conductor, Basic black

isCon® conductor, Basic black

Type isCon BA 45 SW | Item no. 5408014 | EAN 4012196591664

Show all variants
Item no. / Type
5408014 / isCon BA 45 SW
Equivalent separating distance s(e)/m (in air)
0,45
Nomal ring (approx. m)
100

Smallest selling unit: 100 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Please refer to the mounting instructions for information on routing the OBO isCon® Basic conductor.

• Highly voltage-resistant, insulated conductor
• For maintenance of the separation distance according to IEC 62305 (VDE 0185-305-3)
• Tested according to IEC/EN 62561-1 (VDE 0185-561-1) with H1/150 kA
• Equivalent separation distance se ≤ 0.45 m (air) and se ≤ 0.90 m (solid material)
• Tested according to IEC TS 62561-8 (VDE V 0185-561-8)
• Halogen-free
• Fire load 3.3 kWh/m


  • Lightning current-tested
  • Halogen-free; without chlorine, fluorine and bromine

Technical data

Technical data

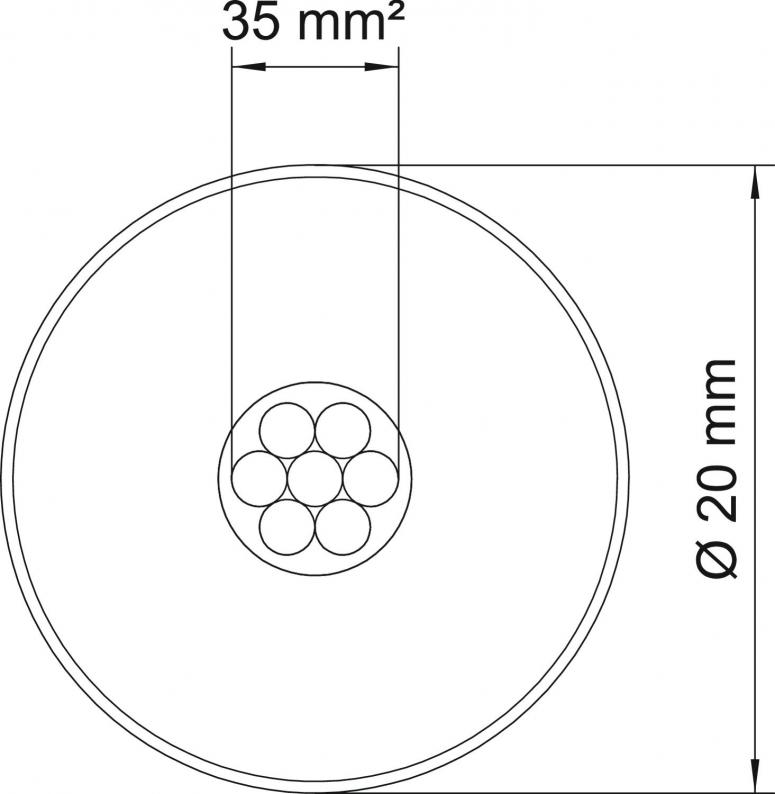

Diameter20 mm
High voltage-resistant, insulated versionyes
Number of individual wires7
Material propertyMiscellaneous
Material jacketEVA
Equivalent separating distance s(e)/m (in air)0,45
Cross-section35 mm²
Nomal ring (approx. m)100
DimensionØ20mm
ColourBlack
Length tolerance ±5 %

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Certificates (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Accessories

Mounting accessories
System accessories
Type
isCon stripper 2

Smallest selling unit: 1 piece

Variants

isCon BA 45 SW
Item no.
5408014
Diameter
20
Equivalent separating distance s(e)/m (in air)
0,45
Cross-section
35
Nomal ring (approx. m)
100
