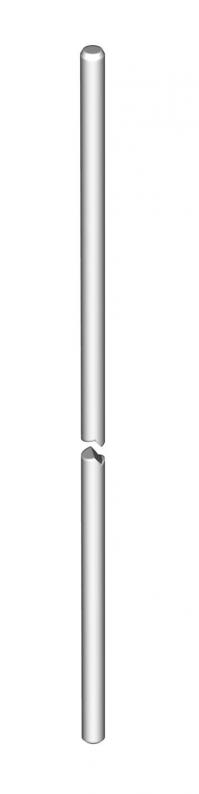

Insulating rod
Type 101 16-1500 | Item no. 5408108 | EAN 4012195613213
Item no. / Type
5408108 / 101 16-1500
Smallest selling unit: 5 piece
5piece
Description
• For the erection of insulated air-termination systems to VDE 0185-305 (IEC 62305)
• UV-resistant and weatherproof
• Continuous temperature range -50 °C to +100°C
• Material factor km = 0.7
• UV-resistant and weatherproof
• Continuous temperature range -50 °C to +100°C
• Material factor km = 0.7
Technical data
Dimensions
| Length | 1500 mm |
|---|---|
| Dimension L | 1500 mm |
| Dimension D | 16 mm |
Technical data
| Nominal size Ø | 16 mm |
|---|---|
| Version for | Air-termination rod |
| Dimension | 1500mm |
| Material | Fibre-glass-reinforced plastic |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,0324 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Nominal size Ø
Item no.
101 16-1500
1500
16
5408108
101 16-1500
Item no.
5408108
Length
1500
Nominal size Ø
16
