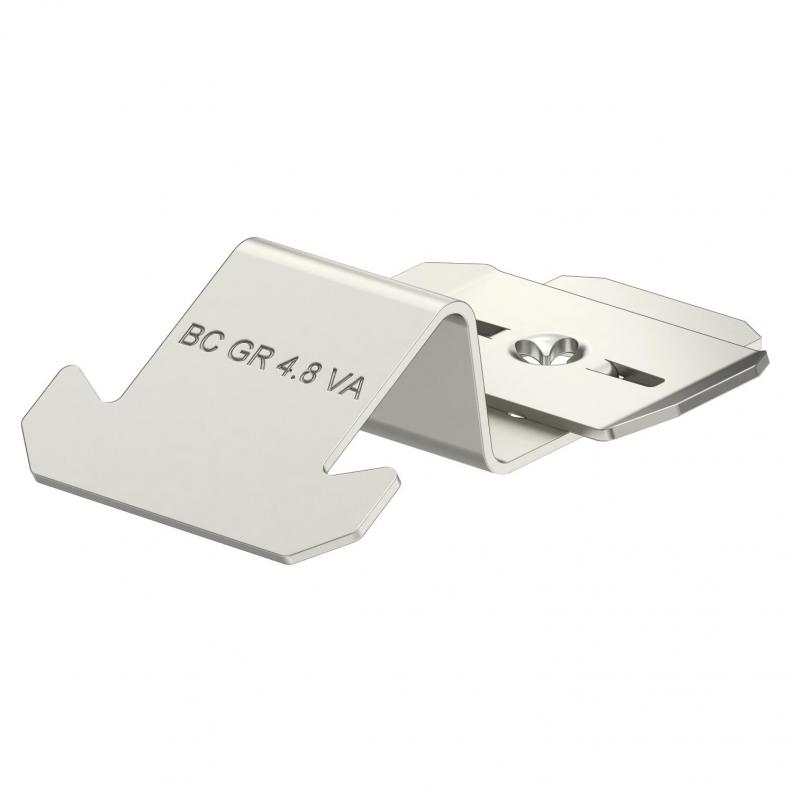

Hold down clip
Type BC GR 4.8 A2 | Item no. 6016665 | EAN 4012195980698
Item no. / Type
6016665 / BC GR 4.8 A2
Smallest selling unit: 20 piece
20piece
Description
Hold-down clip for the screwless mounting of mesh cable trays onto MS profile rails with a slot width of 22 mm.
Technical data
Technical data
| Rustproof steel, pickled | no |
|---|---|
| With screw accessories | no |
| Version for | For wire thicknesses 3.9 and 4.8 mm |
| Suitable for profile shapes | C profile |
| Dimension | 82x33x17 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4310 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1632 kg CO2e / 1 Piece |
Dimensions
| Dimension b | 17 mm |
|---|
