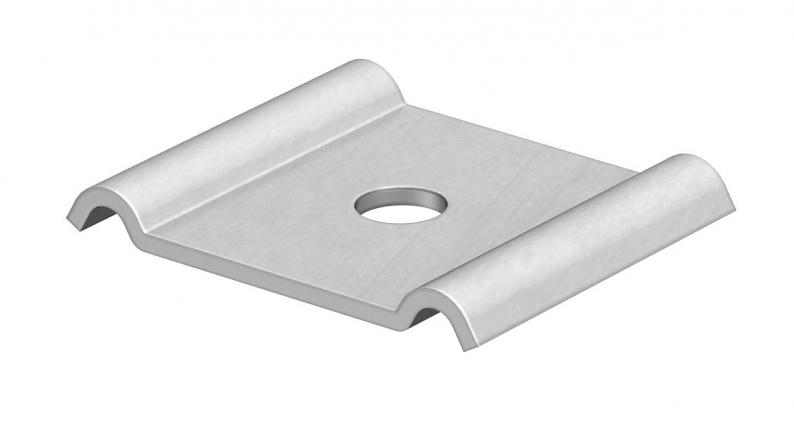

Hold-down clamp A4
Type GKS 50 11 A4 | Item no. 6015280 | EAN 4012196937394
Item no. / Type
6015280 / GKS 50 11 A4
Surface
Bright, treated
Material
Stainless steel 1.4404
Smallest selling unit: 20 piece
20piece
Description
Clamp for fastening mesh cable trays.
Use on mesh cable trays with 50 x 100 mm grid only.
Technical data

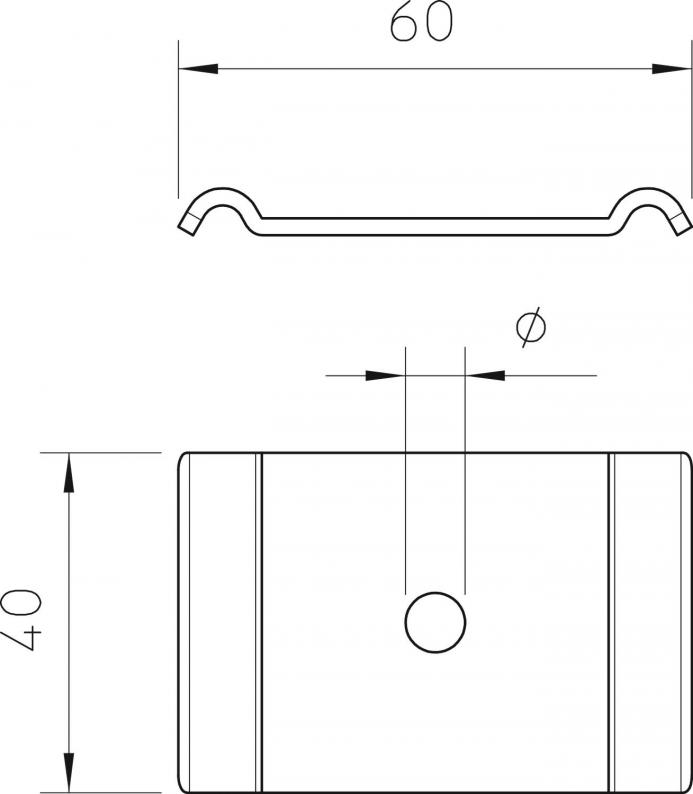

Dimensions
| Length | 60 mm |
|---|---|
| Width | 40 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Hole diameter | 11 mm |
| Dimension | 60x40 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4404 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2276 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
