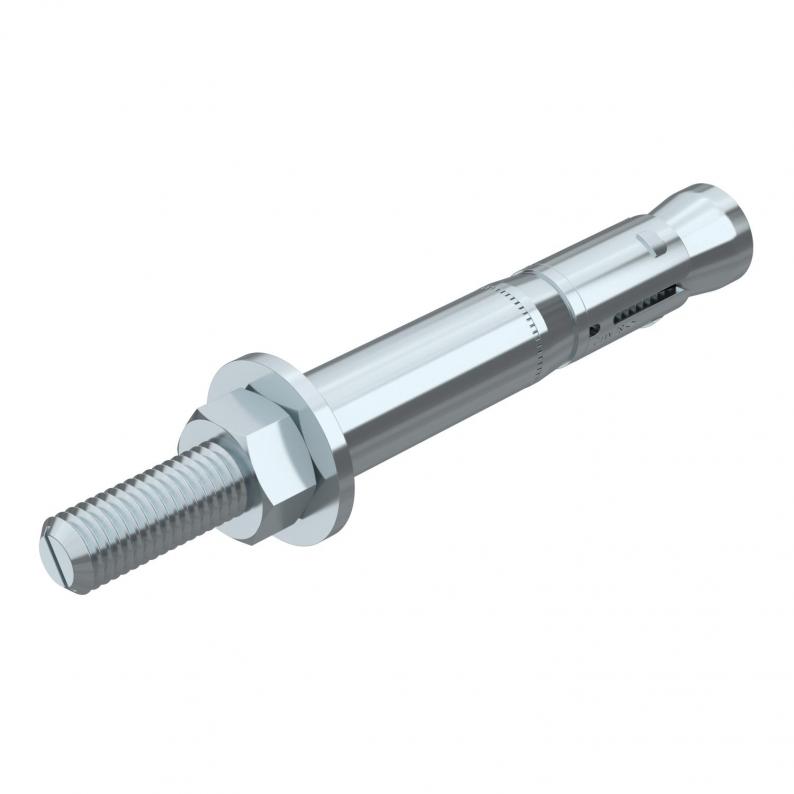

High-load anchor SZ-B
Type SZ-B 18/0x142 | Item no. 3498752 | EAN 4012196429486



Item no. / Type
3498752 / SZ-B 18/0x142
Thread
M12
Smallest selling unit: 20 piece
20piece
Description
The high-load anchor SZ is a heavy-duty push-through anchor system with a threefold expanding special sleeve which facilitates very high approved loads with small axial spacings and edge distances. The plastic press ring secures the permanent tightening of the fastening piece against the ground.
Due to the special design with an elongated thread and a shortened anchor sleeve, this special version is not approved to the European technical norm ETA .
Technical data
Dimensions
Length | 142 mm |
---|---|
Dimension L | 142 mm |
Technical data
Thread metric | 12 |
---|---|
Thread | M12 |
Clamping strength | 30 mm |
Version for | For pushing in |
Drill hole diameter, min. | 18 mm |
Drill hole depth | 105 mm |
Permitted load range, tension zone | 12,3 |
Dimension | M12x142 |
Surface | Electrogalvanized |
Material | Steel |
Colour | zinc |
