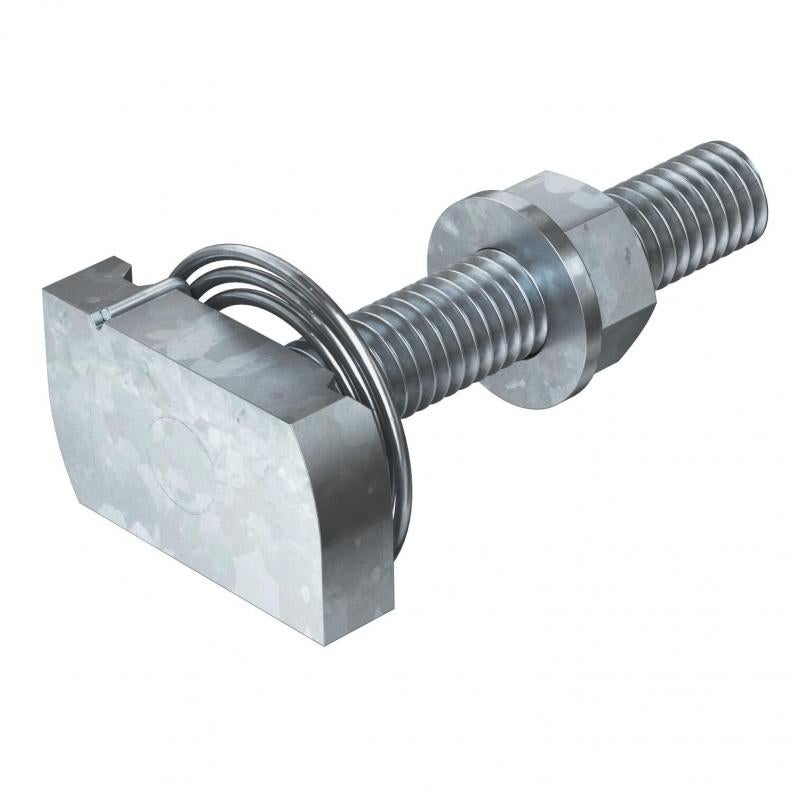

Hammer-head bolt with spring FT
Type MS41HBF M10x60FT
|Item no. 1148388
|EAN 4012196490240
Item no. / Type
Length
Width
Height
Thread
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 25 piece
25piece
piece
Description
Hammer-head bolt with spring for use with MS4121 and MS4141 profile rails
Technical data

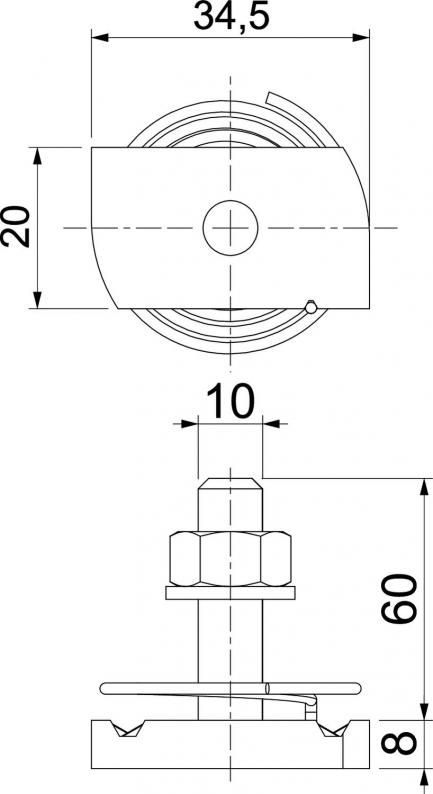

Dimensions
| Length | 34,5 mm |
|---|---|
| Width | 20 mm |
| Height | 8 mm |
| Dimension L | 60 mm |
| Dimension H | 8 mm |
Technical data
| Washer Ø | 20 mm |
|---|---|
| Thread | M 10 x 60 |
| Suitable for mounting rail | yes |
| Torque | 16,1 Nm |
| Dimension | M10x60mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
0,2394 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2394 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (3)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Length
Width
Height
Thread
Item no.
MS41HBF M8x30 FT
34,5
20
6
M 8 x 30
1148376
MS41HBF M8x60 FT
34,5
20
6
M 8 x 60
1148380
MS41HBF M10x30FT
34,5
20
8
M 10 x 30
1148384
MS41HBF M10x60FT
34,5
20
8
M 10 x 60
1148388
MS41HBF M12x30FT
34,5
20
9
M 12 x 30
1148392
MS41HBF M12x60FT
34,5
20
9
M 12 x 60
1148396
