GESR9 service outlet with locking slider
Type GESR9-2U12T 7011
|Item no. 7405465
|EAN 4012195840718
Item no. / Type
Floor covering thickness
Colour
Nominal size for device installation units
R9
Smallest selling unit: 1 piece
1piece
piece
Description

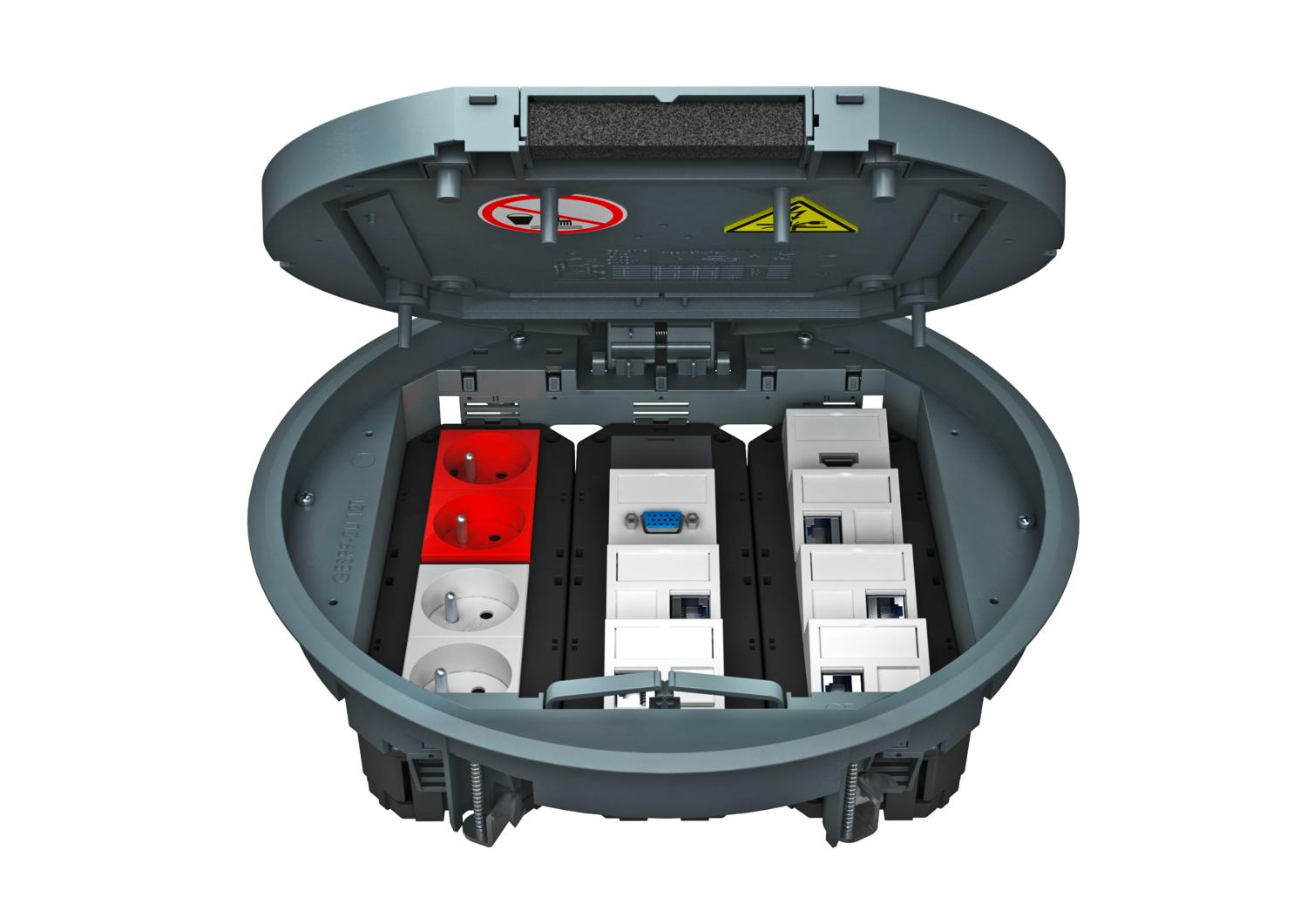

Service outlet with locking slider for up to 12 individual Modul 45 devices in 3 UT4 universal supports, use in duct and trunking systems and system floors.
5 mm floor covering recess in the hinged cover, if necessary, adjustable to 3, 10 or 12 mm.
Service outlet with locking slider, 3-compartment, for the installation of MT9 mounting support. Three type APMT5 cover plates can be installed.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 10 or 12 mm.
5 mm floor covering recess in the hinged cover, if necessary, adjustable to 3, 10 or 12 mm.
Service outlet with locking slider, 3-compartment, for the installation of MT9 mounting support. Three type APMT5 cover plates can be installed.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 10 or 12 mm.
Up to 9 installation devices with 50 mm central plate can be inserted.
Technical data
Technical data
| Floor height, min. | 72 mm |
|---|---|
| Floor covering thickness | 5 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | yes |
| Number of installable devices | 12 |
| Seal installation option | no |
| Installation diameter | 304 |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Frame version | Carpet protection frame |
| Number of mounting boxes | 3 |
| Suitable for wet care | no |
| Installation depth | 73 mm |
| External diameter | 324 mm |
| With floor covering recess | yes |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK08 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | R9 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |
| Opening mechanism | Locking slider |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 75 mm |

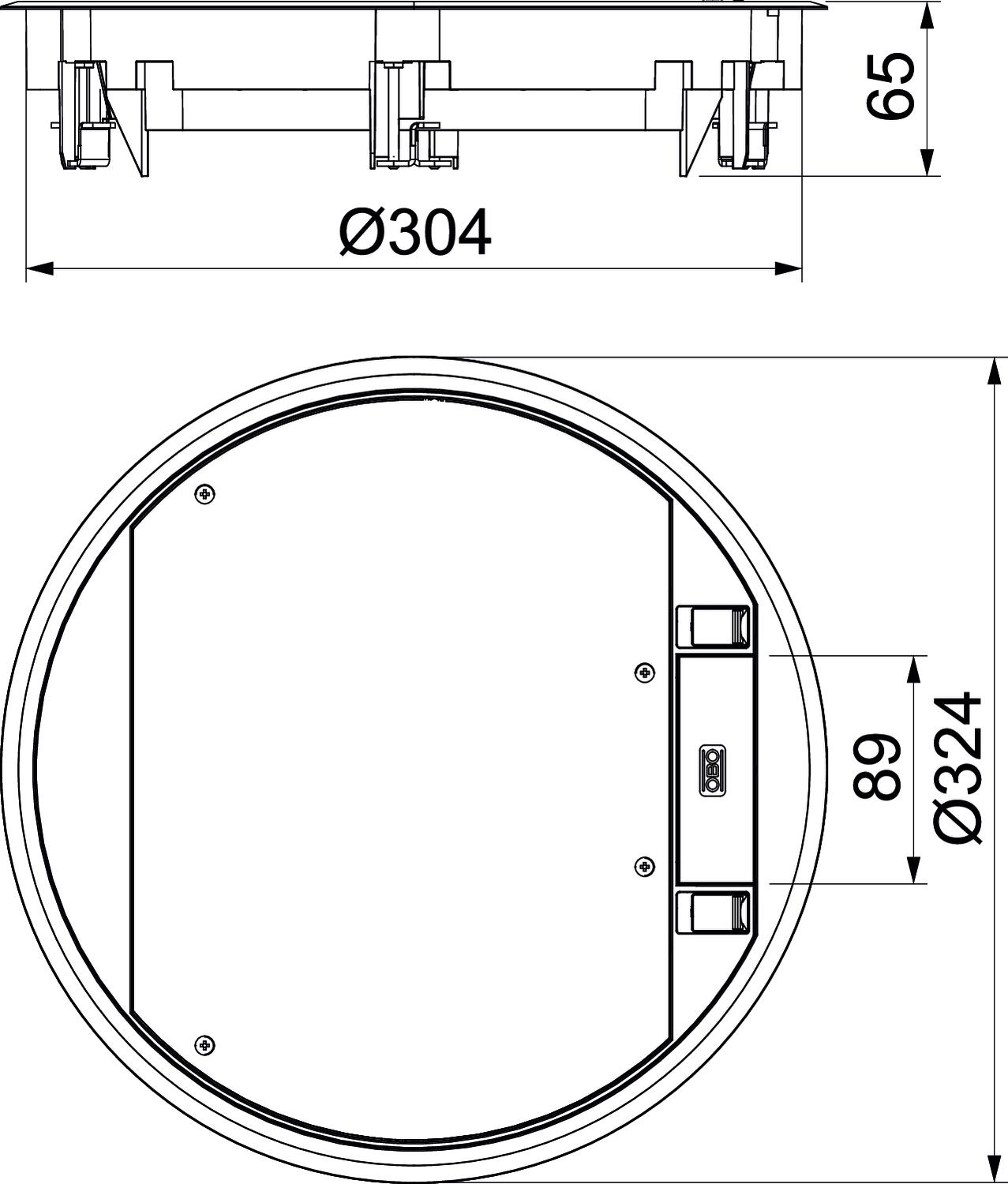

| Dimension | Ø324x68 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
| Floor covering thickness max. | 12 mm |
