G mesh cable tray Magic® 50 FT

G mesh cable tray Magic® 50 FT

Type G-GRM 50 50 FT | Item no. 6005520 | EAN 4012195686392

Show all variants
Item no. / Type
6005520 / G-GRM 50 50 FT
Maintain electrical functions
no

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

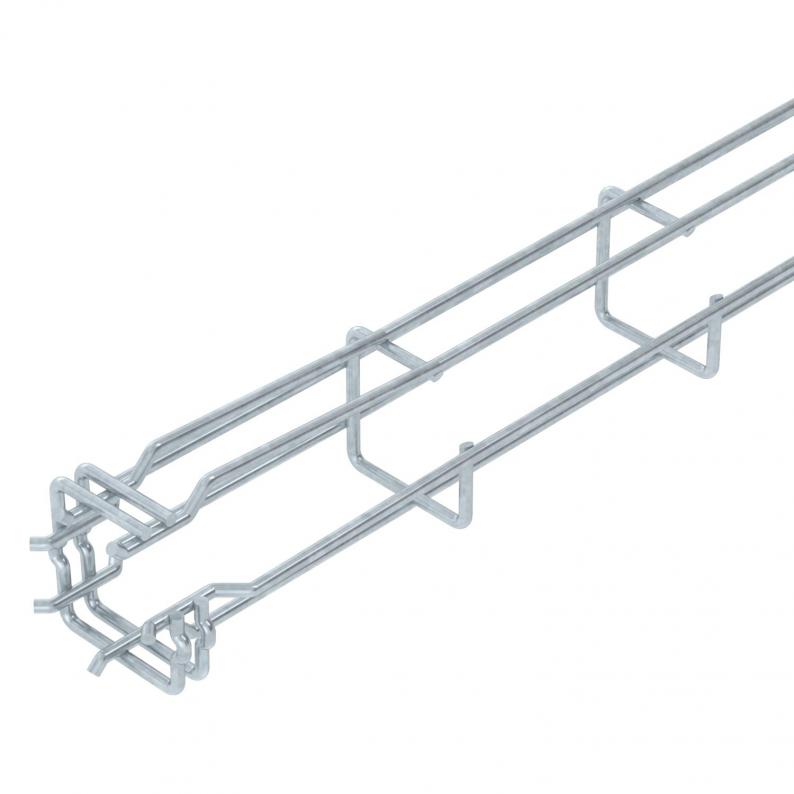

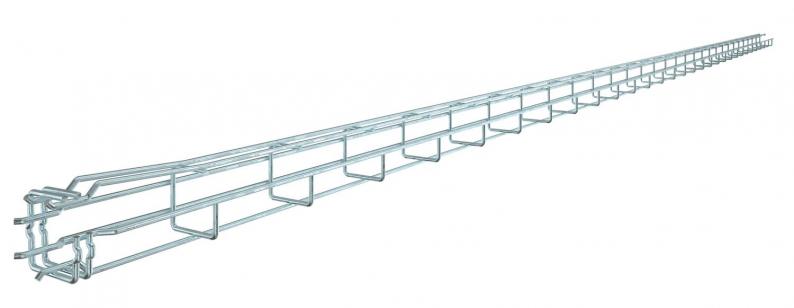

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.

Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.


Magnetic shield insulation 15 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

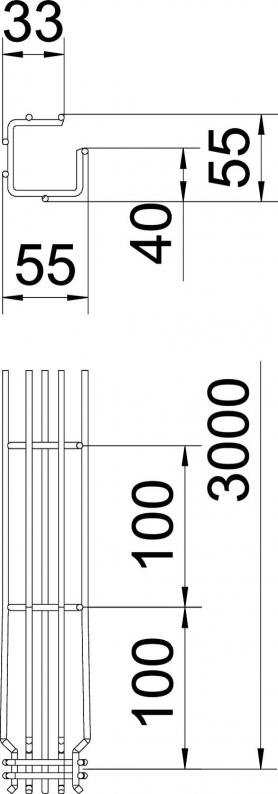

Dimensions

Length3000 mm
Width50 mm
Height50 mm
Dimension A38 mm
Dimension B55 mm
Dimension H55 mm
Dimension C33 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section17 cm²
Rustproof steel, pickledno
Usable cross-section1700 mm²
Integrated partitionWithout
Screwless connectoryes
Profile shapeG-shaped
Wire diameter3,9 mm
Dimension50x50x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate1,4885 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories

Item no. 6016634

Joint connector FT
Type
GSV 34 FT

Smallest selling unit: 20 piece

Variants

G-GRM 50 50 FT
Item no.
6005520
Length
3000
Width
50
Height
50
Maintain electrical functions
no
Usable cross-section
17
Wire diameter
3,9
