G mesh cable tray Magic® 150 G

G mesh cable tray Magic® 150 G

Type G-GRM 150 100 G | Item no. 6005544 | EAN 4012195686460

Show all variants
Item no. / Type
6005544 / G-GRM 150 100 G
Maintain electrical functions
yes

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

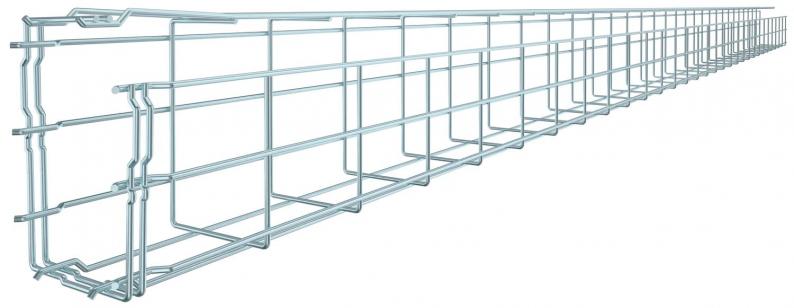

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.

Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.



Magnetic shield insulation 15 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

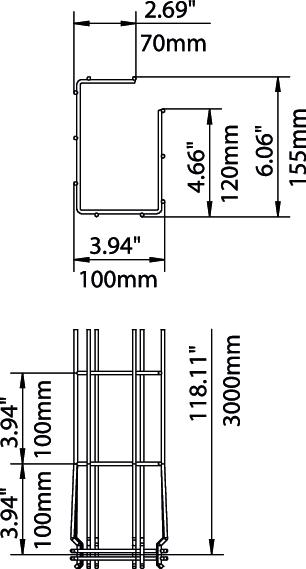

Technical data

Dimensions

Length3000 mm
Width100 mm
Height150 mm
Dimension A120 mm
Dimension B100 mm
Dimension H155 mm
Dimension C68 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section107 cm²
Rustproof steel, pickledno
Usable cross-section10700 mm²
Integrated partitionWithout
Screwless connectoryes
Profile shapeG-shaped
Wire diameter3,9 mm
Dimension150x100x3000
SurfaceElectrogalvanized
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate2,3738 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m0,35 kN/m
Support spacing 2.5 m0,3 kN/m
Support spacing 1.0 m0,6 kN/m
Support spacing 1.5 m0,5 kN/m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (2)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories

Item no. 6016634

Joint connector FT
Type
GSV 34 FT

Smallest selling unit: 20 piece

Variants

G-GRM 150 100 G
Item no.
6005544
Length
3000
Width
100
Height
150
Maintain electrical functions
yes
Usable cross-section
107
Wire diameter
3,9
