G mesh cable tray Magic® 125 G

G mesh cable tray Magic® 125 G

Type G-GRM 125 75 G | Item no. 6005541 | EAN 4012195686453

Show all variants
Item no. / Type
6005541 / G-GRM 125 75 G
Maintain electrical functions
no

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

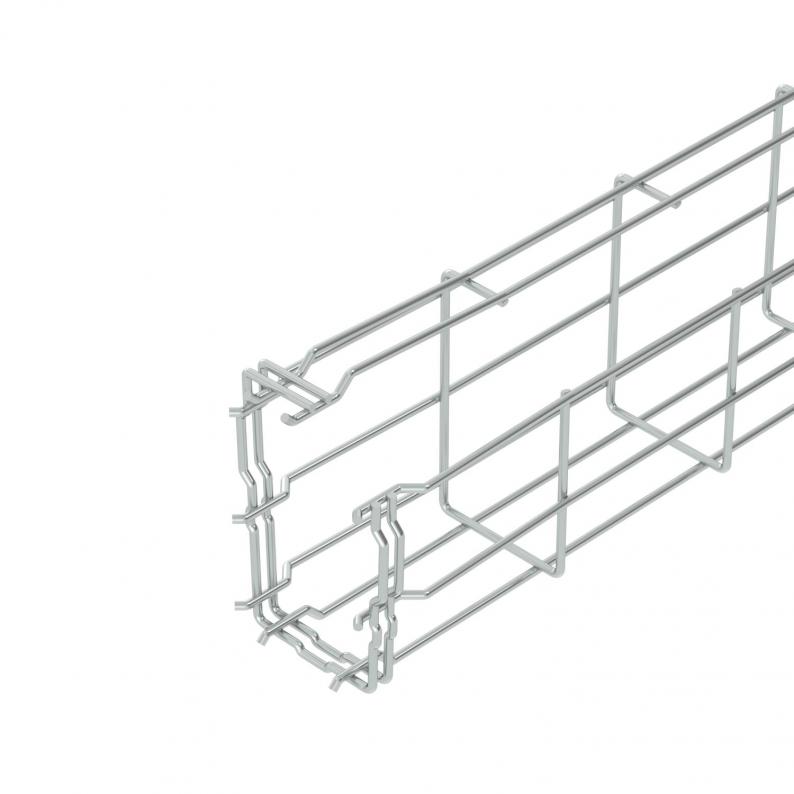

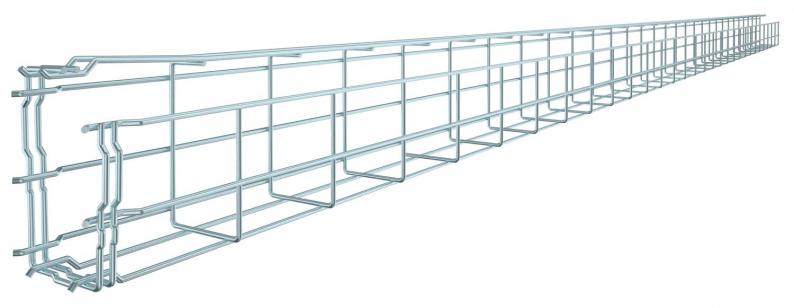

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.

Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.


Magnetic shield insulation 15 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

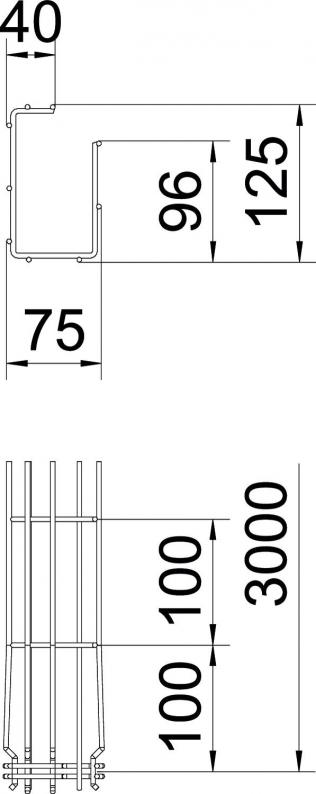

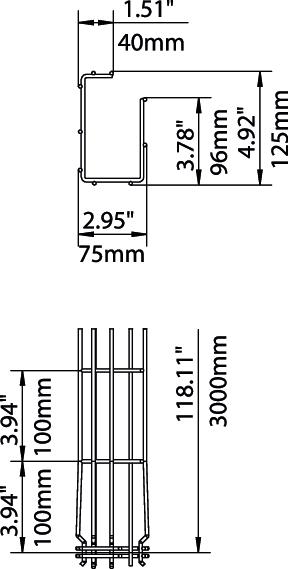

Dimensions

Length3000 mm
Width75 mm
Height125 mm
Dimension A96 mm
Dimension B75 mm
Dimension H125 mm
Dimension C38 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section61 cm²
Rustproof steel, pickledno
Usable cross-section6100 mm²
Integrated partitionWithout
Screwless connectoryes
Profile shapeG-shaped
Wire diameter3,9 mm
Dimension125x75x3000
SurfaceElectrogalvanized
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate2,0574 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m0,3 kN/m
Support spacing 2.5 m0,25 kN/m
Support spacing 1.0 m0,6 kN/m
Support spacing 1.5 m0,35 kN/m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (5)
Certificates (1)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories

Item no. 6016634

Joint connector FT
Type
GSV 34 FT

Smallest selling unit: 20 piece

Variants

G-GRM 125 75 G
Item no.
6005541
Length
3000
Width
75
Height
125
Maintain electrical functions
no
Usable cross-section
61
Wire diameter
3,9
