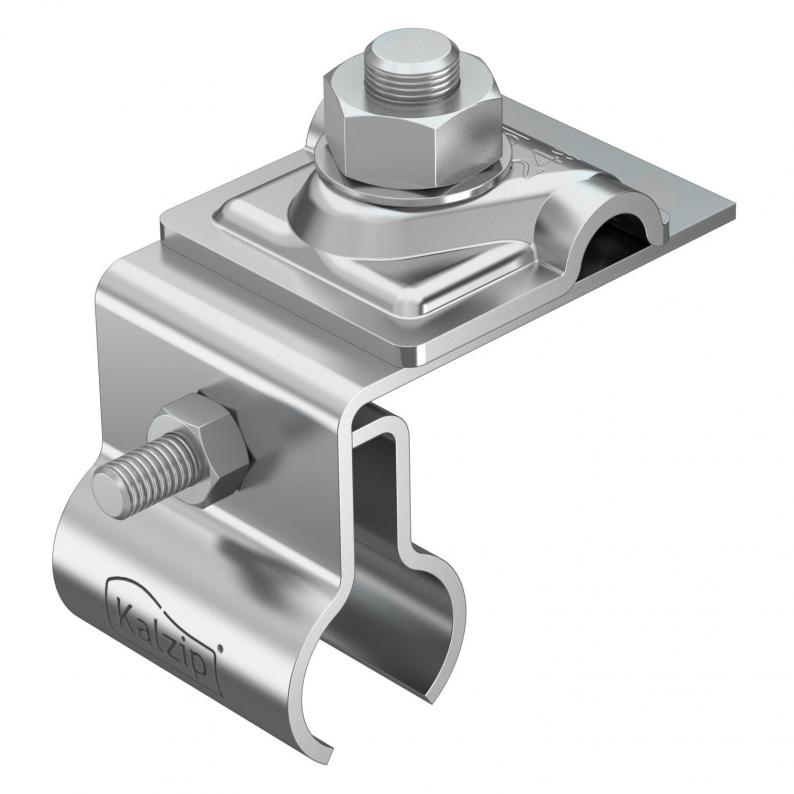

Folding and construction clamp
Type RSF 249 8-10 VA | Item no. 5317502 | EAN 4012196622368
Item no. / Type
5317502 / RSF 249 8-10 VA
Smallest selling unit: 50 piece
50piece
Description
• For round standing seam systems, fixed cable routing
• Manufacturer release by Kalzip
• Tested according to VDE 0185-561-1 (IEC/EN 62561-1)
• Manufacturer release by Kalzip
• Tested according to VDE 0185-561-1 (IEC/EN 62561-1)
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Folding clamp |
| Lightning current carrying capacity | N/50 kA |
| Fit | Rd 8-10 mm |
| Dimension | 8-10mm |
| Material | Stainless steel 1.4301 |
| Clamping range, max. | 10 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3894 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Fit
Clamping range, max.
Item no.
RSF 249 8-10 VA
Rd 8-10
10
5317502
RSF 249 8-10 VA
Item no.
5317502
Fit
Rd 8-10
Clamping range, max.
10
