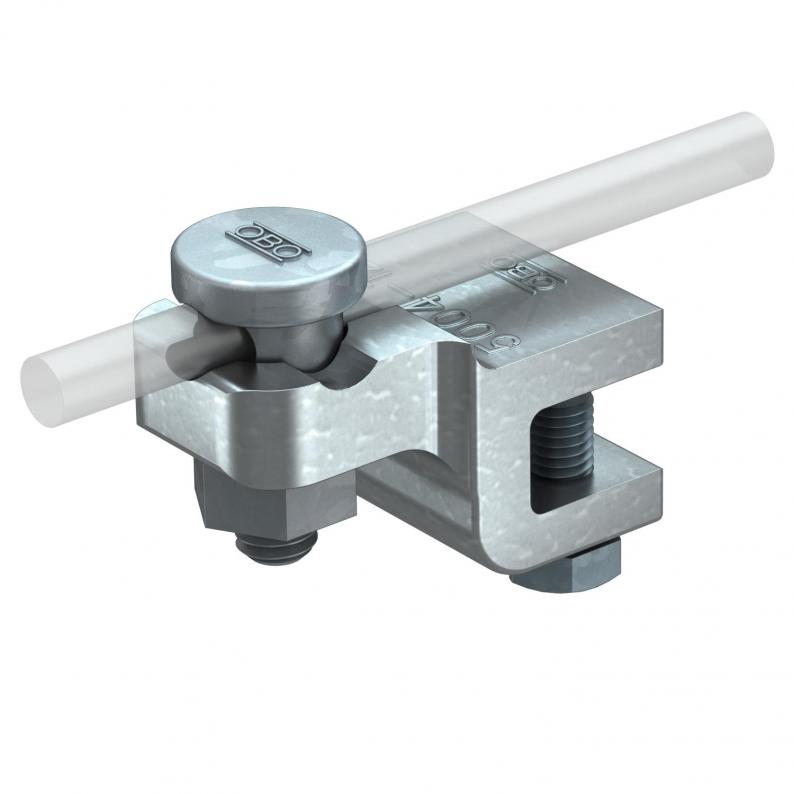

Folding and construction clamp, 12 mm

Folding and construction clamp, 12 mm

Type 5004 DIN-FT 12
|
Item no. 5304407
|
EAN 4012195416357
Show all variants
Item no. / Type
Fit
Clamping range, max.

Smallest selling unit: 10 piece

piece

Description

• Flange thickness to 12 mm

• With pre-mounted fix contact clamping screw 5000

• 2 hexagonal bolts M8 x 20, bolts made of hot galvanised steel

• Terminal block made of malleable iron, hot galvanised

• Mounting of the round conductors either vertical or transverse to structure

• Corresponds to the requirements of DIN VDE 0185-305-3
  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length55 mm
Width35 mm
Dimension L55 mm
Dimension t20 mm

Technical data

Intermediate plateno
Type of fastening screwClamping screw
Type of connectorClamp connector
Suitable for connectionMiscellaneous
Lightning current carrying capacityN/50 kA
ROHS-conformantyes
FitRd 8-10 mm
Dimension12mm
SurfaceHot-dip galvanised
MaterialCast steel
Clamping range, max.12 mm

Environmental Data

0,5329 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,5329 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,5329 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Clamping range, max.
5004 DIN-FT 12
Item no.
5304407
Fit
Rd 8-10
Clamping range, max.
12
5004 DIN-FT 20
Item no.
5304504
Fit
Rd 8-10
Clamping range, min.
10
Clamping range, max.
20
