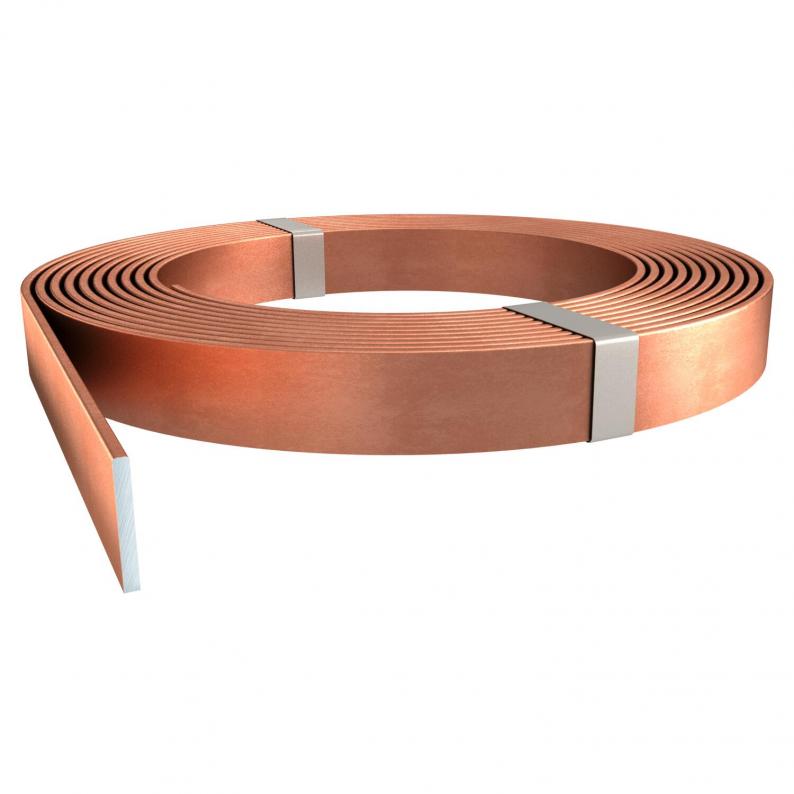

Flat conductor, copper sheathed
Type 5052 STCU 30X3 | Item no. 5020980 | EAN 4012196565023
Item no. / Type
5020980 / 5052 STCU 30X3
Smallest selling unit: 50 m
50m
Description
• Can be used as a conductor according to IEC/ EN 62561-2 (VDE 0185-561-2)
• Copper layer thickness: Min. 70 µm
• Copper layer thickness: Min. 70 µm
Technical data
Dimensions
| Length | 50000 mm |
|---|---|
| Width | 30 mm |
| Height | 3 mm |
| Dimension B | 30 mm |
| Dimension H | 3 mm |
Technical data
| Cross-section | 90 mm² |
|---|---|
| Dimension | 30x3mm |
| Surface | Copper-plated |
| Material | Steel |
| Length tolerance ± | 5 % |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Height
Item no.
5052 STCU 30X3
30
3
5020980
5052 STCU 30X3
Item no.
5020980
Width
30
Height
3
