Fastening clip, plant standard 7855, double-lobe

Fastening clip, plant standard 7855, double-lobe

Type WN 7855 B 3
|
Item no. 1044044
|
EAN 4012195029595
Show all variants
Item no. / Type
For diameter

Smallest selling unit: 100 piece

piece

Description

Dimensions to Siemens standard SN 78550, shape B, with strongly rounded edges, thus particularly suitable for sensitive cables.
* Sizes 3 to 10 not suitable for nail device.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

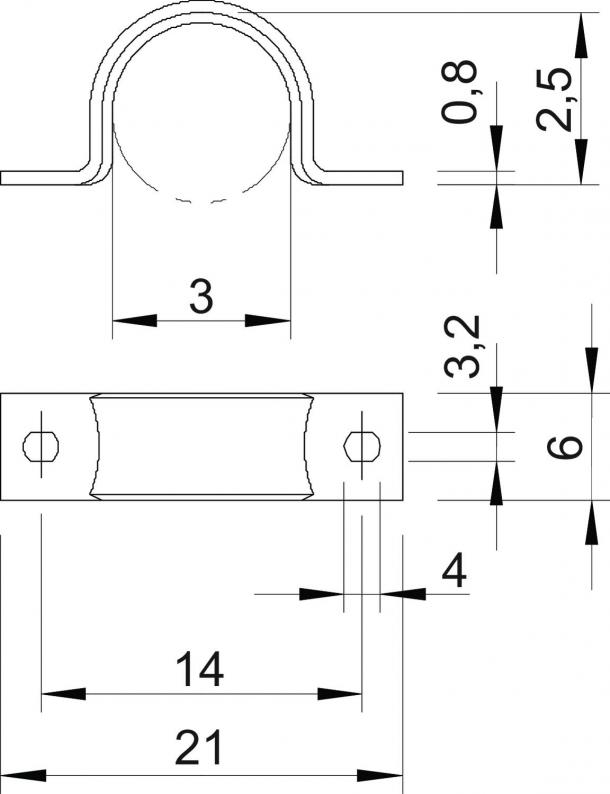

Dimensions

Length21 mm
Width6 mm
Height2,5 mm
Dimension L21 mm
Dimension A21 mm
Dimension d3,2 mm
Dimension B14 mm
Dimension H2,5 mm
Dimension t0,8 mm
Dimension b6 mm
Dimension e4 mm
Dimension D3 mm

Technical data

Material thickness0,8 mm
For diameter3
Hole size3,2 x 4
Halogen-freeyes
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter3 mm
Distance to the wallno
Version forTwo-lobe
Fastening typeScrew hole
Dimension3mm
SurfaceElectrogalvanized, transparently passivated
MaterialSteel

Environmental Data

0,0021 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0021 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

For diameter
WN 7855 B 3
Item no.
1044044
For diameter
3
WN 7855 B 4
Item no.
1044060
For diameter
4
WN 7855 B 7
Item no.
1044125
For diameter
7
WN 7855 B 8
Item no.
1044141
For diameter
8
WN 7855 B 9
Item no.
1044176
For diameter
9
WN 7855 B 10
Item no.
1044192
For diameter
10
WN 7855 B 12
Item no.
1044214
For diameter
12
WN 7855 B 14
Item no.
1044230
For diameter
14
