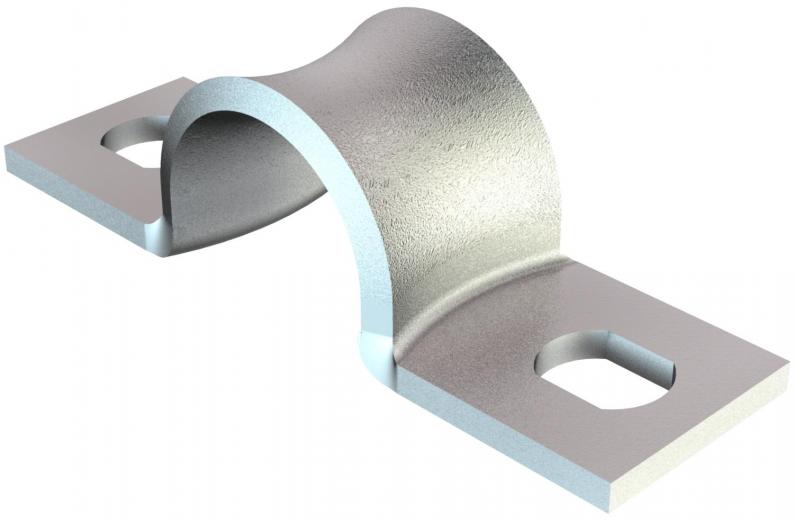

Fastening clip, plant standard 7855, double-lobe

Fastening clip, plant standard 7855, double-lobe

Type WN 7855 B 14
|
Item no. 1044230
|
EAN 4012195030256
Show all variants
Item no. / Type
For diameter

Smallest selling unit: 100 piece

piece

Description

Dimensions to Siemens standard SN 78550, shape B, with strongly rounded edges, thus particularly suitable for sensitive cables.
* Sizes 3 to 10 not suitable for nail device.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

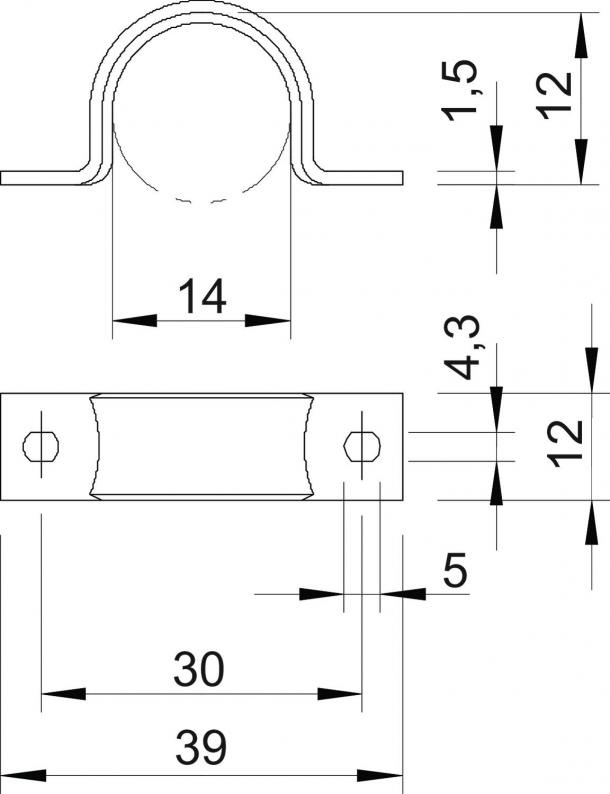

Dimensions

Length39 mm
Width12 mm
Height12 mm
Dimension L39 mm
Dimension A39 mm
Dimension d4,3 mm
Dimension B30 mm
Dimension H12 mm
Dimension t1,5 mm
Dimension b12 mm
Dimension e5 mm
Dimension D14 mm

Technical data

Material thickness1,5 mm
For diameter14
Hole size4,3 x 5
Halogen-freeyes
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter14 mm
Distance to the wallno
Version forTwo-lobe
Fastening typeScrew hole
Dimension14mm
SurfaceElectrogalvanized, transparently passivated
MaterialSteel

Environmental Data

0,0159 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0159 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

For diameter
WN 7855 B 3
Item no.
1044044
For diameter
3
WN 7855 B 4
Item no.
1044060
For diameter
4
WN 7855 B 7
Item no.
1044125
For diameter
7
WN 7855 B 8
Item no.
1044141
For diameter
8
WN 7855 B 9
Item no.
1044176
For diameter
9
WN 7855 B 10
Item no.
1044192
For diameter
10
WN 7855 B 12
Item no.
1044214
For diameter
12
WN 7855 B 14
Item no.
1044230
For diameter
14
