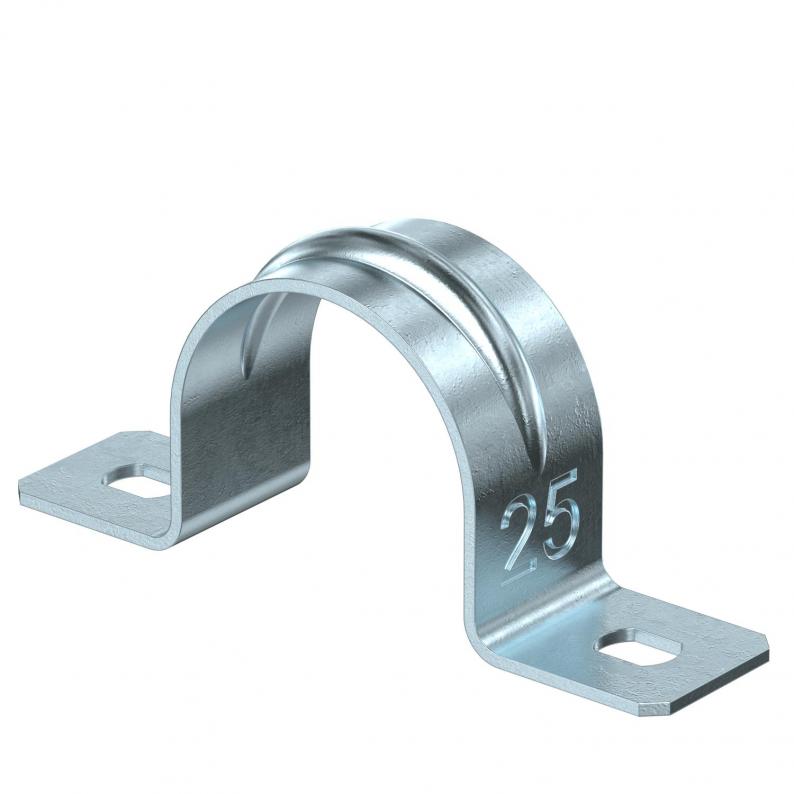

Fastening clip 605, medium duty, G
Type 605 25 G
|Item no. 1018256
|EAN 4012195017233
Item no. / Type
For diameter
Smallest selling unit: 100 piece
100piece
piece
Description
Two lobe fastening clips for cables and pipes.
* Sizes 7 to 12 not suitable for bolt-firing tool.
* Sizes 7 to 12 not suitable for bolt-firing tool.
Technical data
Dimensions
| Length | 58 mm |
|---|---|
| Width | 14 mm |
| Height | 23 mm |
| Dimension A | 58 mm |
| Dimension d | 4,5 mm |
| Dimension B | 44 mm |
| Dimension H | 23 mm |
| Dimension t | 1 mm |
| Dimension b | 14 mm |
| Dimension e | 6 mm |
| Dimension D | 25 mm |
Technical data
| Material thickness | 1 mm |
|---|---|
| For diameter | 25 |
| Hole size | 4,5 x 6 mm |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Nominal diameter | 25 mm |
| Distance to the wall | no |
| Version for | Two-lobe |
| Fastening type | Screw hole |
| Dimension | 25mm |
| Surface | Electrogalvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0256 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
For diameter
Item no.
605 16 G
16
1018167
605 19 G
19
1018191
605 20 G
20
1018205
605 25 G
25
1018256
605 32 G
32
1018337
For diameter
605 16 G
Item no.
1018167
For diameter
16
605 19 G
Item no.
1018191
For diameter
19
605 20 G
Item no.
1018205
For diameter
20
605 25 G
Item no.
1018256
For diameter
25
605 32 G
Item no.
1018337
For diameter
32
