Fastening clip 605, medium duty, G
Type 605 19 G
|Item no. 1018191
|EAN 4012195016991
Item no. / Type
For diameter
Smallest selling unit: 100 piece
100piece
piece
Description

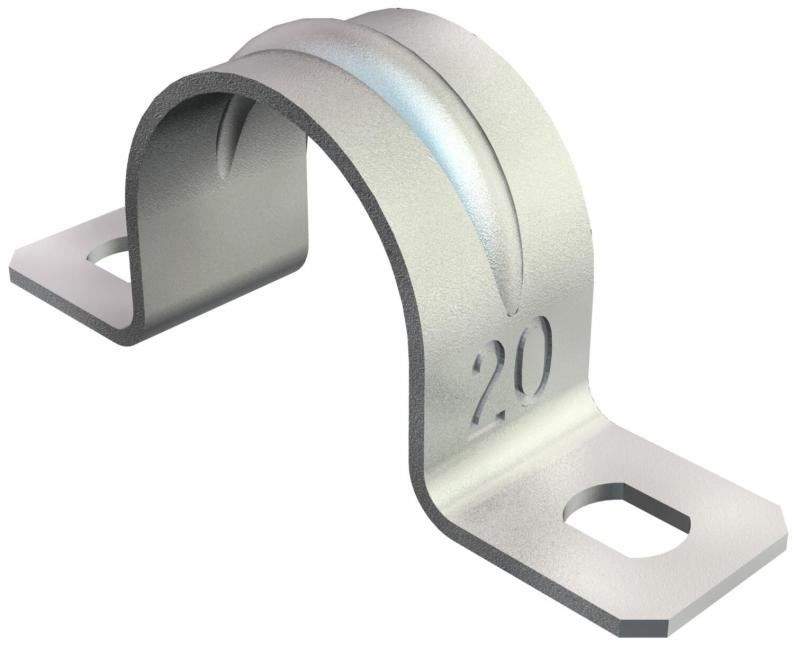

Two lobe fastening clips for cables and pipes.
* Sizes 7 to 12 not suitable for bolt-firing tool.
* Sizes 7 to 12 not suitable for bolt-firing tool.
Technical data
Dimensions
| Length | 47 mm |
|---|---|
| Width | 12 mm |
| Height | 17,5 mm |
| Dimension A | 47 mm |
| Dimension d | 4,5 mm |
| Dimension B | 35 mm |
| Dimension H | 17,5 mm |
| Dimension t | 1 mm |
| Dimension b | 12 mm |
| Dimension e | 6 mm |
| Dimension D | 19 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Material thickness | 1 mm |
|---|---|
| For diameter | 19 |
| Hole size | 4,5 x 6 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Nominal diameter | 19 mm |
| Distance to the wall | no |
| Version for | Two-lobe |
| Fastening type | Screw hole |
| Dimension | 19mm |
| Surface | Electrogalvanized |
| Material | Steel |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0178 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
For diameter
Item no.
605 16 G
16
1018167
605 19 G
19
1018191
605 20 G
20
1018205
605 25 G
25
1018256
605 32 G
32
1018337
