Exit plate FT
Type KAB GR FT | Item no. 6220142 | EAN 4012195807124
Item no. / Type
6220142 / KAB GR FT
Smallest selling unit: 10 piece
10piece
Description
Drop-out plate for mesh cable trays.
The exit plate allows compliance with specific bend radii, thus preventing possible cable breaks. Can be mounted in a lengthwise direction and at the side, can also be arranged next to each other for greater widths.
Technical data

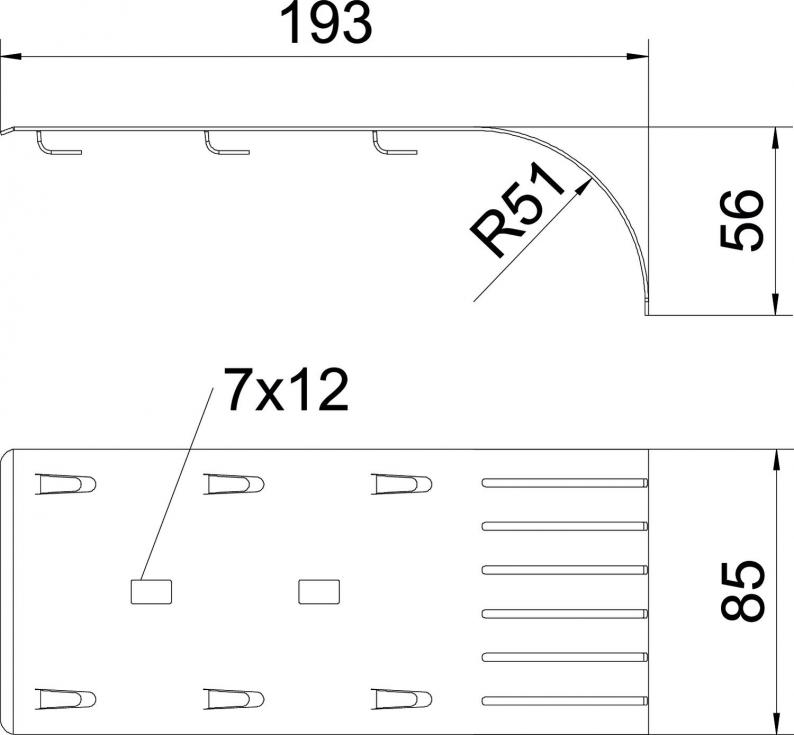

Dimensions
| Length | 193 mm |
|---|---|
| Width | 85 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Dimension | 192x85x51 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4438 kg CO2e / 1 Piece |
