Drop-out FS
Type KAB GR FS | Item no. 6220139 | EAN 4012195677932
Item no. / Type
6220139 / KAB GR FS
Smallest selling unit: 10 piece
10piece
Description

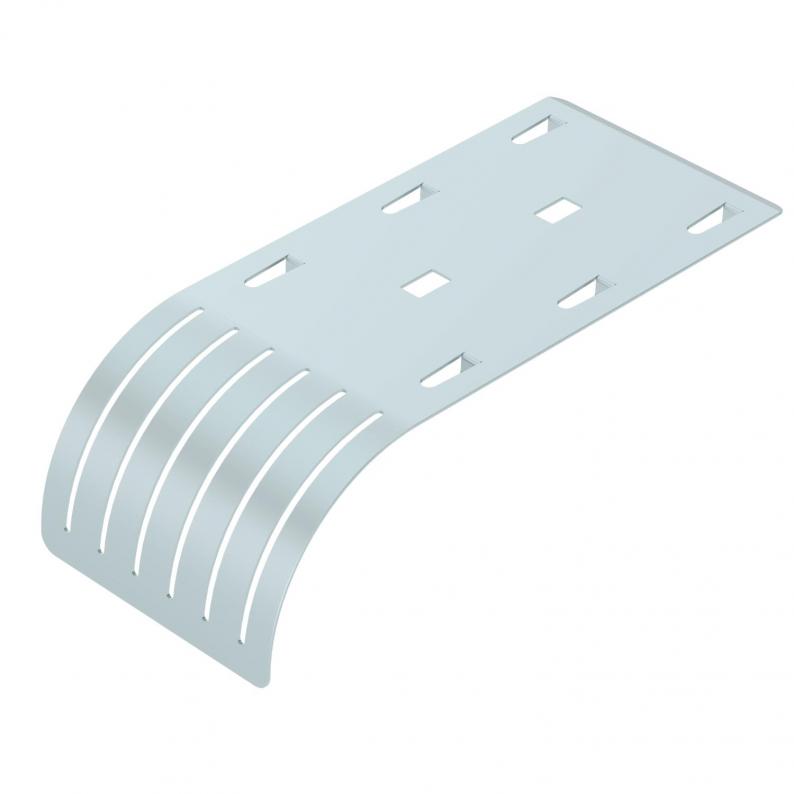

Drop-out plate for mesh cable trays.
The exit plate allows compliance with specific bend radii, thus preventing possible cable breaks. Can be mounted in a lengthwise direction and at the side, can be arranged for greater widths.
Technical data

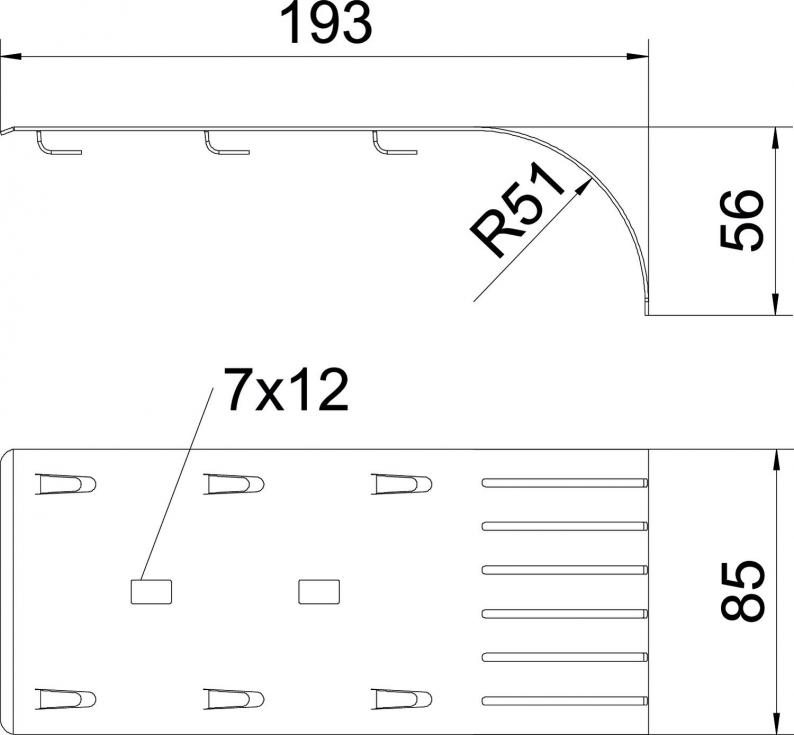

Dimensions
| Length | 193 mm |
|---|---|
| Width | 85 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Dimension | 192x85x51 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4139 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)
