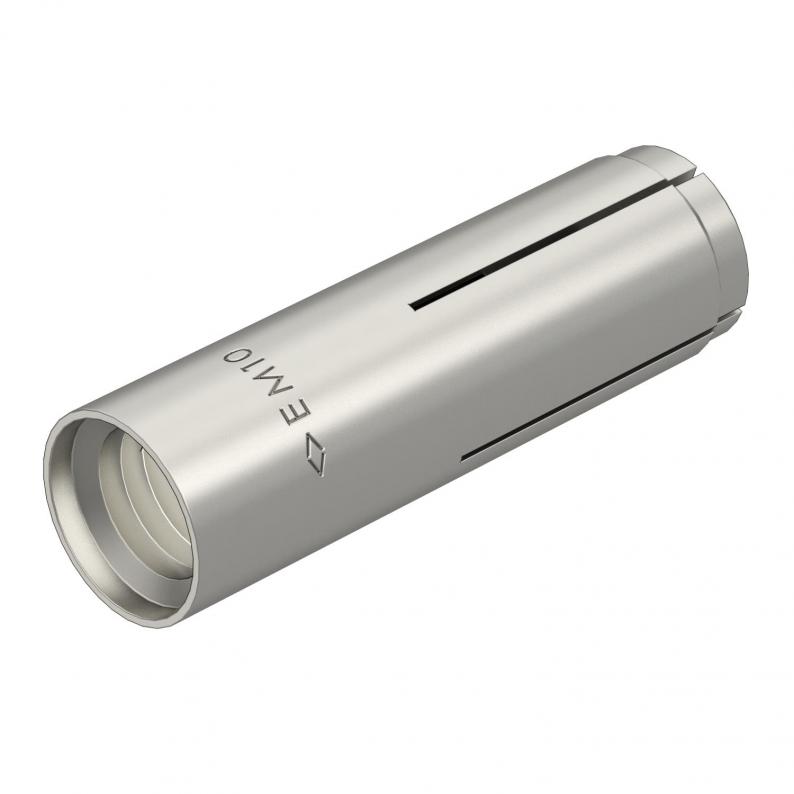

Drop-in anchor E A4
Type E M 8x40 A4 | Item no. 3492912 | EAN 4012196411986
Item no. / Type
Length
Thread
Permitted load range, tension zone
This item is a discontinued product!
Smallest selling unit: 50 piece
50piece
Description
Drop-in anchor for single fixings of non-load-bearing systems in non-cracked concrete as well as for multiple fixings in cracked and non-cracked concrete.
Tested to fire protection standards, fire resistance class R 120 according to European Technical Approval ETA-02/0020 (option 7) and European Technical Approval ETA-05/0116.
Mounting with marking and setting tool.
Tested to fire protection standards, fire resistance class R 120 according to European Technical Approval ETA-02/0020 (option 7) and European Technical Approval ETA-05/0116.
Mounting with marking and setting tool.
Technical data

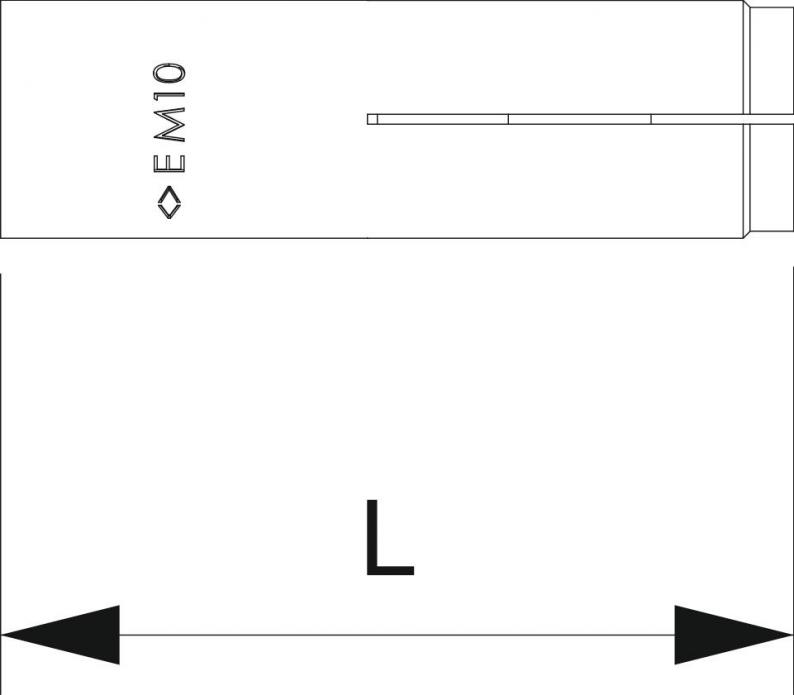

Dimensions
| Length | 40 mm |
|---|---|
| Dimension L | 40 mm |
Technical data
| Thread metric | 8 |
|---|---|
| Thread | M8 |
| Self-drilling | no |
| Approvals available | yes |
| Fastening unit | Miscellaneous |
| Version for | Lightning strike |
| Drill hole diameter, min. | 10 mm |
| Drill hole depth | 40 mm |
| Permitted load range, tension zone | 2 |
| Screw-in depth, max. | 20 mm |
| Screw-in depth, min. | 9 mm |
| Dimension | M8x40 |
| Surface | Bright, treated |
| Material | Stainless steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (1)
Certificates (2)
Instructions and Aid (3)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Thread
Permitted load range, tension zone
Item no.
E M 8x40 A4
40
M8
2
3492912
E M 10x40 A4
40
M10
2
3492922
E M 12x50 A4
50
M12
2,4
3492932
Length
Thread
Permitted load range, tension zone
E M 8x40 A4
Item no.
3492912
Length
40
Thread
M8
Permitted load range, tension zone
2
E M 10x40 A4
Item no.
3492922
Length
40
Thread
M10
Permitted load range, tension zone
2
E M 12x50 A4
Item no.
3492932
Length
50
Thread
M12
Permitted load range, tension zone
2,4
