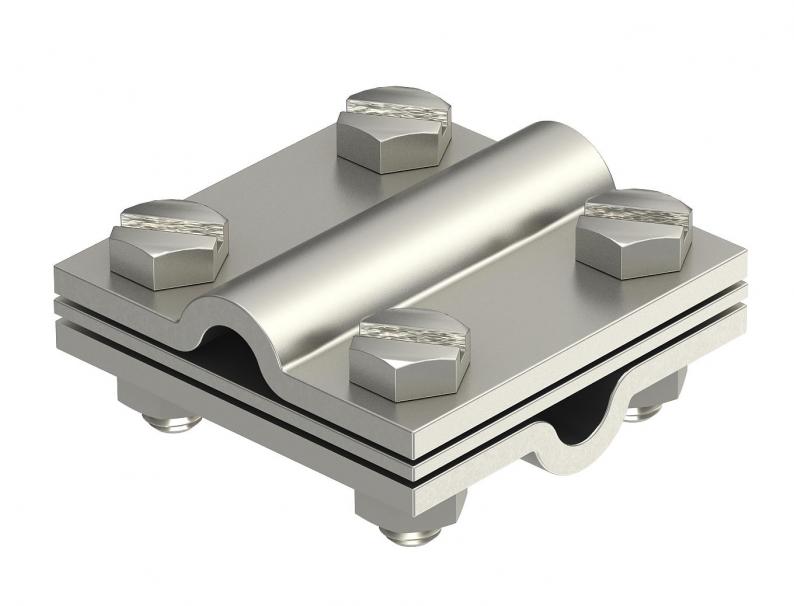

Cross-connector with intermediate plate for Rd 8−10 mm A4
Type 252 8-10 V4A | Item no. 5312318 | EAN 4012195700869
Item no. / Type
5312318 / 252 8-10 V4A
Smallest selling unit: 10 piece
10piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x Rd 8-10 / FL 30
• With adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
• Fit: Rd 8-10 x Rd 8-10 / FL 30
• With adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
Technical data
Technical data
| Intermediate plate | yes |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Cross-connectors |

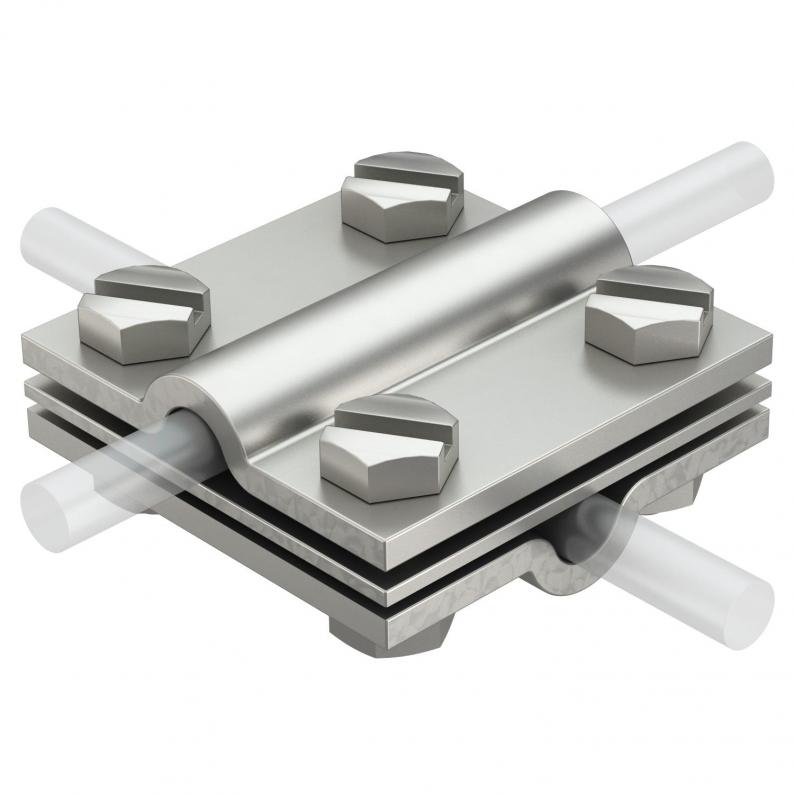

| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | H/100 kA |
| Fit | Rd 8-10 mm |
| Dimension | 8-10mm |
| Material | Stainless steel 1.4571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4815 kg CO2e / 1 Piece |

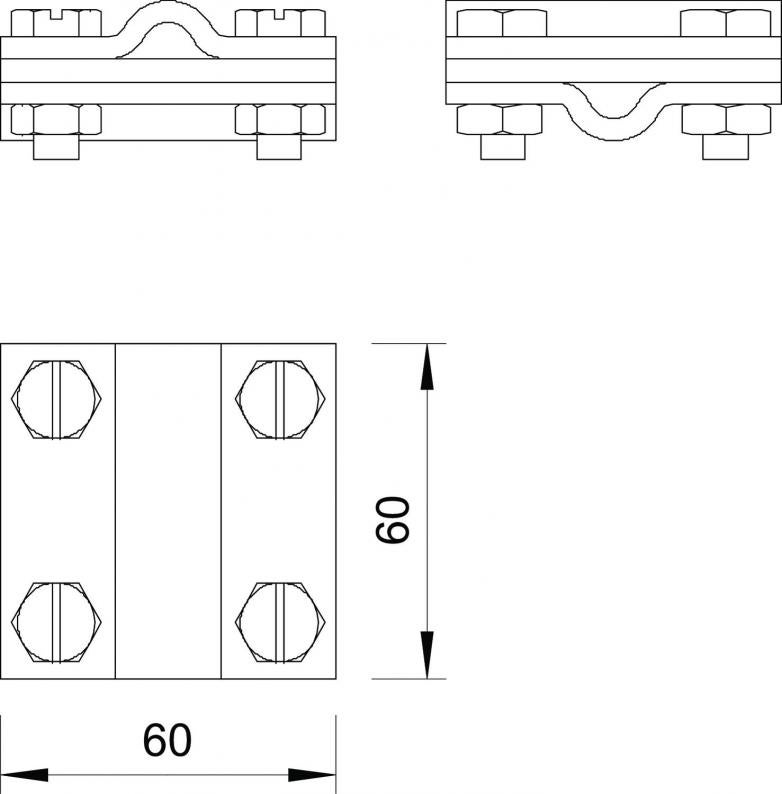

Dimensions
| Dimension A | 60 mm |
|---|---|
| Dimension B | 60 mm |
