Cover for add-on tee FS
Type DFAA 100 FS | Item no. 7128428 | EAN 4012196249015
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description

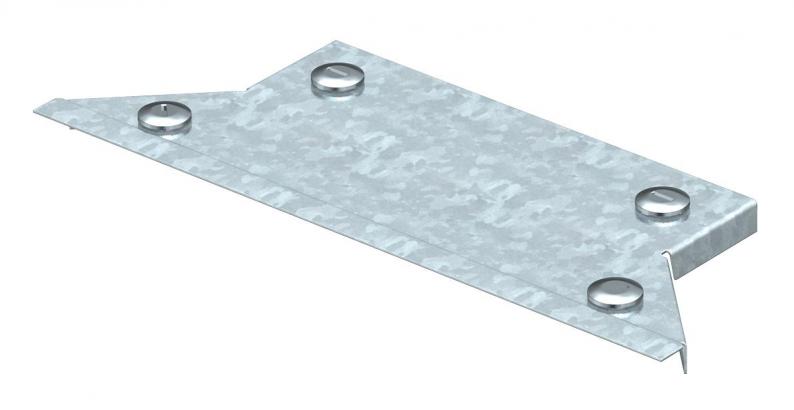

Cover for add-on tee with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data

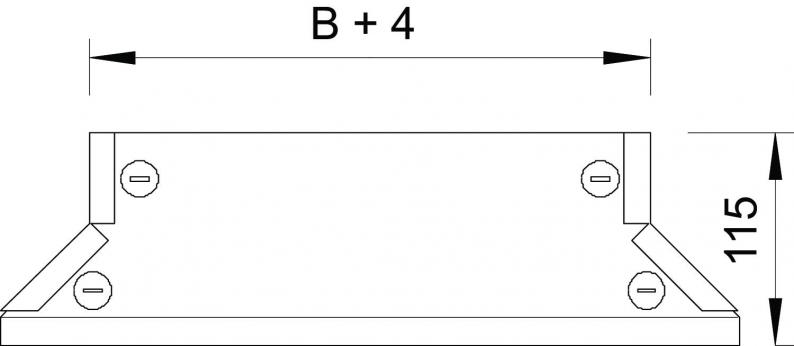

Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 100 mm |
| Dimension H | 15 mm |
Technical data
| Wide-span version | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Number of turn buckles | 4 St. |
| Material thickness | 1 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| Dimension | B100mm |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Plate thickness
Item no.
DFAA 100 FS
100
1
7128428
DFAA 200 FS
200
1
7128444
DFAA 300 FS
300
1
7128460
Width
DFAA 100 FS
Item no.
7128428
Width
100
Plate thickness
1
DFAA 200 FS
Item no.
7128444
Width
200
Plate thickness
1
DFAA 300 FS
Item no.
7128460
Width
300
Plate thickness
1
