Coupling GK-KUP
Type GK-KUP | Item no. 6274650 | EAN 4012195657033
Item no. / Type
6274650 / GK-KUP
Smallest selling unit: 1 PU
1PU
Description

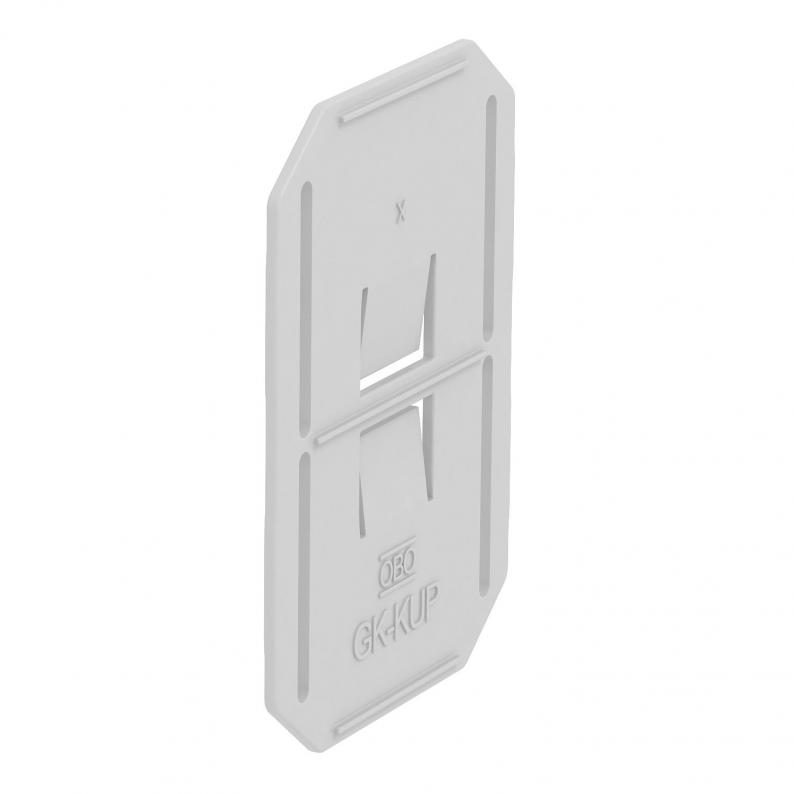

Coupling as trunking connector for tight connection of the trunking sections. A coupling pair is included and pre-mounted for each stock length.
Technical data

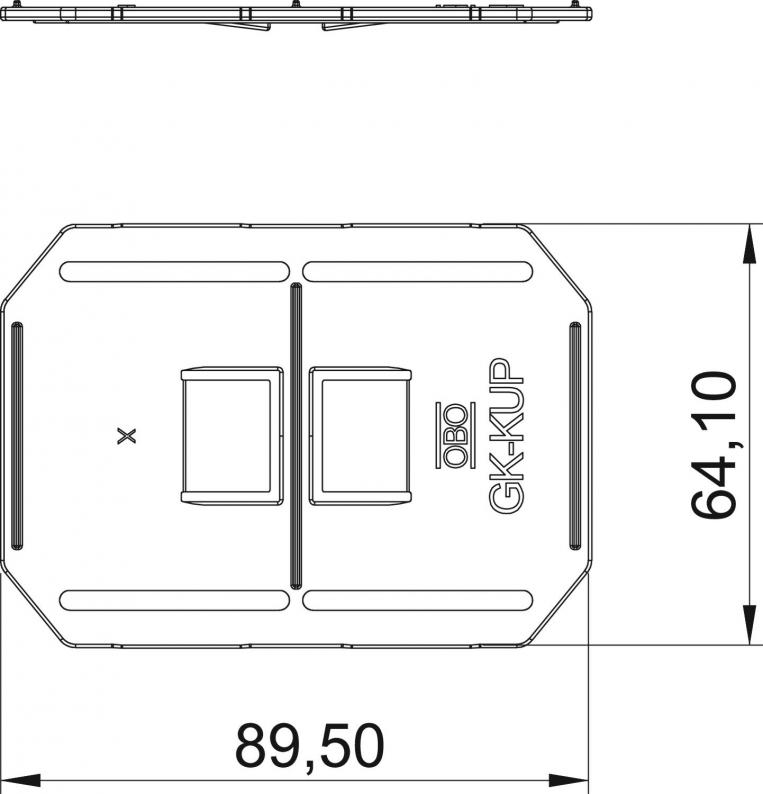

Dimensions
| Length | 89,5 mm |
|---|---|
| Width | 64 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP30 |
| With equipotential bonding | no |
| Protection rating IK code | IK08 |
| Version for | Universal |
| Type | coupling |
| Trunking depth | 70 mm |
| Permitted temperature range, min. | -15 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 64x90mm |
| Material | Acrylonitrile butadiene styrene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1615 kg CO2e / 2 Piece |
