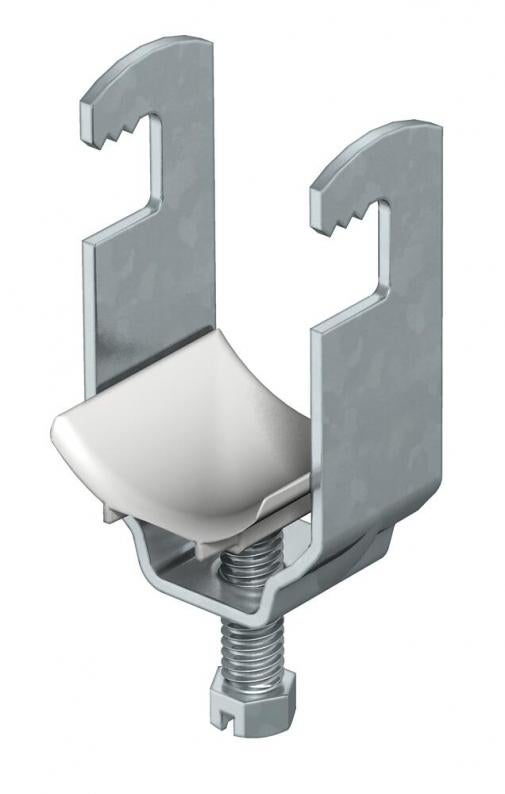

Clamp clip, single, FT plastic pressure trough
Type 2056F 28 FT
|Item no. 1169289
|EAN 4012195070818
Item no. / Type
1169289 / 2056F 28 FT
Max. Tightening torque
3 Nm
Clamping range D, min.
22 mm
Clamping range D, max.
28 mm
This item is a discontinued product!
Smallest selling unit: 100 piece
100piece
piece
Description
Suitable for flat, bracket and U irons of 4–12 mm material thickness.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Technical data
Technical data
| For pipe diameter, min. | 25 mm |
|---|---|
| For pipe diameter, max. | 25 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Flat profile |
| for 1 cable H | 60 mm |
| for 1 cable L | 34 |
| for 2 cable H | 90 mm |
| for 2 cable L | 47 mm |
| for 3 cable L | 47 mm |
| for 3 cable H | 120 mm |
| Clamping range D, min. | 22 mm |
| Clamping range D, max. | 28 mm |
| Dimension | 22-28mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |

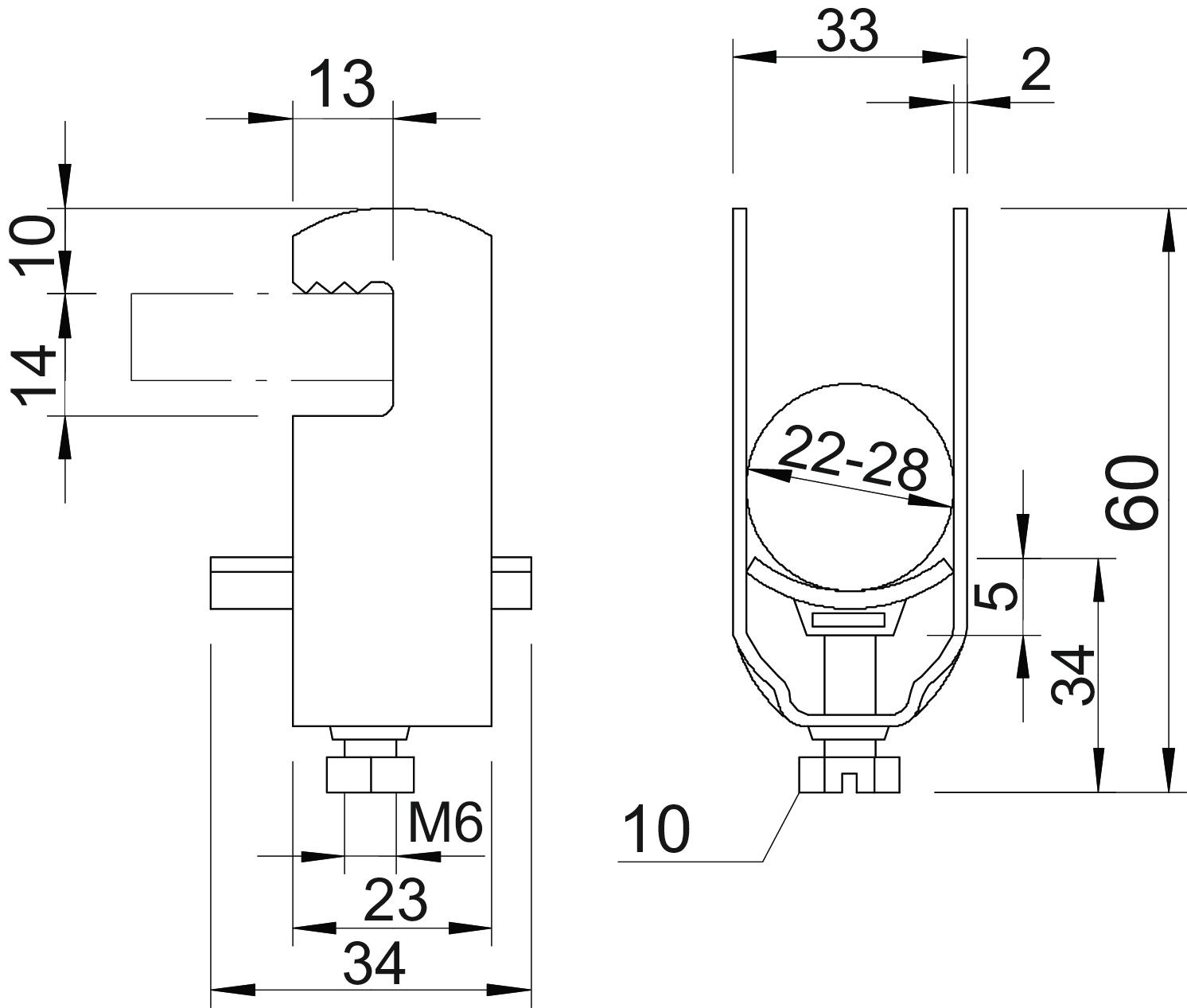

Dimensions
| Dimension L | 34 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 33 mm |
| Dimension H | 60 mm |
| Dimension t | 2 mm |
| Dimension C | 34 mm |
| Dimension x | 5 mm |
| Dimension G (mm) | M6 |
| Dimension E | 13 mm |
Environmental Data
0,1199 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1199 kg CO₂e / 1 Piece |
|---|
