Clamp clip, single, A2 plastic pressure trough
Type 2056U 16 A2
|Item no. 1178512
|EAN 4012195074656
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
Suitable for all C profile rails with slot width 18 mm and 22 mm.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Technical data
Technical data
| For pipe diameter, min. | 16 mm |
|---|---|
| For pipe diameter, max. | 16 mm |
| for rail with slot width (with interval), min. | 18 mm |
| for rail with slot width (with interval), max. | 22 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | Untreated |
| Material addition | Rustproof steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profile rail |
| for 1 cable H | 46 mm |
| for 1 cable L | 34 |
| Clamping range D, min. | 12 mm |
| Clamping range D, max. | 16 mm |
| Dimension | 12-16mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2136 kg CO₂e / 1 Piece |

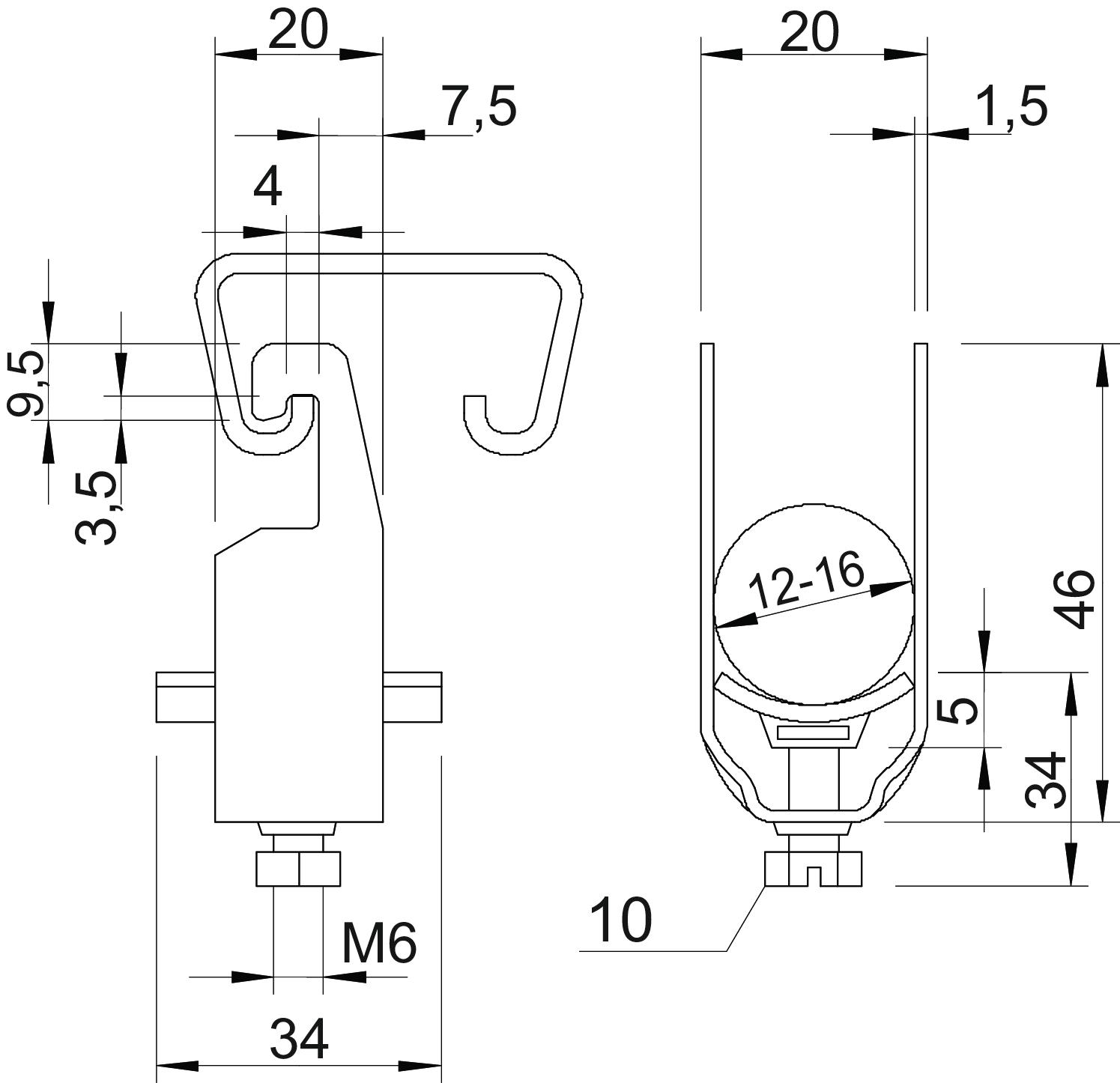

Dimensions
| Dimension L | 34 mm |
|---|---|
| Dimension A | 20 mm |
| Dimension B | 20 mm |
| Dimension H | 46 mm |
| Dimension t | 1,5 mm |
| Dimension C | 34 mm |
| Dimension x | 5 mm |
| Dimension G (mm) | M6 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (2)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056U 12 A2
3
8
12
1178504
2056U 16 A2
3
12
16
1178512
2056U 22 A2
3
16
22
1178520
2056U 28 A2
3
22
28
1178539
2056U 34 A2
5
28
34
1178547
2056U 40 A2
5
34
40
1178555
2056U 46 A2
5
40
46
1178563
2056U 52 A2
5
46
52
1178571
2056U 58 A2
5
52
58
1178598
2056U 64 A2
5
58
64
1178601
2056U 70 A2
5
64
70
1178628
2056U 76 A2
5
70
76
1178636
