Clamp clip, single, A2 metal pressure trough
Type 2056 M 12 A2
|Item no. 1159712
|EAN 4012195668190
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
Smallest selling unit: 50 piece
50piece
piece
Description
Suitable for all C profile rails with slot width 16–17 mm.
Clip, bolt and pressure trough all made of rust-proof stainless steel.
Clip, bolt and pressure trough all made of rust-proof stainless steel.
Technical data
Technical data
| for rail with slot width (with interval), min. | 16 mm |
|---|---|
| for rail with slot width (with interval), max. | 17 mm |
| Impact-resistant | no |
| Halogen-free | no |
| With plastic trough | no |
| With metal trough | yes |
| Number of cables/pipes | 1 |
| Surface addition | Untreated |
| Material addition | Rustproof steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profile rail |
| for 1 cable H | 44 mm |
| for 1 cable L | 32,5 |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 12 mm |
| Dimension | 8-12mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| With counter-trough | no |
| Material of trough | Rustproof steel |
| Material quality of trough | Stainless steel 304 (1.4301) |

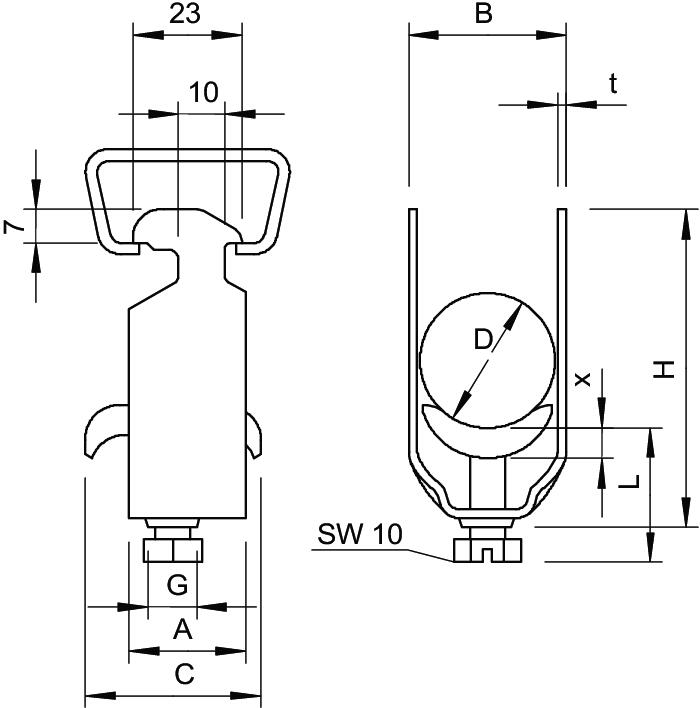

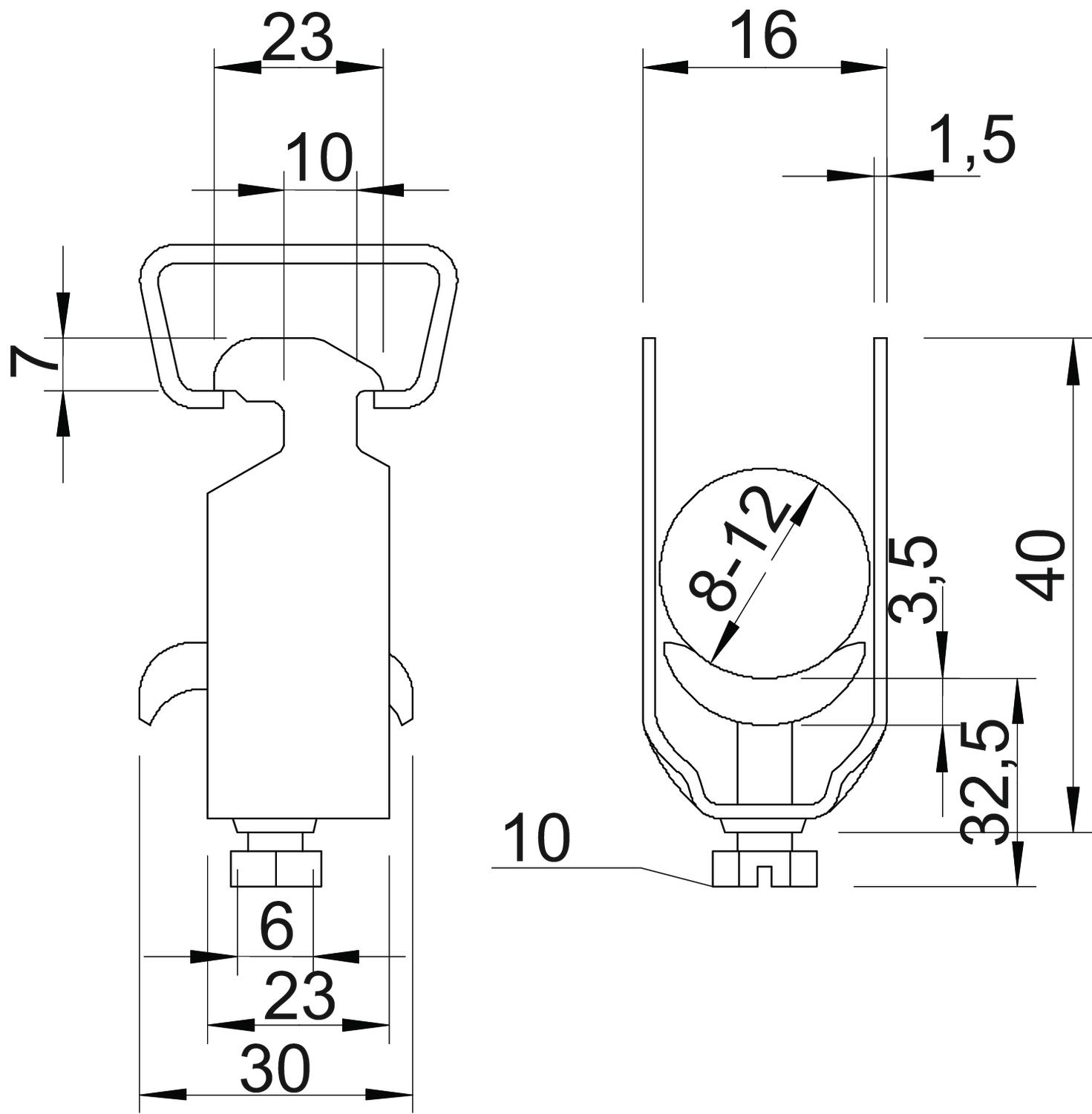

Dimensions
| Dimension L | 32,5 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 16 mm |
| Dimension H | 44 mm |
| Dimension t | 1,5 mm |
| Dimension C | 30 mm |
| Dimension x | 3,5 mm |
| Dimension G (mm) | M6 |
Environmental Data
0,187 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,187 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056 M 12 A2
3
8
12
1159712
2056 M 22 A2
3
16
22
1159722
2056 M 28 A2
3
22
28
1159728
2056 M 34 A2
5
28
34
1159734
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056 M 12 A2
Item no.
1159712
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056 M 22 A2
Item no.
1159722
Max. Tightening torque
3
Clamping range D, min.
16
Clamping range D, max.
22
2056 M 28 A2
Item no.
1159728
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
2056 M 34 A2
Item no.
1159734
Max. Tightening torque
5
Clamping range D, min.
28
Clamping range D, max.
34
