Ceiling bracket FT
Type AHB 100 FT | Item no. 6363903 | EAN 4012196881413
Item no. / Type
Width
Height
for width max.
Hole diameter
F in kN ceiling
Colour
zinc
Smallest selling unit: 1 piece
1piece
Description

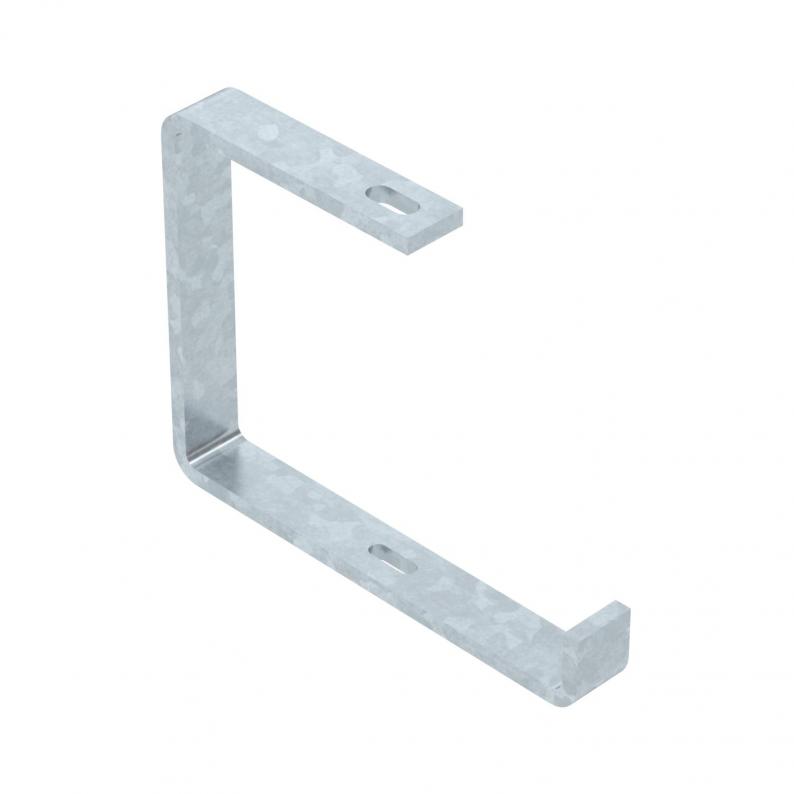

Suspension bracket for cable support systems.
Technical data
Dimensions
| Length | 30 mm |
|---|---|
| Width | 127 mm |
| Height | 180 mm |
| Dimension B | 115 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Material thickness | 6 mm |
| for width max. | 100 mm |
| for width min. | 100 |
| Adjustable | no |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Hole diameter | 11 mm |
| Suitable for metric threaded rod | 10 |
| Version for | Suspension bracket (C clamp) |
| Tray fastening | Screw-on |
| F in kN ceiling | 0,6 kN |
| Dimension | B100mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2084 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (3)
Product images (3)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Width
Height
for width max.
Hole diameter
F in kN ceiling
Colour
Item no.
AHB 100 FT
127
180
100
11
0,6
zinc
6363903
AHB 150 FT
181
180
150
11
0,6
zinc
6363907
AHB 200 FT
231
180
200
11
0,6
zinc
6363911
AHB 300 FT
331
180
300
11
0,35
zinc
6363938
Width
for width max.
F in kN ceiling
AHB 100 FT
Item no.
6363903
Width
127
Height
180
for width max.
100
Hole diameter
11
F in kN ceiling
0,6
Colour
zinc
AHB 150 FT
Item no.
6363907
Width
181
Height
180
for width max.
150
Hole diameter
11
F in kN ceiling
0,6
Colour
zinc
AHB 200 FT
Item no.
6363911
Width
231
Height
180
for width max.
200
Hole diameter
11
F in kN ceiling
0,6
Colour
zinc
AHB 300 FT
Item no.
6363938
Width
331
Height
180
for width max.
300
Hole diameter
11
F in kN ceiling
0,35
Colour
zinc
