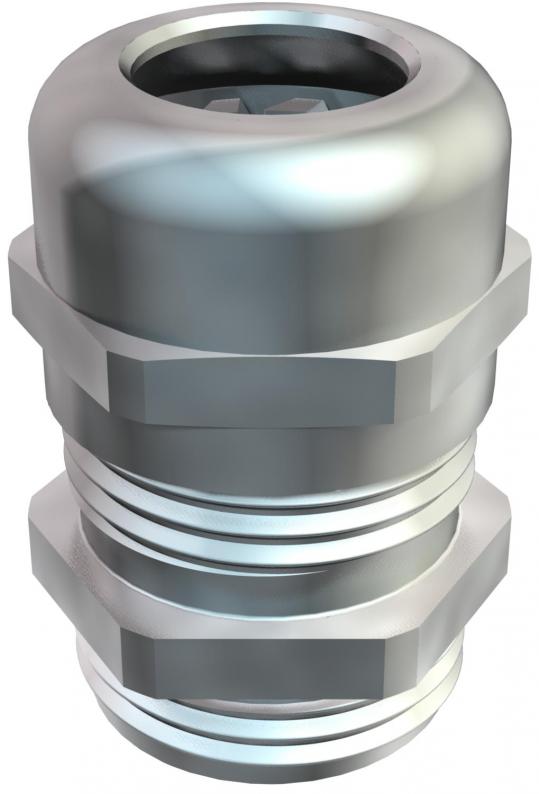

Cap nut cable gland, PG thread, nickel-plated
Type V-TEC PG7 MS
Item no. 2085607
EAN 4012195189916




Item no. / Type
Thread
Smallest selling unit: 50 piece
50piece
piece
Description
Cable gland in cap nut design with large sealing area as well strain relief and torsion protection for high sealing demands, with PG connection thread to DIN 40430. Clamping unit made from polyamide, sealing ring made from chloroprene-nitrile rubber, with preassembled O ring on the connection thread.
Protection rating IP68 at 5 bar/1 h, tested to DIN EN 62444.
Connection thread length "normal", based on DIN 46320.
* Prices according to DEL notation.
To prevent damage caused by differences in material behaviour, avoid using a mix of materials.
Use products made from polyamide (cable glands) exclusively with polyamide accessory parts (e.g. lock nuts, reducers, expansions, etc.) Use products made from polystyrene exclusively with polystyrene accessory parts.
Protection rating IP68 at 5 bar/1 h, tested to DIN EN 62444.
Connection thread length "normal", based on DIN 46320.
* Prices according to DEL notation.
To prevent damage caused by differences in material behaviour, avoid using a mix of materials.
Use products made from polyamide (cable glands) exclusively with polyamide accessory parts (e.g. lock nuts, reducers, expansions, etc.) Use products made from polystyrene exclusively with polystyrene accessory parts.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | no |
| Fibre-glass reinforced | no |
| explosion-proof | no |
| Strain relief option | yes |
| Protection rating | IP68 |
| Thread | Pg 7 |
| For Ex zone | Without |
| Thread type | PG |
| Bend protection | no |
| With locknut | no |
| Sealing insert, multiple | no |
| Flat cable gland | no |
| Type of seal | Sealing ring |
| Splittable gland | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Nominal thread size | 7 |
| Sealing area D, min. | 2,5 mm |
| Sealing area D, max. | 6,5 mm |
| WAF | 14 |
| Version for | Straight |
| ROHS-conformant | Exempt |
| Thread length | 5 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 100 °C |
| Dimension | PG7 |
| Surface | Nickel-plated |
| Material | Brass |
| Product series | V-TEC |
Dimensions
| Dimension L max. | 20 mm |
|---|---|
| Dimension L1 | 5 mm |
| Dimension L2 | 3 mm |
| Dimension L3 | 12 mm |
| Dimension E | 15,5 mm |
Environmental Data
0,0512 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0512 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0512 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Thread
Sealing insert, multiple
Item no.
V-TEC PG7 MS
Pg 7
no
2085607
V-TEC PG9 MS
Pg 9
no
2085615
V-TEC PG11 MS
Pg 11
no
2085623
V-TEC PG13 MS
Pg 13,5
no
2085631
V-TEC PG16 MS
Pg 16
no
2085658
V-TEC PG21 MS
Pg 21
no
2085666
V-TEC PG29 MS
Pg 29
no
2085674
V-TEC PG36 MS
Pg 36
no
2085682
V-TEC PG42 MS
Pg 42
no
2085690
V-TEC PG48 MS
Pg 48
no
2085704
