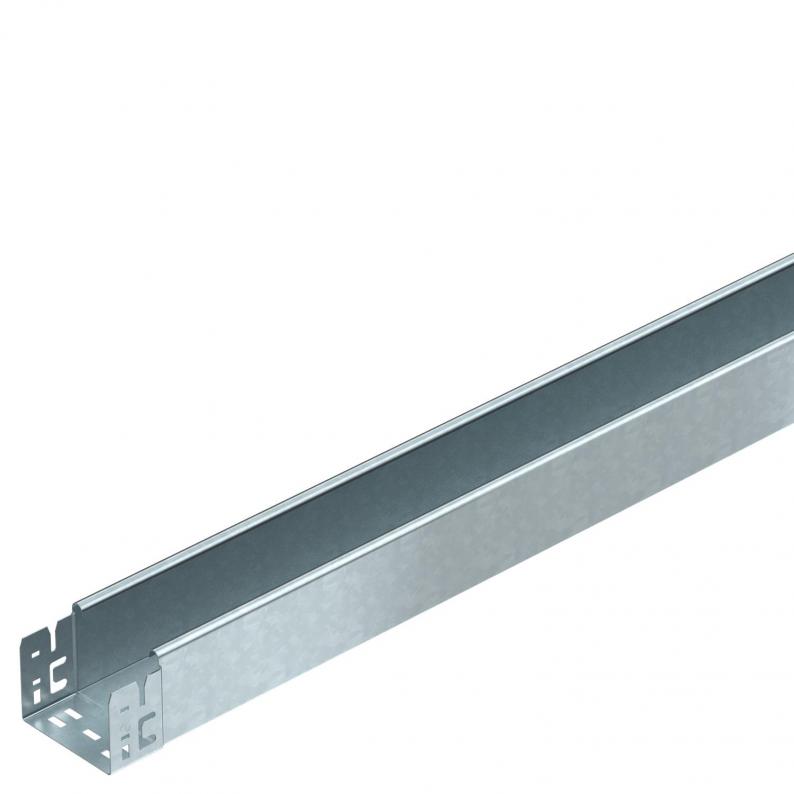

Cable tray MKS-Magic® 85, unperforated FT

Cable tray MKS-Magic® 85, unperforated FT

Type MKSMU 810 FT | Item no. 6059325 | EAN 4012195831693

Show all variants
Item no. / Type
Length
Width
Height
Plate thickness
Maintain electrical functions
no
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

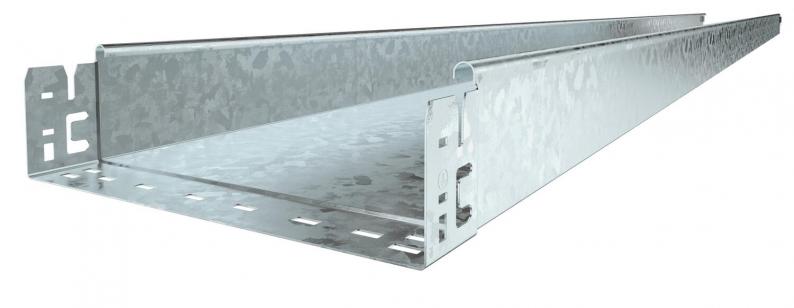

Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Continuous equipotential bonding is guaranteed without additional components.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3050 mm
Width100 mm
Height85 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section83 cm²
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseno
NATO hole patternno
Usable cross-section8300 mm²
With coverno
Dimension85x100x3050
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Usable length3000 mm
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate5,5723 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m1,1 kN/m
Support spacing 2.5 m0,5 kN/m
Support spacing 1.75 m1,4 kN/m
Support spacing 1.5 m1,75 kN/m
Load diagram, cable tray, type MKSMU 85

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories

Item no. 7027431

Cross-over 85 FT
Type
RK 810 FT

Smallest selling unit: 1 piece

Type
DRL 100 FT

Smallest selling unit: 3 m

Type
DRL 100 DD

Smallest selling unit: 3 m
