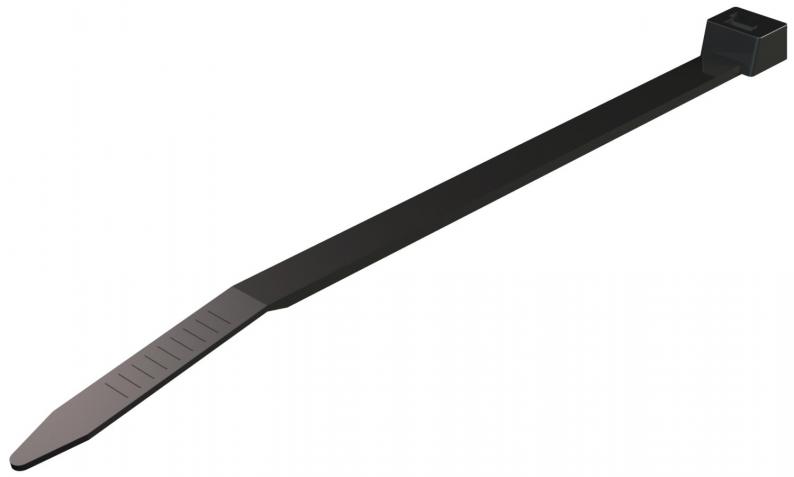

Cable tie, black, UV and weather-resistant
Type 565 7.6x380 SWUV | Item no. 2331924 | EAN 4012196417353
Item no. / Type
2331924 / 565 7.6x380 SWUV
Colour
Black
Smallest selling unit: 100 piece
100piece
Description
Cable ties are used for quick, uncomplicated fixing or bundling of cables and pipes to cable support systems or other mounting structures.
Technical data

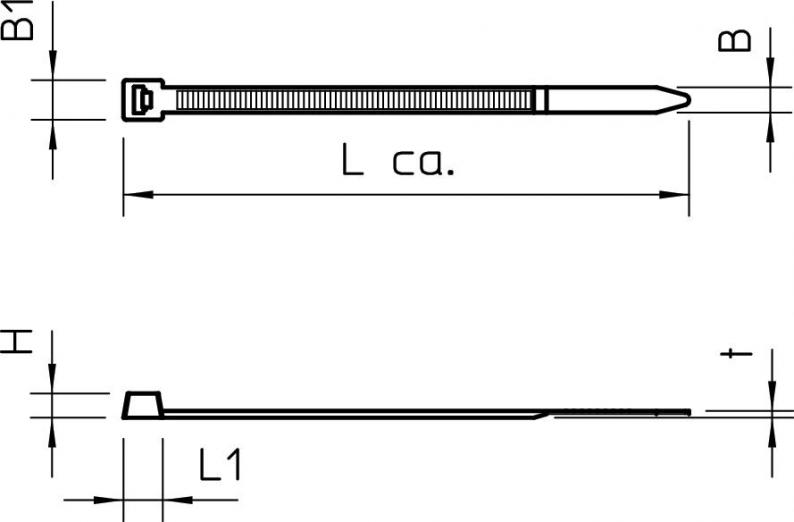

Dimensions
| Length | 380 mm |
|---|---|
| Width | 7,6 mm |
| Height | 2 mm |
| Dimension L | 380 mm |
| Dimension B | 7,6 mm |
| Dimension t | 1,8 mm |
Technical data
| Halogen-free | yes |
|---|---|
| UV-resistant | yes |
| Max. Bundle diameter | 105 mm |
| Transparent | no |
| VG approval | no |
| MIL approval | no |
| UL approval | yes |
| Releasable lock | no |
| Strip closure | Plastic tongue/tab |
| Labelling area | Without |
| Mounting temperature, max. | 90 °C |
| Min. mounting temperature | -30 °C |
| Reflective | no |
| Tensile strength | 530 N |
| Version for | Externally toothed |
| Fastening type | Without |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -30 °C |
| Dimension | 7,6x380mm |
| Material | Polyamide |
| Colour | Black |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0207 kg CO₂e / 1 Piece |
