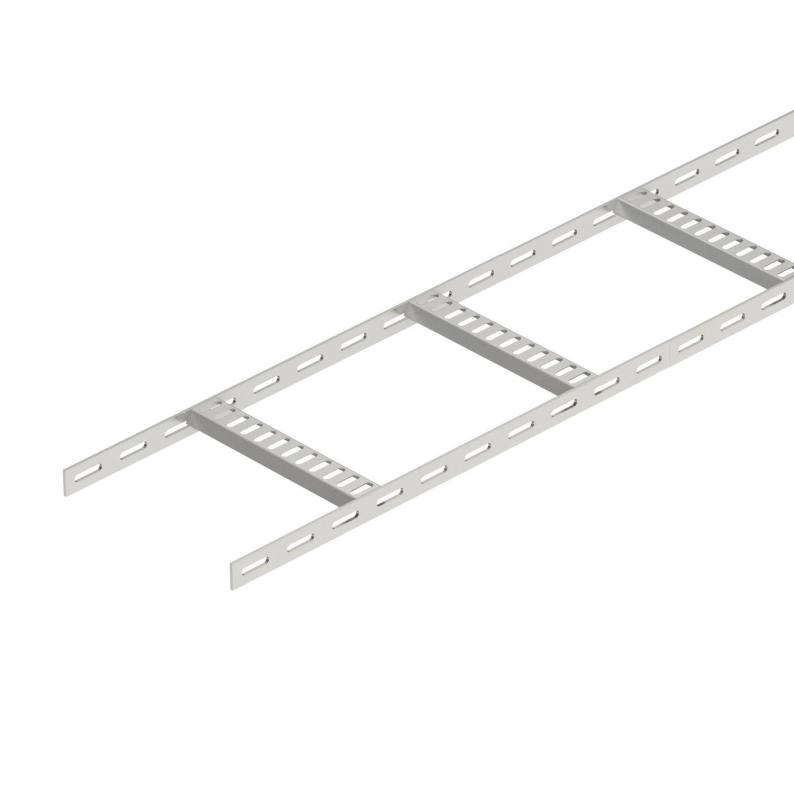

Cable ladder with trapezoidal rungs, light duty A4
Type SL 42 200 A4 | Item no. 7099708 | EAN 4012196509829




Item no. / Type
7099708 / SL 42 200 A4
Maintain electrical functions
no
This item is a discontinued product!
Smallest selling unit: 2 m
2m
Description
Shipbuilding cable ladder with perforated side rail of side height 25 mm with welded, perforated trapezoidal rungs which open in a downwards direction. Load tested according to IEC in conjunction with connector, type SLV.
The shipbuilding cable ladder is also available in unpainted steel on request.
Technical data

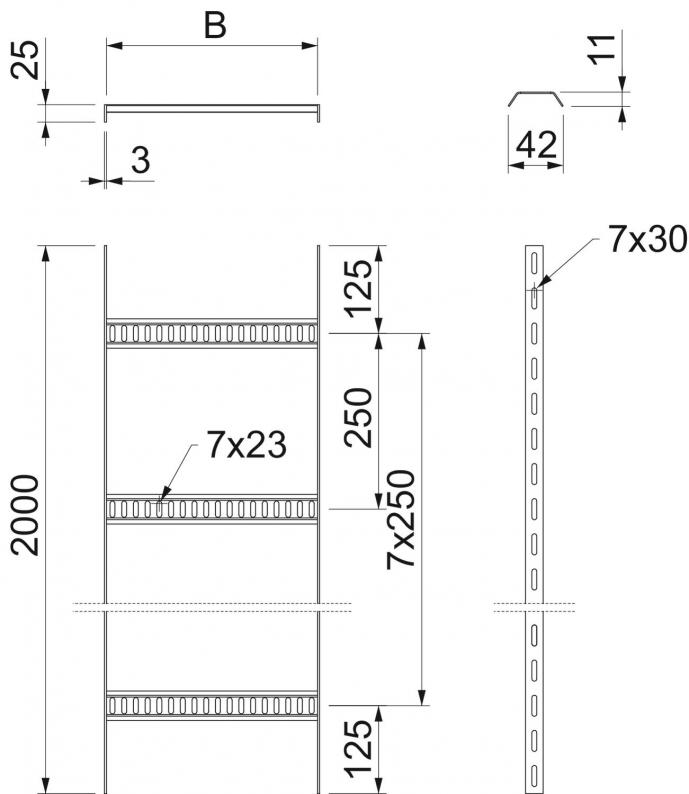

Dimensions
Length | 2000 mm |
---|---|
Width | 200 mm |
Height | 25 mm |
Dimension B | 206 mm |
Technical data
Maintain electrical functions | no |
---|---|
Side perforation | yes |
Wide-span version | no |
Rustproof steel, pickled | yes |
Rung distance | 250 mm |
Version of the rungs | Profile perforated |
Side rail version | Flat profile |
Fastening of rung | Welded |
Rail thickness | 3 mm |
Dimension | 25x206x2000 |
Surface | Bright, treated |
Material | Stainless steel 1.4571 |
Colour | stainless steel |
CO2 Footprint (GWP) Cradle-to-Gate | 7,7322 kg CO₂e / 1 Meter |
Loads
Support spacing 2.0 m | 0,25 kN/m |
---|---|
Support spacing 1.0 m | 1,6 kN/m |
Support spacing 1.5 m | 0,65 kN/m |


Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Load scheme during testing
