Cable ladder LG 110, 3 m VS FT

Cable ladder LG 110, 3 m VS FT

Type LG 112 VS 3 FT | Item no. 6216423 | EAN 4012195065210

Show all variants
Item no. / Type
Length
Width
Rail thickness
Maintain electrical functions
no
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

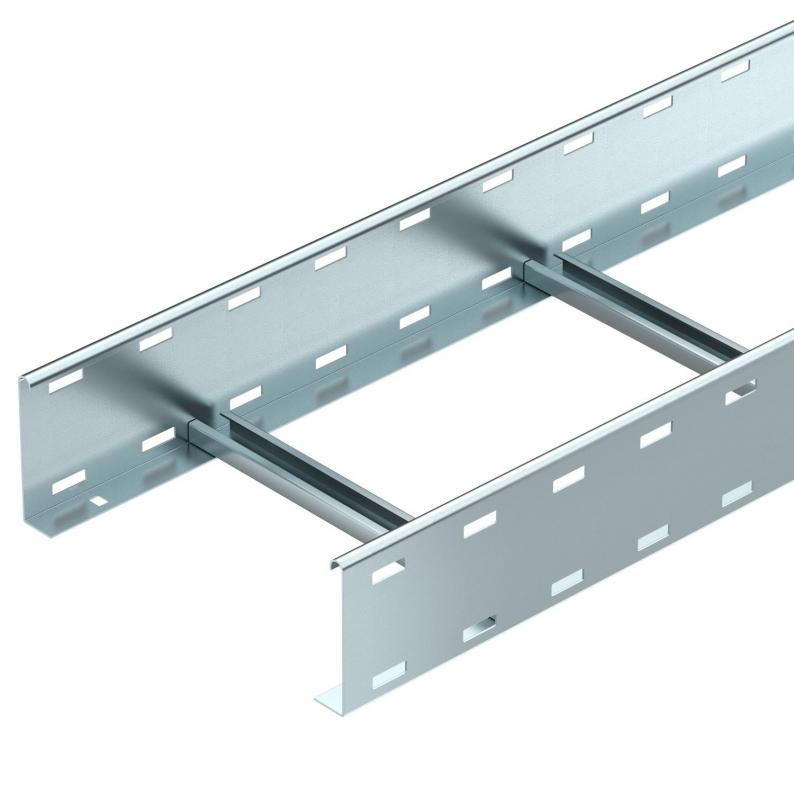

Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

The cable ladder is shipped folded up.

You can find the appropriate type 2056 clamp clip in the vertical ladder systems section.

  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

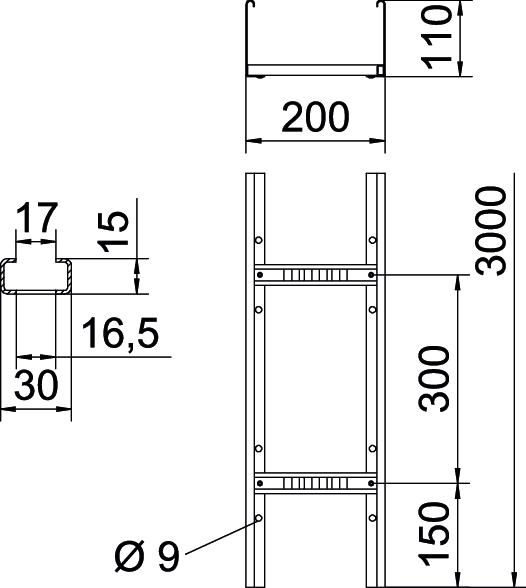

Dimensions

Length3000 mm
Width200 mm
Height110 mm
Dimension B200 mm
Rung slot dimension16,50

Technical data

Maintain electrical functionsno
Side perforationyes
Wide-span versionno
Usable cross-section188 cm²
Rustproof steel, pickledno
Usable cross-section18800 mm²
Rung distance300 mm
Version of the rungsProfile perforated
Side rail versionFlat profile
Fastening of rungBlind riveted
Dimension110x200x3000
Rail thickness1,5 mm
Dimension110x200x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate8,764 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m3,1 kN/m
Support spacing 2.5 m2 kN/m
Support spacing 3.0 m1,4 kN/m
Support spacing 3.5 m0,9 kN/m
Support spacing 4.0 m0,65 kN/m
Support spacing 4.5 m0,55 kN/m
Support spacing 5.0 m0,5 kN/m
Support spacing 6.0 m0,15 kN/m
Load diagram, cable ladder, type LG 110 VS

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width
