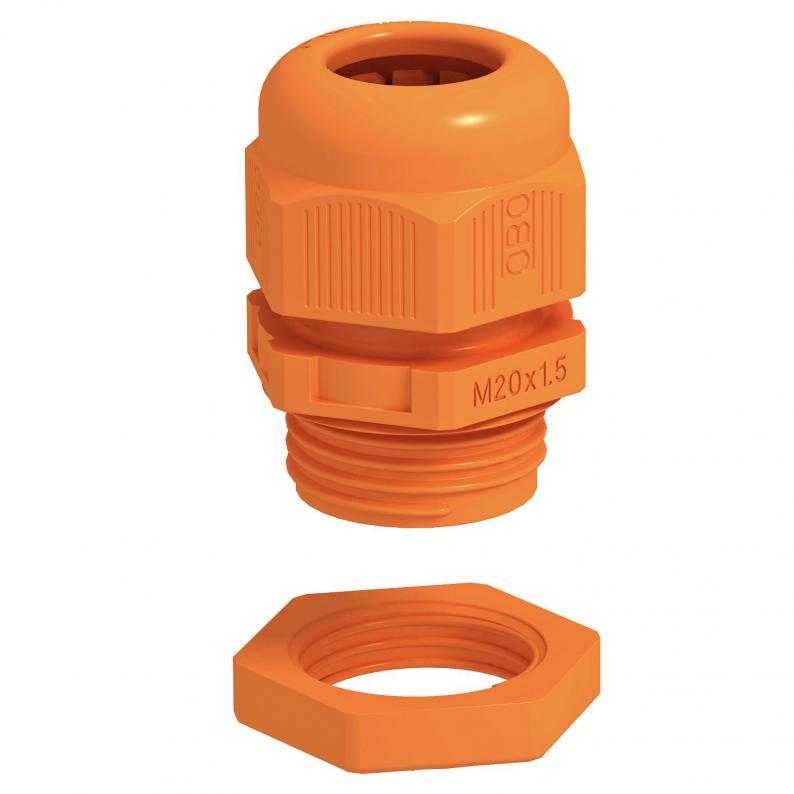

Cable gland with locknut as a set
Type V-TEC VM20+ OR | Item no. 7205660 | EAN 4012196028238
Item no. / Type
Thread
Sealing insert, multiple
no
Colour
Pastel orange; RAL 2003
Smallest selling unit: 10 piece
10piece
Description
Robust cap nut cable gland with metric connecting thread to IEC 423, including pre-mounted locknut.
For high tightness requirements. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, no connection thread sealing ring required.
VDE-tested according to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr.
For maintenance of electrical function according to DIN 4102 Part 12 in connection with the closed junction boxes of the FireBox T series.
Colour: Pastel orange.
For high tightness requirements. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, no connection thread sealing ring required.
VDE-tested according to DIN EN 50262, protection rating IP68 at 5 bar for 1 hr.
For maintenance of electrical function according to DIN 4102 Part 12 in connection with the closed junction boxes of the FireBox T series.
Colour: Pastel orange.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | yes |
| Fibre-glass reinforced | no |
| Strain relief option | yes |
| Protection rating | IP68 |
| Thread | M20 x 1,5 |
| For Ex zone | Without |
| Thread type | Metric |
| Bend protection | no |
| With locknut | yes |
| Sealing insert, multiple | no |
| Flat cable gland | no |
| Splittable gland | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Thread increase | 1,5 mm |
| Sealing area D, max. | 13 mm |
| Sealing area D, min. | 6 mm |
| WAF | 24 |
| Dimension E1 (mm) | 27 mm |
| Dimension E2 | 27 mm |
| Thread length | 9 mm |
| WAF 1 | 24 mm |
| WAF 2 | 24 mm |
| Unstable torque | 3,8 Nm |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | M20 |
| Material | Polyamide |
| Colour | Pastel orange; RAL 2003 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0553 kg CO2e / 1 Piece |
Dimensions
| Dimension G | M20 x 1,5 mm |
|---|---|
| Dimension L min. | 23,5 mm |
| Dimension L max. | 30,5 mm |
| Dimension L1 | 9 mm |
| Dimension L2 | 5 mm |
| Dimension L3 | 6 mm |
| Dimension E | 27 mm |
